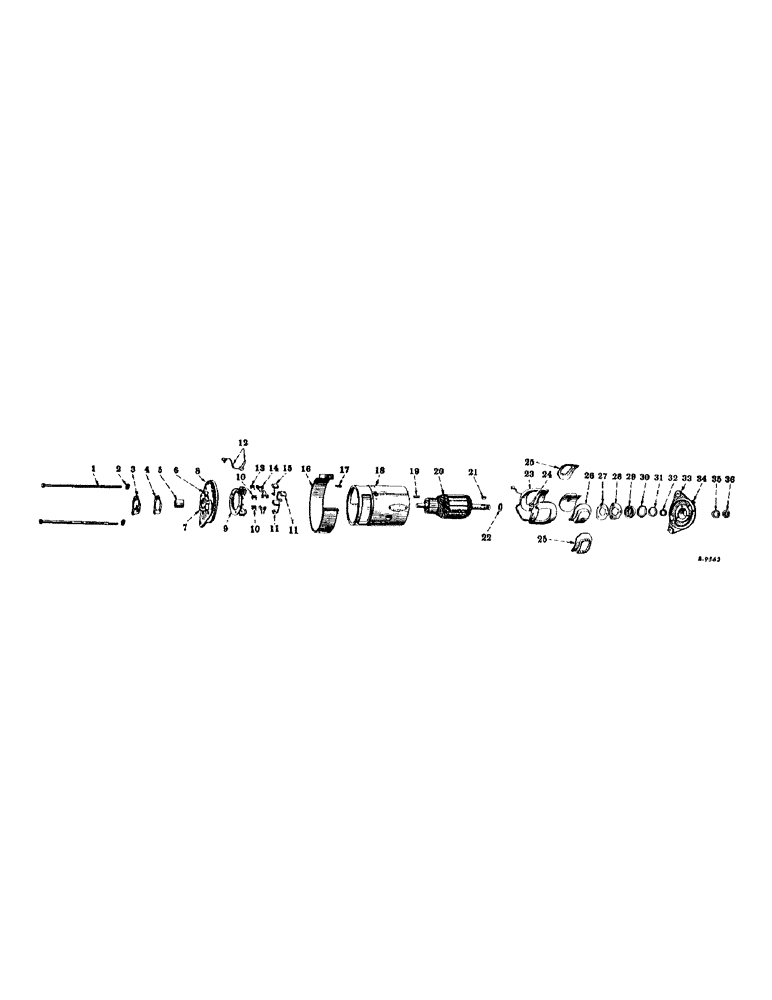

Запчасти Case IH FARMALL M (128) - ELECTRICAL SYSTEM, DIESEL ENGINE, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

355694R91

SPARE PART GENERATOR, complete (Mfr. no. 1100964)

1шт.

103812A1R

REMAN-GENERATOR

Generator

1шт.

103812A1C

CORE-GENERATOR

Return Number

1шт.

103813A1R

REMAN-GENERATOR

3 Brush

1шт.

103813A1C

CORE-GENERATOR

Return Number, Generator

1шт.

1

THRU BOLT (Mfr. no. 815018)

1шт.

2

THRU BOLT LOCKWASHER (Mfr. no. 120638)

2шт.

3

END COVER PLATE (Mfr. no. 820524)

1шт.

.

END COVER PLATE SCREW (Mfr. no. 1886496)

3шт.

.

END COVER PLATE LOCKWASHER (Mfr. no. 121841)

3шт.

4

END COVER GASKET (Mfr. no. 817220)

1шт.

5

COMMUTATOR END BUSHING (Not serviced separately order ref. no. 8)

1шт.

6

DRIVE END OILER (Mfr. no. 1880635)

1шт.

.

COMMUTATOR END WICK (Mfr. no. 804076)

1шт.

7

OIL HOLE PLUG (Commutator end) (Mfr. no. 1911097)

1шт.

8

COMMUTATOR END FRAME WITH PIN, complete (Mfr. no. 1913564)

1шт.

9

BRUSH PLATE (Mfr. no. 1913565)

1шт.

.

BRUSH PLATE SCREW (Mfr. no. 1886496)

3шт.

.

BRUSH PLATE LOCKWASHER (Mfr. no. 121841)

3шт.

10

MAIN BRUSH SPRING (Mfr. no. 1850760)

2шт.

11

MAIN BRUSH (Mfr. no. 1866148)

2шт.

.

BRUSH LEAD SCREW (Mfr. no. 132688)

3шт.

.

BRUSH LEAD ATTACHING SCREW LOCKWASHER (Mfr. no. 1904377)

3шт.

12

STUD AND LEAD, complete (Mfr. no. 1858754)

1шт.

.

INSULATING TERMINAL STUD BUSHING (Mfr. no. 1885090)

2шт.

.

TERMINAL STUD NUT (Mfr. no. 121743)

4шт.

.

STUD (Mfr. no. 1858751)

1шт.

13

THIRD BRUSH SPRING (Mfr. no. 1850767)

1шт.

14

BRUSH ARM (Mfr. no. 1850759)

3шт.

.

BRUSH ARM SPACE PLAIN WASHER (Mfr. no. 1857412)

3шт.

15

THIRD BRUSH (Mfr. no. 1850768)

1шт.

.

BRUSH LEAD SCREW (Mfr. no. 132688)

3шт.

.

BRUSH LEAD ATTACHING SCREW LOCKWASHER (Mfr. no. 1904377)

3шт.

16

COVER BAND (Mfr. no. 1872638)

1шт.

.

MACHINE SCREW (Mfr. no. 132926)

1шт.

.

HEX NUT (Mfr. no. 120614)

1шт.

17

DOWEL PIN (Commutator end) (Mfr. no. 809062)

1шт.

18

FRAME (Not serviced separately)

1шт.

19

DOWEL PIN (Mfr. no. 8095393)

1шт.

20

ARMATURE (Mfr. no. 1913735)

1шт.

21

WOODRUFF KEY NO. 5 (Mfr. no. 124545)

1шт.

22

INSIDE DRIVE END SPACE WASHER (Mfr. no. 809945)

1шт.

23

FIELD COIL (Mfr. no. 1913732)

1шт.

24

STUD (Mfr. no. 1858751)

1шт.

.

INSULATING TERMINAL STUD BUSHING (Mfr. no. 1885090)

1шт.

.

TERMINAL STUD NUT (Mfr. no. 121743)

2шт.

.

TERMINAL STUD LOCKWASHER (Mfr. no. 1904661)

2шт.

.

TERMINAL STUD PLAIN WASHER (Mfr. no. 1881409)

1шт.

.

INSULATING TERMINAL STUD WASHER (Mfr. no. 1858753)

1шт.

25

FIELD COIL INSULATOR (Mfr. no. 1914491)

2шт.

26

POLE SHOE (Mfr. no. 1914618)

2шт.

.

POLE SHOE SCREW (Mfr. no. 1843646)

2шт.

27

BALL BEARING RETAINER PLATE (Mfr. no. 1911263)

1шт.

.

BALL BEARING RETAINER PLATE SCREW (Mfr. no. 1904370)

3шт.

.

BALL BEARING RETAINER PLATE LOCKWASHER (Mfr. no. 1880781)

3шт.

28

BALL BEARING RETAINER PLATE GASKET (Mfr. no. 1912008)

1шт.

29

BALL BEARING (Drive end) (Mfr. no. 954378)

1шт.

30

FELT WASHER RETAINER PLATE (Mfr. no. 819104)

1шт.

31

DRIVE END FELT WASHER (Mfr. no. 809961)

1шт.

32

SPACE COLLAR OUTSIDE DRIVE END (Mfr. no. 817224)

1шт.

33

FRAME DRIVE END (Mfr. no. 1838678)

1шт.

34

COMMUTATOR END OILER (Mfr. no. 1880635)

1шт.

35

SHAFT NUT DRIVE END LOCKWASHER (Mfr. no. 804000)

1шт.

36

SHAFT NUT (Drive end) (Mfr. no. 1914308)

1шт.
