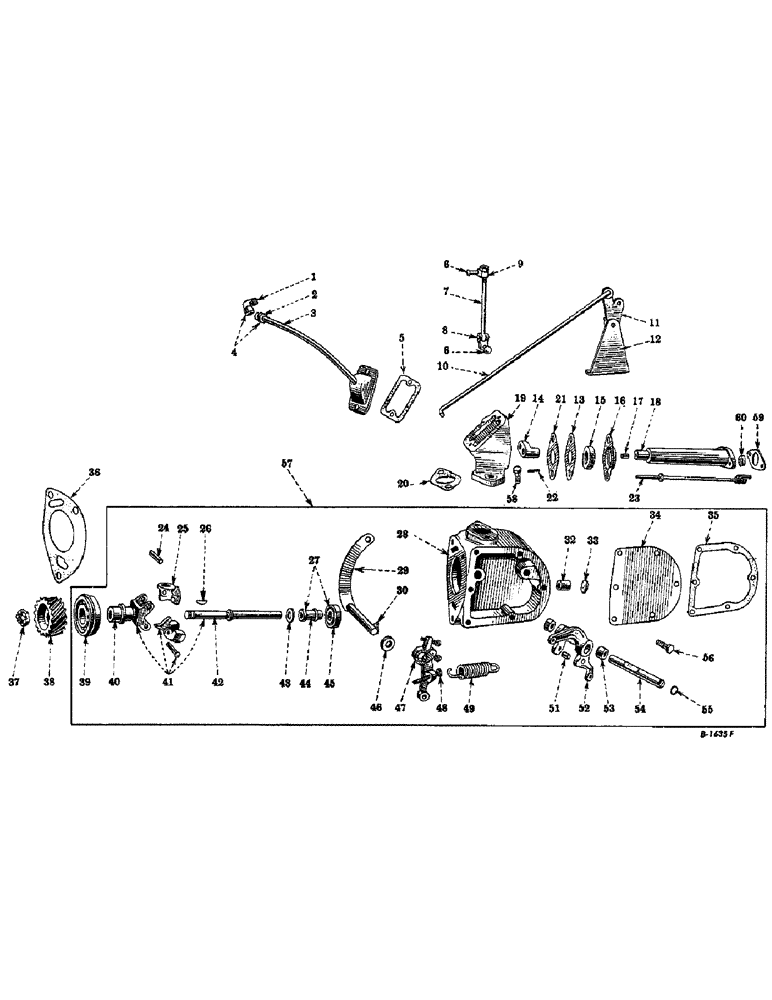

Запчасти Case IH FARMALL M (029) - CARBURETED ENGINE, GOVERNOR AND CONNECTIONS (01) - ENGINE

1

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

GOVERNOR BREATHER TUBE ELBOW

1шт.

2

278953R91

NUT

GOVERNOR BREATHER TUBE CONNECTOR NUT

1шт.

3

51208DX

GOVERNOR BREATHER TUBE WITH THROTTLE LEVER COVER AND NUT, 278953R91

1шт.

114353

SCREW,Slotted Fil Hd, 1/4"-20 x 1/2"

1/4 x 1/2" N.C. fillister head

2шт.

4

37323DX

ELBOW

GOVERNOR BREATHER TUBE ELBOW, 37323D with nut, 278953R91

1шт.

5

48501DA

GASKET

THOTTLE LEVER COVER GASKET

1шт.

6

103494

ADJUSTABLE CLEVIS,1/4" x .770"

THROTTLE SHAFT LEVER CONNECTING PIN (Same as 14611H)

1шт.

103361

PIN, SPLIT (COTTER)

COTTER PIN, 1/16 x 1/2"

1шт.

6

103494

ADJUSTABLE CLEVIS,1/4" x .770"

ROCKSHAFT LEVER PIN (Same as 14611H)

1шт.

NLS

NO LONGER SERVICED

COTTER PIN, 1/16 x 1/2"

1шт.

7

48839DX

THROTTLE SHAFT CONNECTING ROD WITH BLOCK AND PIN, 48496DA

1шт.

25-114

NUT,1/4"-28, G5

HEX NUT, 1/4" N.F.

1шт.

8

48496DA

THROTTLE CONNECTING ROD PIN

1шт.

9

6289D

GOVERNOR CONNECTING ROD ADJUSTING BLOCK

1шт.

10

49041DA

GOVERNOR CONTROL ROD, front

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

Q243

WASHER

21/64" I.D. x 3/4" O.D. x no. 16 ga.

2шт.

11

6715DA

LEVER

GOVERNOR CONTROL BELL CRANK

1шт.

12

48992DAX

SUPPORT

GOVERNOR CONTROL BELL CRANK BRACKET WITH PIN

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32" I.D. x 1-1/16" O.D. x no. 13 ga.

1шт.

13

54088D

THROTTLE SHAFT HOUSING FELT RETAINER PLATE

1шт.

14

6288D

LEVER

THROTTLE SHAFT LEVER

1шт.

15

48493D

WASHER

THROTTLE SHAFT HOUSING FELT WASHER

1шт.

16

48492D

THROTTLE SHAFT HOUSING FELT RETAINER

1шт.

114354

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

1/4 x 5/8" N.C. fillister head

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16558R1

WASHER

17/64" I.D. x 5/8" O.D. c no. 18 ga. (Same as Q103)

2шт.

17

45696D

BUSHING

THROTTLE SHAFT BUSHING

1шт.

18

6736DBX

GOVERNOR THROTTLE SHAFT HOUSING WITH BUSHING, 45696D and oil seal, 362201R91 (S/N FBKM 6428 up)

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4" N.C. round head

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

6736DAY

GOVERNOR THROTTLE SHAFT HOUSING WITH THROTTLE SHAFT, complete (Will work for 6736 DX or 49788DX) (S/N FBKM, Serial Range: 501-6427)

1шт.

19

6737D

GOVERNOR CONNECTING ROD HOUSING

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

20

48489D

GASKET

GOVERNOR CONNECTING ROD HOUSING GASKET

1шт.

21

53877DA

GASKET

THROTTLE SHAFT HOUSING FELT RETAINER GASKET

1шт.

22

NLS

NO LONGER SERVICED

Pin, Grooved, 3/32" x 1/2", Type A, throttle shaft lever (Same as 24772D)

1шт.

23

49788DXA

SHAFT

THROTTLE SHAFT, complete (S/N FBKM 6428 up)

1шт.

24

45656DA

PIN,6.35mm OD x 38.1mm L

GOVERNOR WEIGHT PIN

2шт.

25

45655DA

WEIGHT

GOVERNOR WEIGHT

2шт.

26

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

Governor gear and governor weight carrier key (Same as 17168D) #7, 1/8" x 3/4", HT

1шт.

27

351910R91

BEARING ASSY

GOVERNOR SLEEVE, 48250D WITH THRUST BEARING, ST506 (Will work for 48250DX)

1шт.

28

8363DBX

GOVERNOR HOUSING, complete (Will work for 6634DC and DD) (S/N FBKM up)

1шт.

28

8363DBZ

GOVERNOR HOUSING, rockshaft, 48253DA and snap ring, 21362D (Will work for 6634DA and DB) (S/N FBKM, Serial Range: 501-5631)

1шт.

29

48842DAX

LEVER

SPEED CHANGE LEVER WITH SHAFT (Optional with 355989R11)

1шт.

29

355989R11

LEVER

SPEED CHANGE LEVER WITH SHAFT (Optional with 48842DAX)

1шт.

30

106749

KEY

GOVERNOR SPRING LEVER KEY (Woodruff, no. 3) (Same as 4167T)

1шт.

32

48227D

BUSHING

GOVERNOR HOUSING BUSHING

1шт.

33

41-3014

PLUG,Exp, 7/8"

GOVERNOR SHAFT OPENING EXPANSION PLUG, 7/8" diameter (In govenor housing) (Same as 13090D)

1шт.

34

49107D

GOVERNOR HOUSING COVER

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

4шт.

28950D

WASHER

GOVERNOR HOUSING COVER WASHER

4шт.

35

49108DA

GASKET

GOVERNOR HOUSING COVER GASKET

1шт.

36

45685D

GASKET

GOVERNOR HOUSING GASKET

1шт.

37

250285R1

GOVERNOR SHAFT NUT (Follows reference 42)

1шт.

38

45935D

GEAR

GOVERNOR GEAR, 17 teeth

1шт.

39

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

GOVERNOR SHAFT BEARING

1шт.

40

48256DA

CARRIER

GOVERNOR WEIGHT CARRIER AND HUB (Optional with 360535R1)

1шт.

40

360535R1

GOVERNOR WEIGHT CARRIER AND HUB (Optional with 48256DA)

1шт.

41

359000R91

GOVERNOR

WEIGHT CARRIER, complete (Will work for 48256DAXA)

1шт.

42

48255D

SHAFT

GOVERNOR SHAFT (Order 358999R91)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

250285R1

GOVERNOR SHAFT NUT

1шт.

42

358999R91

SHAFT

GOVERNOR SHAFT, 48255DA with nut, 451074 (Will work for 48255D)

1шт.

451074

HEX JAM NUT, 9/16" NF

1шт.

43

45653D

THRUST WASHER

GOVERNOR SLEEVE THRUST WASHER

1шт.

44

48250D

SLEEVE

GOVERNOR SLEEVE

1шт.

45

ST506

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

GOVERNOR THRUST BEARING (Will work for ST320)

1шт.

46

45667D

SEAL

SPEED CHANGE SHAFT SEAL

1шт.

47

6676DB

LEVER

GOVERNOR SPRING LEVER

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

49528DA

GOVERNOR SPRING LEVER BOLT, long

1шт.

109084

NUT,1/4"-20, G5

1шт.

49

357012R1

VALVE SPRING

GOVERNOR SPRING (Optional with 49407DBX)

1шт.

49

49407DBX

SPRING

GOVERNOR SPRING (Optional with 357012R1)

2шт.

51

48254D

GOVERNOR ROCKSHAFT LEVER THRUST PIN

2шт.

52

6633DBX

LEVER

GOVERNOR ROCKSHAFT LEVER WITH 2 PINS, 48254D

1шт.

53

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

GOVERNOR ROCKSHAFT BEARING

2шт.

54

48253DA

ROCKSHAFT

GOVERNOR ROCKSHAFT

1шт.

55

21362D

GOVERNOR ROCKSHAFT SNAP RING (S/N FBKM 5632 up)

1шт.

56

364489R1

GOVERNOR HOUSING COVER SCREW (Will work for 10958D)

2шт.

57

360087R91

VARIABLE SPEED GOVERNOR, complete (Will work for 48284D)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

58

364489R1

GOVERNOR CONNECTING ROD HOUSING SCREW

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28950D

WASHER

GOVERNOR HOUSING COVER SCREW

1шт.

59

66272D

GASKET

THROTTLE SHAFT HOUSING TO CARBURETOR GASKET (S/N FBKM 57688 up)

1шт.

60

362201R91

OIL SEAL

GOVERNOR THROTTLE SHAFT HOUSING OIL SEAL

1шт.

13115D

PLUG

GOVERNOR ROCKSHAFT OPENING EXPANSION PLUG, 5/8" dia. (S/N, Serial Range: 501-5631)

1шт.

48251D

GOVERNOR SPRING PIN (Used with 49407DBX)

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

356732R94

GOVERNOR

OVERHAUL PACKAGE

1шт.

363144R92

GASKET

GOVERNOR GASKET PACKAGE

1шт.
