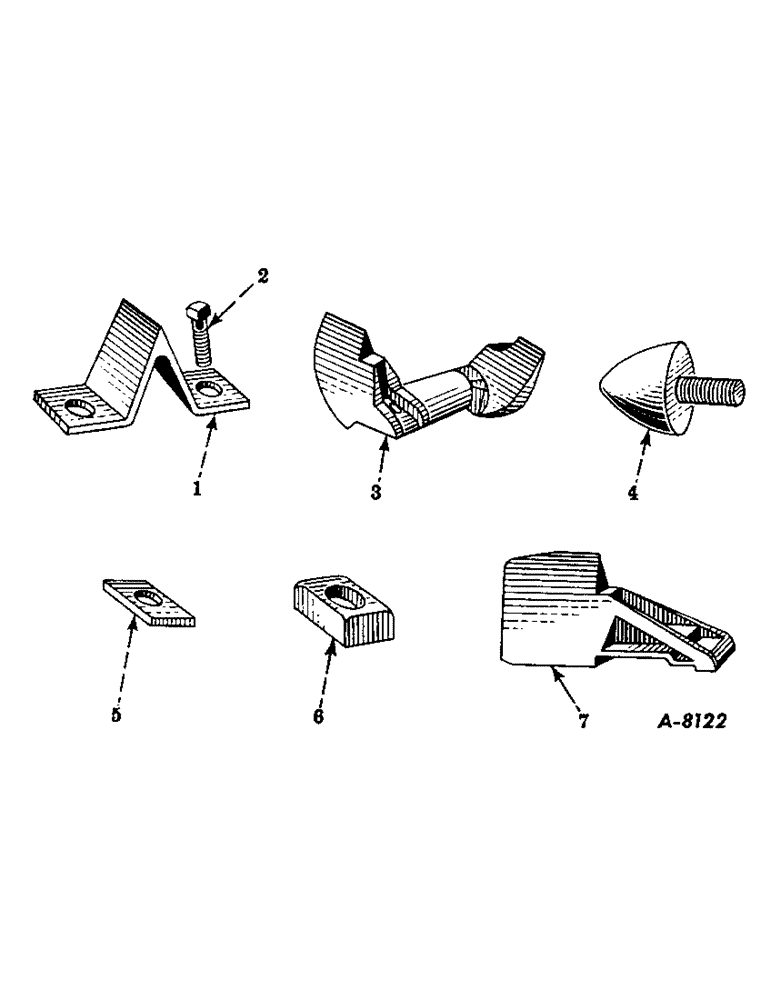

Запчасти Case IH FARMALL M (331) - ATTACHMENTS, REAR WHEEL LUGS, SPECIAL, "M" AND "MD" Attachments

57460DA

SPACE LUG ATTACHMENT (5" high x 3" wide) (Machine attachment) (For tractors equipped with standard or heavy duty steel rear wheels) (Will work for attachment 54979D)

1шт.

58039DA

SPADE LUG ATTACHMENT (5" high x 3" wide) (Machine attachment) (For rear wheel extension tires applied to tractor with 5" high spade lugs)

1шт.

66112D

SPADE LUG ATTACHMENT (6" high x 3" wide) (For tractors equipped with heavy duty steel rear wheels)

1шт.

66247D

SPADE LUG ATTACHMENT (4" high x 3" wide) (Machine attachment) (For rear wheel extension tires supplied on tractors with 4" high spade lugs) (Will work for attachment 54177D)

1шт.

1

23834D

SPADE LUG (4" high x 2-1/2" wide)

56шт.

1

23835D

SPADE LUG (5" high x 2-1/2" wide)

56шт.

1

57459D

SPADE LUG (5" high x 3" wide) (For attachment 58039DA)

28шт.

1

57459D

SPADE LUG (5" high x 3" wide) (For attachment 57460DA)

56шт.

1

59181D

SPADE LUG (6" high x 3" wide)

28шт.

1

59181D

SPADE LUG (6" high x 3" wide) (For attachment 66112D)

56шт.

1

66075D

SPADE LUG (4" high x 3" wide)

28шт.

2

63137D

SPADE LUG BOLT (For attachments 58039DA and 66247D)

56шт.

102639

NUT,5/8"-11, G5

56шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

56шт.

2

63137D

SPADE LUG BOLT (For attachments 57460DA and 66112D)

112шт.

102639

NUT,5/8"-11, G5

112шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

112шт.

3

54627DB

DOUBLE SPADE LUG

28шт.

PO19296

MACHINE BOLT, 3/4 x 3" N.C. square head, head treated

56шт.

114821

HEX NUT, 3/4" N.C.

56шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

56шт.

3

66303DA

DOUBLE SPADE LUG

32шт.

13419R1

MACHINE BOLT, 3/4 x 3" N.C. square head, heat treated

64шт.

114821

HEX NUT, 3/4" N.C.

64шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

64шт.

4

379TMA

SPUD LUG (2-3/4" high)

112шт.

5

57784D

REAR WHEEL TIRE REINFORCING PLATE

112шт.

114820

HEX NUT, 5/8" N.C.

112шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

112шт.

6

32872DA

LUG BOLT SPACER

56шт.

6

32872DA

LUG BOLT SPACER

64шт.

7

37639DB

SINGLE SPADE LUG

56шт.

PO19296

MACHINE BOLT, 3/4 x 3" N.C. square head, heat treated

56шт.

114821

HEX NUT, 3/4" N.C.

56шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

56шт.

7

37639DB

SINGLE SPADE LUG

64шт.

PO19296

MACHINE BOLT, 3/4 x 3" N.C. square head, heat treated

64шт.

114821

HEX NUT, 3/4" N.C.

64шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

64шт.
