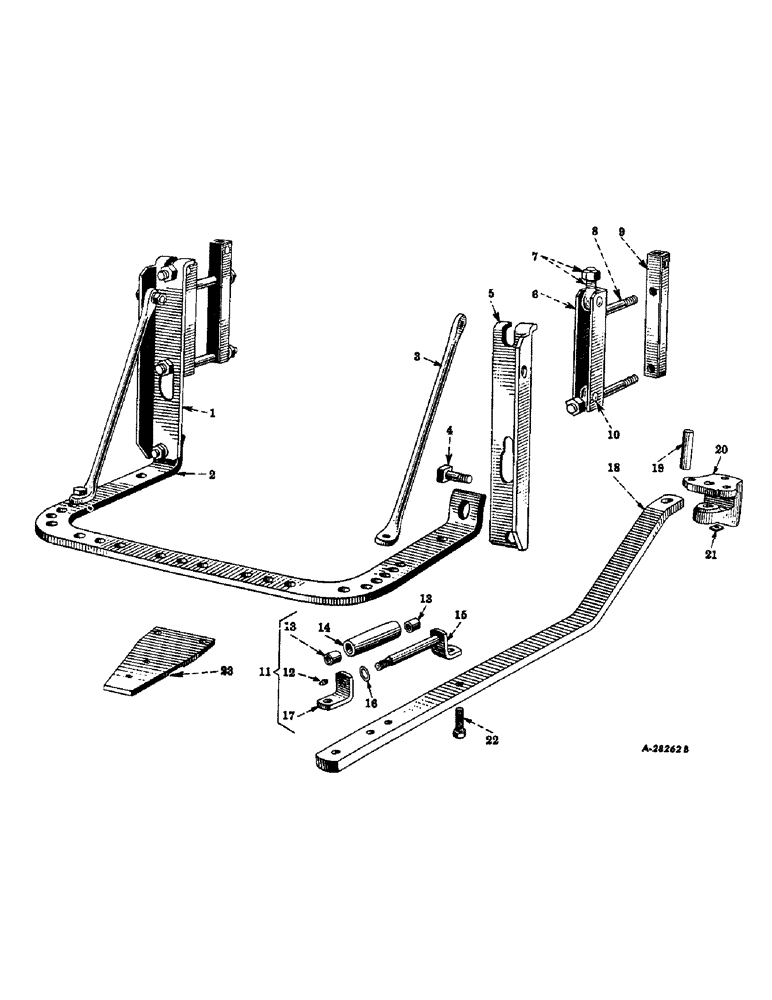

Запчасти Case IH FARMALL M (252) - CHASSIS, DRAWBAR, STANDARD, "M" AND "MD" (12) - CHASSIS

69045DC

DRAWBAR UNIT, complete (Reference no. 1 to 10 inclusive)

1шт.

1

51719D

DRAWBAR ANGLE, L.H. (S/N FBK, Serial Range: 501-21090)

1шт.

1

57231DA

DRAWBAR ANGLE, L.H. (S/N FBK 21091 up)

1шт.

2

57230DB

DRAWBAR (Standard) (Will work for 41120DB)

1шт.

3

41119D

DRAWBAR BRACE (S/N FBK, Serial Range: 501-21090)

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

CAP SCREW, 3/4 x 2" N.C. hex head

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

CAP SCREW, 3/4 x 2-1/4" N.C. hex head

2шт.

114821

HEX NUT, 3/4" N.C.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

3

57233DA

ROD

DRAWBAR BRACE (S/N FBK 21091 up)

2шт.

179952

CAP SCREW, 3/4 x 2" N.C. hex head

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C. hex head

2шт.

425-1012

NUT,3/4"-10, G5

HEX NUT, 3/4" N.C.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

41111D

BOLT,3/4" - 10 x 2 3/4"

DRAWBAR PIVOT BOLT

2шт.

220081

NUT

HEX NUT, 3/4" N.C.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

51720D

DRAWBAR ANGLE, R.H. (S/N FBK, Serial Range: 501-21090)

1шт.

5

57232DA

DRAWBAR ANGLE, R.H. (S/N FBK 21091 up)(replaces 57323DA)

1шт.

REF#5-57323DA-SHOULD READ 57232DA 8/9/96

1шт.

6

51718DXB

CHANNEL

DRAWBAR ATTACHING CHANNEL, complete

2шт.

7

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

DRAWBAR EYE BOLT WITH NUT, 353025R1 and washer, Q1552

4шт.

353025R1

NUT, hex, 3/4" N.C., heavy

4шт.

Q1552

WASHER

plain, 25/32" I.D. x 1-1/4" O.D. x no. 10 ga.

4шт.

8

45269D

BOLT

DRAWBAR ATTACHING BOLT

4шт.

218200

NUT,7/8"-14, G5

HEX NUT, 7/8" N.F.

4шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

9

51717DA

DRAWBAR ATTACHING CLAMP

2шт.

10

41112D

PIN

DRAWBAR EYE BOLT PIN

4шт.

49204DE

SWINGING DRAWBAR ATTACHMENT

1шт.

11

356563R92

ROLLER

SWINGING DRAWBAR ROLLER, complete, (special) "M" and "MD"

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

LUBRICATION FITTING, 1/8" straight (Optional with 119512) (Note A), swinging drawbar (special) "M" and "MD"

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATION FITTING, 1/8" straight (Optional with 109461) (Note A), swinging drawbar (special) "M" and "MD"

1шт.

13

356564R1

BUSHING

SWINGING DRAWBAR ROLLER BUSHING (Note A), (special) "M" and "MD"

1шт.

13

368513R1

BUSHING,1.3125" OD x 0.875"

SWINGING DRAWBAR ROLLER BEARING (Nylon) (Supplied with package 368517R91) (Note B), (special) "M" and "MD"

2шт.

14

356562R11

ROLLER

SWINGING DRAWBAR ROLLER WITH 2 BUSHINGS, 356564R1 (Order 368517R91), (special) "M" and "MD"

1шт.

14

356562R2

ROLLER

SWINGING DRAWBAR ROLLER WITH 2 BEARINGS, 368513R1 (Nylon) (Supplied with package 368517R91) (Note B), (special) "M" and "MD"

2шт.

15

356561R11

SHAFT

SWINGING DRAWBAR SHAFT WITH SUPPORT (Note A), (special) "M" and "MD"

1шт.

15

368512R1

SWINGING DRAWBAR SHAFT WITH SUPPORT (Supplied with package 368517R91) (Note B), (special) "M" and "MD"

1шт.

13361R1

MACHINE BOLT, 5/8 x 2-1/4" N.C. square head, swinging drawbar (special) "M" and "MD"

1шт.

102639

NUT,5/8"-11, G5

Swinging drawbar (special) "M" and "MD" 5/8"-11, G5

1шт.

114821

HEX NUT, 3/4" N.C., swinging drawbar (special) "M" and "MD"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Swinging drawbar (special) "M" and "MD" 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar (special) "M" and "MD" 3/4"

1шт.

16

21868V

WASHER

SWINGING DRAWBAR ROLLER SHAFT WASHER (29/32" I.D. x 1-1/2" O.D. x no. 16 ga.), (special) "M" and "MD"

2шт.

17

356565R2

SUPPORT

SWINGING DRAWBAR ROLLER SHAFT SUPPORT, front, (special) "M" and "MD"

1шт.

13361R1

MACHINE BOLT, 5/8 x 2-1/4" N.C. square head, swinging drawbar (special) "M" and "MD"

1шт.

102639

NUT,5/8"-11, G5

Swinging drawbar (special) "M" and "MD" 5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Swinging drawbar (special) "M" and "MD" 5/8"

1шт.

18

357529R1

SWINGING DRAWBAR (1" thick) (Will work for 49200DB), (special) "M" and "MD"

1шт.

19

49201D

SWINGING DRAWBAR PIVOT PIN (S/N FBK 501 to 23105), (special) "M" and "MD"

1шт.

19

57762D

PIN

SWINGING DRAWBAR PIVOT PIN (Used with 8843DB) (S/N FBK 23106 to), (special) "M" and "MD"

1шт.

19

58657D

SWINGING DRAWBAR PIVOT PIN (Used with 8874DA), (special) "M" and "MD"

1шт.

20

8843DBX

SUPPORT

SWINGING DRAWBAR PIVOT SUPPORT, complete (Will work for 6801DA) (S/N FBK 501 to 23105), (special) "M" and "MD"

1шт.

20

8843DB

SWINGING DRAWBAR PIVOT SUPPORT (Used with 49200DB) (FBK 23106 to), (special) "M" and "MD"

1шт.

361133R1

BOLT,Hex, 7/8" - 9 x 2 1/4"

CAP SCREW, 7/8 x 2-1/4" N.C. hex head, swinging drawbar (special) "M" and "MD"

3шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, , Swinging drawbar (Special) "M" and "MD" 7/8"

3шт.

20

8874DA

SWINGING DRAWBAR PIVOT SUPPORT (Used with 357529R1), (special) "M" and "MD"

1шт.

21

57655D

PLATE

SWINGING DRAWBAR PIVOT PIN LOCK PLATE (S/N FBK 23106 up), (special) "M" and "MD"

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Swinging drawbar (special) "M" and "MD" Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Swinging drawbar (Special) "M" and "MD" 3/8"

1шт.

22

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

CAP SCREW, 3/4 x 2" N.C. hex head (Used as drawbar roller stop), swinging drawbar (special) "M" and "MD"

2шт.

105611

NUT

SQUARE NUT, 3/4" N.C., swinging drawbar (special) "M" and "MD"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar (special) "M" and "MD" 3/4"

2шт.

23

66426D

DRAWBAR EXTENSION (For tractors equipped with power take-off attachment), swinging drawbar (special) "M" and "MD"

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C. hex head, swinging drawbar (special) "M" and "MD"

2шт.

114821

HEX NUT, 3/4" N.C., swinging drawbar (special) "M" and "MD"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar (special) "M" and "MD" 3/4"

2шт.

368517R91

DRAWBAR ROLLER PACKAGE (Consists of two bearings, 368513R1 and roller, 356562R2) (Will work for 356562R11), swinging drawbar (special) "M" and "MD"

1шт.
