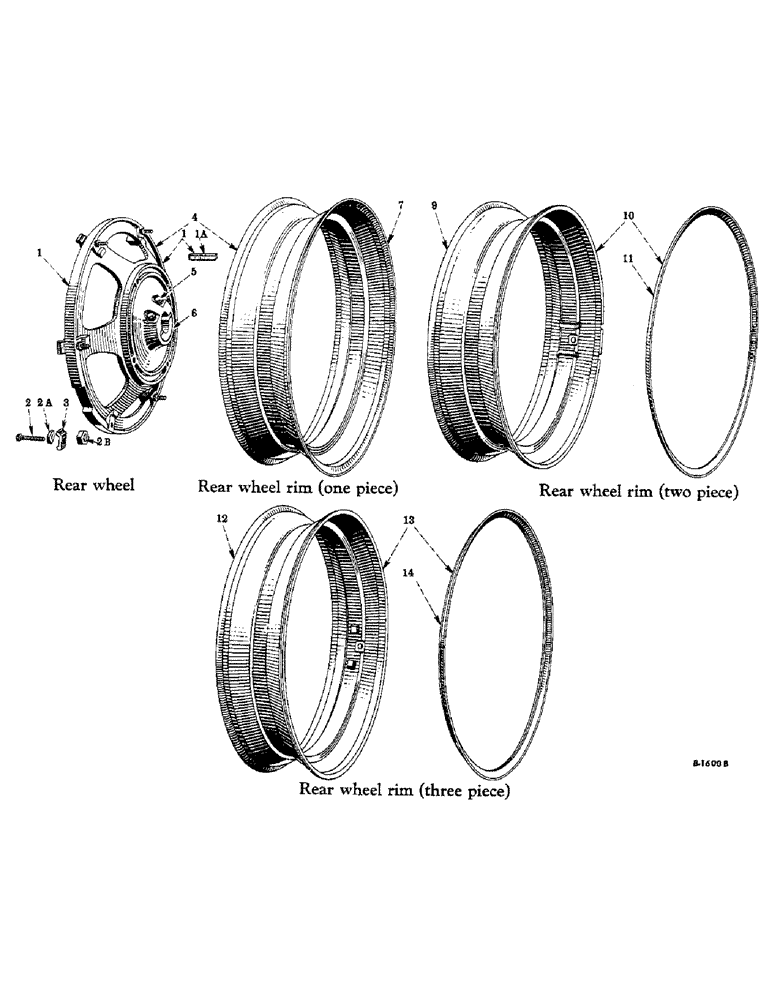

Запчасти Case IH FARMALL M (248) - CHASSIS, REAR WHEELS, PNEUMATIC TIRES, "M" AND "MD" (12) - CHASSIS

1

6325DF

REAR WHEEL (Used with all rims) (Order 365344R91)

2шт.

179961

CAP SCREW, 3/4 x 4-1/4" N.C. hex head

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

Q3478

WASHER

25/32" I.D. x 1-1/4" O.D. x no. 14 ga.

8шт.

1

365344R91

REAR WHEEL, 365345R11 w/two clamps, 355440R2, two screws, 271686 and four washers, PO12898 (Will work for 6325DF and 355439R2)

2шт.

1

365345R11

REAR WHEEL WITH KEY, 363015R2

2шт.

1a

363015R2

KEY

REAR WHEEL DRIVE KEY (Used on wheel, 365345R11)

2шт.

2

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

REAR WHEEL RIM CLAMP BOLT (Used with clamp, 48984D)

12шт.

2a

351833R1

NUT

REAR WHEEL RIM MOUNTING JAM NUT

12шт.

2b

351832R1

NUT

REAR WHEEL RIM MOUNTING NUT

12шт.

3

48984D

CLAMP

REAR WHEEL RIM CLAMP (Used with all rims, except 56484D and 57202D)(replaces 48894D)

24шт.

REF#3-SHOULD BE PART 48984D 8/9/96

1шт.

4

355037R93

REAR WHEEL AND RIM, complete (Same as 53930D) (6.00 x 36 rim size) (9.00 x 36 tire size)

2шт.

4

355039R93

REAR WHEEL AND RIM, complete (Same as 55577D) (DW9-38 rim size) (10-38 tire size)

2шт.

4

355040R93

REAR WHEEL AND RIM, complete (Same as 55578D) (DW10-38 rim size) (11-38 tire size)

2шт.

4

355042R93

REAR WHEEL AND RIM, complete (Same as 55579D) (DW11-38 rim size) (12-38 tire size) (13-38 tire size)

2шт.

6

6326DC

CLAMP

REAR WHEEL HUB CLAMP (Used on wheel, 6325DF) (S/N FBK 21699 up)

2шт.

6

355440R2

CLAMP

REAR WHEEL CLAMP HUB (Used on wheel, 355439R2 and 365345R11)

2шт.

271686

SPRING

7/8-14 x 4" hex head

4шт.

PO12898

WASHER

29/32" I.D. x 1-1/2" O.D. x 11 ga.

4шт.

6

6326DCX

REAR WHEEL HUB CLAMP WITH 4 CAP SCREWS, 179961 (Will work for 6326DA) (S/N FBK, Serial Range: 501-21698)

2шт.

7

53926D

REAR WHEEL RIM (1 piece) (Will work for 45423D) (Optional with 45420D or 45417D) (6.00 x 36 rim size) (9.00 x 36 tire size)

2шт.

7

55562D

REAR WHEEL RIM (1 piece) (6.00 x 36 rim size) (9.00 x 36 tire size)

2шт.

7

55563D

RIM

REAR WHEEL RIM (1 piece) (DW10 x 38 rim size) (11 x 38 tire size)

2шт.

7

55564D

REAR WHEEL RIM (1 piece) (DW11 x 38 rim size) (12 x 38 tire size) (13 x 38 tire size)

2шт.

9

45418D

REAR WHEEL RIM BASE (Used with rim, 45417D) (S/N FBK, Serial Range: 501-1362)

2шт.

9

45866D

REAR WHEEL RIM BASE (Used with rim, 45865D)

2шт.

9

56483D

REAR WHEEL RIM BASE (Used with rim, 56484DA)

2шт.

10

45417D

REAR WHEEL RIM (2 piece Goodyear) (Optional with 53926D or 45420D) (6.00S x 36 rim size)

2шт.

10

45865D

REAR WHEEL RIM (2 piece Goodyear) (Consisting of base, 45866D and side ring, 38921D) (Optional with 45867D) (8.00T x 36 rim size) 10.00 x 36 tire size) or (11.25 x 36 tire size) or rice field type (12 x 36 tire size) or rice field type (13-36 tire size)

2шт.

10

56484DA

REAR WHEEL ATTACHED CLAMP RIM (2 piece, Goodyear) (Consisting of base, 56483D and ring, 42330D) (Optional with 57202D) (8.00T x 40 rim size) (9.00 x 40 or 10.00 x 40 tire size)

2шт.

350598R1

MACHINE BOLT, 5/8 x 3" N.C.

12шт.

351832R1

NUT

REAR WHEEL RIM MOUNTING NUT

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

11

38921D

REAR WHEEL RIM SIDE RING (Used with rim, 45865D)

2шт.

11

42330D

REAR WHEEL RIM SIDE RING (Used with rim, 56484DA)

2шт.

11

45419D

REAR WHEEL RIM SIDE RING (Used with rim, 45417D) (S/N FBK, Serial Range: 501-1362)

2шт.

12

45421D

REAR WHEEL RIM BASE (Used with rim, 45420D) (S/N FBK, Serial Range: 501-1362)

2шт.

12

45868D

REAR WHEEL RIM BASE (Used with rim, 45867D)

2шт.

12

57201D

REAR WHEEL RIM BASE (Used with rim, 57202D)

2шт.

13

45420D

REAR WHEEL RIM (3 piece Firestone) (Optional with 53926D or 45417D) (6.00S x 36 rim size)

2шт.

13

45867D

REAR WHEEL RIM (3 piece Firestone) (Consisting of base, 45868D and rim side and locking ring, 37656D) (Optional with 45865D) (8.00T x 36 rim size) (10.00 x 36 or 11.25 x 36 tire size) rice field type (12 x 36 or 13-36 tire size)

2шт.

13

57202D

REAR WHEEL ATTACHED CLAMP RIM (3 piece, Firestone) (Consisting of base, 57201D and ring, 39174D) (Optional with 56484DA) (8.00T x 40 rim size) (9.00 x 40 or 10.00 x 40 tire size)

2шт.

350598R1

MACHINE BOLT, 5/8 x 3" N.C.

12шт.

351832R1

NUT

REAR WHEEL RIM MOUNTING NUT

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

14

37656D

REAR WHEEL RIM SIDE RING WITH LOCKING RING (Used with rim, 45867D)

2шт.

14

39174D

REAR WHEEL RIM SIDE RING (Used with rim, 57202D)

2шт.

14

45422D

REAR WHEEL RIM SIDE AND LOCKING RING (Used with rim, 45420D) (S/N FBK, Serial Range: 501-1362)

2шт.

355038R93

(1-10 or 1-13) REAR WHEEL AND RIM, complete (Same as 45829DA and 45830DA) (8.00T x 36 rim size) (10 x 36 or 11.25 x 36 tire size) rice field type (12 x 36 tire size) rice field type (13 - 36)

2шт.

355043R93

(1-10 or 1-13) REAR WHEEL AND RIM, complete (Same as 56493D and 57207D) (8.00T x 40 rim size) (9.00 x 40 or 10.00 x 40 tire size)

2шт.

37655D

REAR WHEEL RIM SIDE RING, inner (Used with rim, 45869D)

2шт.

45422D

REAR WHEEL RIM SIDE OUTER RING (Used with rim, 45423D) (S/N FBK, Serial Range: 501-1362)

2шт.

45423D

REAR WHEEL RIM (4 piece Firestone) (Order 53926D) (6.00S x 36 rim size)

2шт.

45424D

REAR WHEEL RIM BASE (Used with rim, 45423D) (S/N FBK, Serial Range: 501-1362)

2шт.

45425D

REAR WHEEL RIM SIDE RING, inner (Used with rim, 45423D) (S/N FBK, Serial Range: 501-1362)

2шт.

45869D

REAR WHEEL RIM (4 piece Firestone) (Order 45867D) (8.00T x 36 rim size)

2шт.

45870D

REAR WHEEL RIM BASE (Used with rim, 45869D)

2шт.

55662D

DRIVING LUG FILLER BLOCK (S/N FBK, Serial Range: 501-8805)

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Used as plug for 5th speed lockout hole) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.
