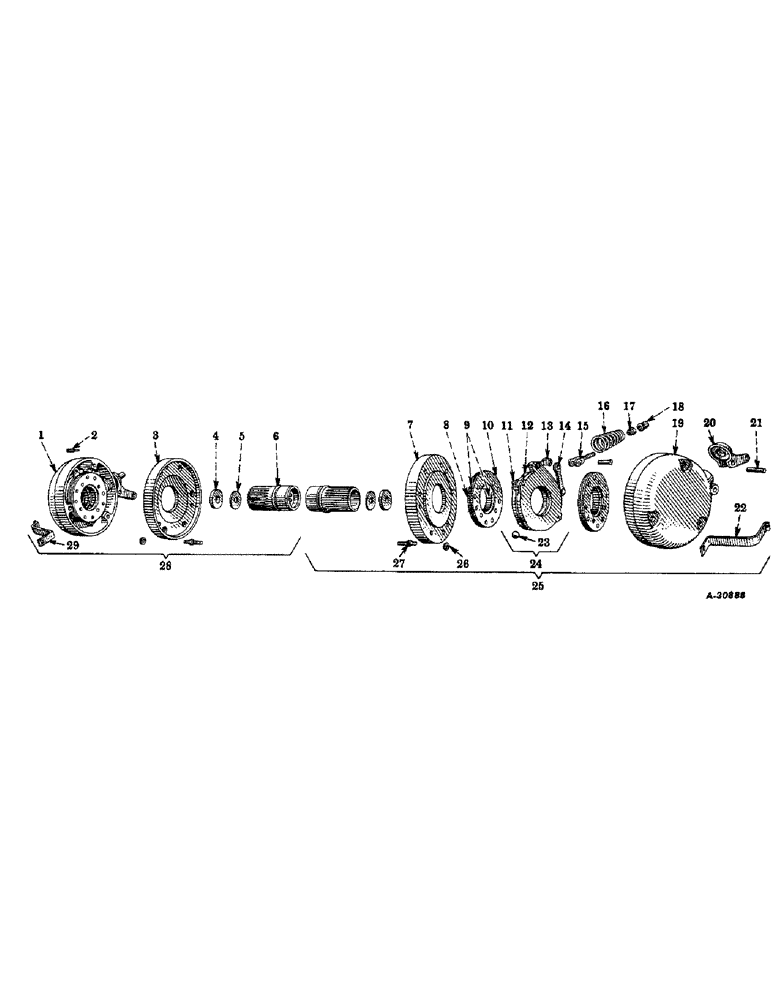

Запчасти Case IH FARMALL M (238) - CHASSIS, DISC BRAKES, SPECIAL (12) - CHASSIS

358249R91

DOUBLE DISC TYPE MECHANICAL BRAKE ATTACHMENT (S/N FBK, Serial Range: 501-294225

1шт.

(S/N FDBK, Serial Range: 501-285504)

1шт.

358553R91

DOUBLE DISC BRAKE PACKAGE (Consists of one doubole disc brake assembly (L.H.), 358251R91, and one double disc brake assembly (R.H.), 358252R91)

1шт.

1

358739R1

BRAKE HOUSING, L.H.

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAP SCREW, 1/2 x 3-1/2" N.C. hex head

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

2

358724R1

SPRING ANCHOR

2шт.

25-114

NUT,1/4"-28, G5

HEX NUT, 1/4" N.F.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

358741R1

ADAPTER PLATE, L.H.

1шт.

4

358747R1

SEALING WASHER

2шт.

5

354637R1

HUB WASHER

2шт.

6

358744R1

SPLINED HUB

2шт.

7

358742R1

ADAPTER PLATE, R.H.

1шт.

8

356073R1

RIVET

TUBULAR STEEL, 3/16 x 1/2"

48шт.

9

358743R91

DISC

MIDDLE DISC, with two linings and twelve rivets, 356073R1

4шт.

10

359324R91

BRAKE LINING SERVICE PACKEAGE (Consists of four linings with twenty-four rivets, 356073R1)

1шт.

11

354627R1

SPRING

EXTENSION SPRING

4шт.

12

354642R1

STUD

ACTUATING DISC STUD

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

13

354640R91

LINK

ACTUATING LINK (Yoke)

2шт.

14

354641R1

LINK

ACTUATING LINK (Plain)

2шт.

15

358745R1

ROD

YOKE END (Plain)

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

YOKE PIN, 7/16 x 1-15/64"

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

16

358718R1

SPRING

RETURN SPRING

2шт.

17

354630R1

NUT

LOCK NUT, 3/8" N.F.

2шт.

18

358746R1

NUT

BALL SEAT NUT

2шт.

19

358740R1

BRAKE HOUSING, R.H.

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAP SCREW, 1/2 x 3-1/2" N.C. hex head

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

20

358725R1

BRAKE LEVER

2шт.

21

354620R1

BRAKE LEVER PIN

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

4шт.

22

358749R1

SPRING BRACKET, R.H.

1шт.

23

16028R1

BALL

(7/8" dia.)

8шт.

24

356855R91

DISC

ACTUATING DISC ASSEMBLY

2шт.

25

358252R91

DISC BRAKE ASSEMBLY, complete (R.H)

1шт.

26

354631R1

HEX JAM NUT, 7/16" N.F.

12шт.

27

358723R1

BRAKE ADAPTER SCREW

12шт.

110405

LOCKWASHER, 7/16"

24шт.

28

358251R91

DISC BRAKE ASSEMBLY, complete (L.H.)

1шт.

29

358748R1

SPRING BRACKET, L.H.)

1шт.
