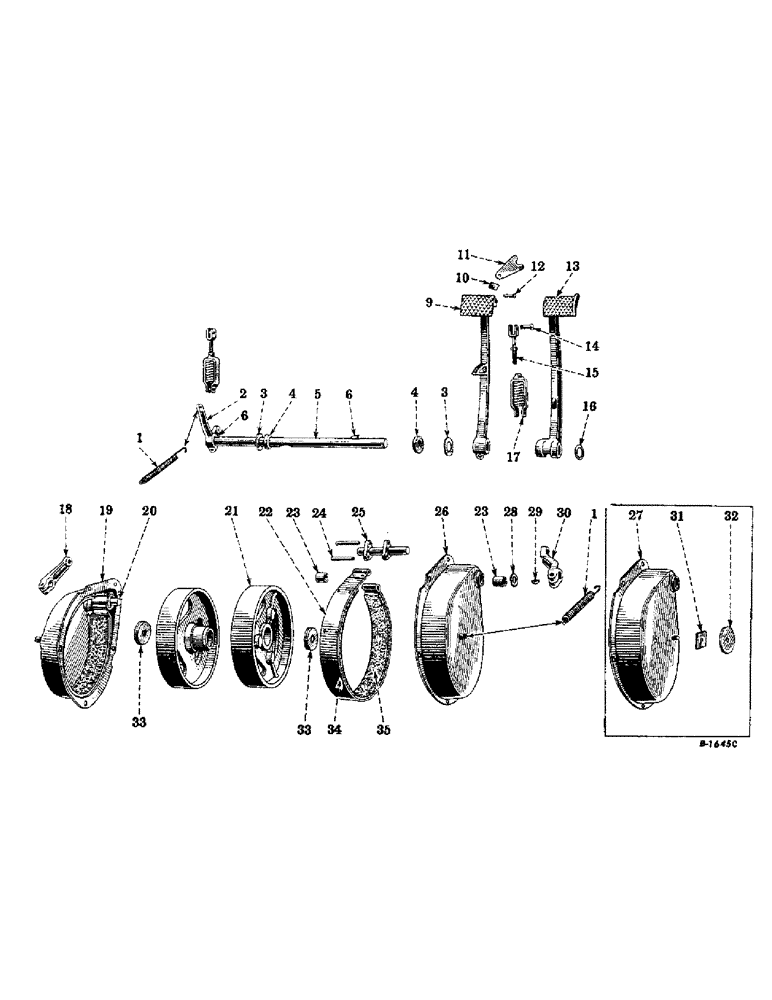

Запчасти Case IH FARMALL M (235) - CHASSIS, BRAKES AND CONNECTIONS (12) - CHASSIS

1

48599DA

SPRING

BRAKE PEDAL RETURN SPRING

2шт.

2

6949D

BRAKE OPERATING LEVER

1шт.

NLS

NO LONGER SERVICED

CAP SCREW, 7/16 x 1-1/2" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

48983D

THRUST WASHER

BRAKE PEDAL SHAFT THRUST WASHER

2шт.

4

581646R91

SEAL

BRAKE PEDAL SHAFT OIL SEAL (Will work for U17944)

2шт.

5

650079D

BRAKE PEDAL SHAFT

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

6

47648D

KEY

BRAKE OPERATING LEVER KEY (Woodruff no. 13)

1шт.

6

47648D

KEY

BRAKE PEDAL KEY (Woodruff no. 13)

1шт.

9

357103R21

BRAKE PEDAL, L.H. with lock plate, 43751DB tension spring, 51293D and rivet, 104087 (Will work for 6951DX and 357293R91)

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

CAP SCREW, 7/16 x 2-1/4" N.C. hex head

1шт.

271500

SOCKET

HEX NUT, 7/16" N.C.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4" round head

1шт.

10

51293D

SPRING

BRAKE PEDAL LOCK PLATE TENSION SPRING

1шт.

11

43751DB

LATCH, PEDALS

BRAKE PEDAL LOCK PLATE

1шт.

12

104087

RIVET,But Hd, 1/4" x 1 1/4"

FOLLOWS REFERENCE NO. 9

1шт.

13

6770DB

BRAKE PEDAL, R.H. (Will work for 350314R92)

1шт.

14

Q819

HEADED PIN,7/16" x 1 3/8"

BRAKE ROD YOKE PIN (Will work for M7801/2)

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

Q1510

WASHER

15/32" I.D. x 13/16" O.D. x no. 14 ga.

4шт.

15

48619DX

ROD

BRAKE ROD WITH YOKE

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

16

40435D

BRAKE PEDAL SHAFT WASHER

1шт.

17

49610D

VALVE SPRING

BRAKE COMPRESSION SPRING, complete

2шт.

18

6947D

BRAKE BAND LEVER ARM, L.H.

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

CAP SCREW, 3/8 x 1-5/8" N.C. hex head

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

49030DBX

BRAKE HOUSING, L.H. complete ("M" and "MD")

1шт.

19

49030DBX

BRAKE HOUSING, L.H. complete ("MV" and "MDV") (S/N FBK, Serial Range: 58712-80716)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

102445

SET SCREW, 5/16 x 1" N.C. square head (Oval point)

1шт.

218437

HEX JAM NUT, 5/16" N.C.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

20

58348D

LEVER

BRAKE BANK LEVER AND SHAFT, L.H. (Will work for 50077D)

1шт.

21

6771DA

BRAKE DRUM ("M" and "MD") (S/N FBK, Serial Range: 501-34887)

2шт.

21

8821D

BRAKE DRUM (Order 8821DBX) ("M" and "MD") (S/N FBK, Serial Range: 34888-37366)

2шт.

21

8821DB

BRAKE DRUM ("M" and "MD") (S/N FBK, Serial Range: 37367-)

2шт.

21

8821DBX

BRAKE DRUM WITH OIL SEAL, 63089D (Will work for 8821D) (S/N FBK, Serial Range: 34888-37366)

2шт.

21

8821DB

BRAKE DRUM ("MV" and "MDV") (S/N FBK, Serial Range: 58712-80716)

2шт.

21

9839D

BRAKE DRUM ("MV" and "MDV") (S/N FBK, Serial Range: 80717-)

2шт.

22

49032DAX

BAND

BRAKE BAND WITH RIVETS, 41476D AND LINING, 49033DA (Order 58353DB and (or) 58354DB) (S/N FBK, Serial Range: 501-20532)

2шт.

22

58345DCX

BAND

BRAKE BAND WITH WOVEN LINING AND 18 RIVETS, 59469D (Optional with 68537DAX) (S/N FBK, Serial Range: 20533-)

2шт.

22

58353DB

BRAKE BAND, complete (Will work for 49032DAX on L.H. side) (S/N FBK, Serial Range: 501-20532)

1шт.

22

58354DB

BRAKE BAND, complete (Will work for 49032DAX on R.H. side) (S/N FBK, Serial Range: 501-20532)

1шт.

22

68537DAX

BAND

BRAKE BAND WITH MOULDED LINING AND 24 RIVETS, 59469D (Optional with 58345DCX) (S/N FBK, Serial Range: 20533-)

2шт.

23

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BRAKE BAND LEVER SHAFT BUSHING

4шт.

24

48627DA

BRAKE BAND CONNECTION PIN

4шт.

25

58349D

LEVER

BRAKE BAND LEVER AND SHAFT, R.H. (Will work for 50078D)

1шт.

26

49031DBX

BRAKE HOUSING, R.H. complete ("M" and "MD")

1шт.

26

49031DBX

BRAKE HOUSING, R.H. complete ("MV" and "MDV") (S/N FBK, Serial Range: 58712-80716)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

102445

SET SCREW, 5/16 x 1" N.C. square head (Oval point)

1шт.

218437

HEX JAM NUT, 5/16" N.C.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

27

69837DX

BRAKER HOUSING, L.H., complete ("MV" and "MDV") (S/N FBK 80717 to)

1шт.

27

69838DX

BRAKE HOUSING, R.H., complete ("MV" and "MDV") (S/N FBK 80717 to)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

102445

SET SCREW, 5/16 x 1" N.C. square head (Oval point)

1шт.

281437

HEX JAM NUT, 5/16" N.C.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

28

20567H

BRAKE BANK LEVER SHAFT FELT WASHER

2шт.

29

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

Brake band lever arm key (Same as 17168D) #7, 1/8" x 3/4", HT

2шт.

30

6948D

BRAKE BANK LEVER ARM, R.H.

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

CAP SCREW, 3/8 x 1-5/8" N.C. hex head

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

31

69842D

SEED PLATE DRIVE COVER SPACER ("MV" and "MDV")

2шт.

32

69839D

SEED PLATE DRIVE COVER ("MV" and "MDV")

4шт.

113336

RIVET, .186 x 5/16" oval head, (Brass) tubular

2шт.

33

45038D

BRAKE DRUM RETAINER WASHER

2шт.

181480

CAP SCREW, 5/8 x 1-1/2" N.F. hex head

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

34

59469D

RIVET

BRAKE BAND RIVET (Will work for 41476D)

36шт.

48 required on bands with moulded lining

1шт.

35

68539D

EXCITER

BRAKE BAND LINING (3 pieces) with 24 rivets, 59469D (Moulded)

2шт.

35

352608R91

LINING

BRAKE BAND LINING (Woven) with 18 rivets, 59469D (Will work for 49033DB)

2шт.

21565D

WOODRUFF KEY,#TX, 3/8" x 2 3/4", HT

BRAKE DRUM KEY (S/N FBK 501 to 34887)

2шт.

353582R1

BRAKE PEDAL STOP PLATE (S/N FBK, Serial Range: 173347-)

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

CAP SCREW, 7/16 x 2-1/2" N.C. hex head

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
