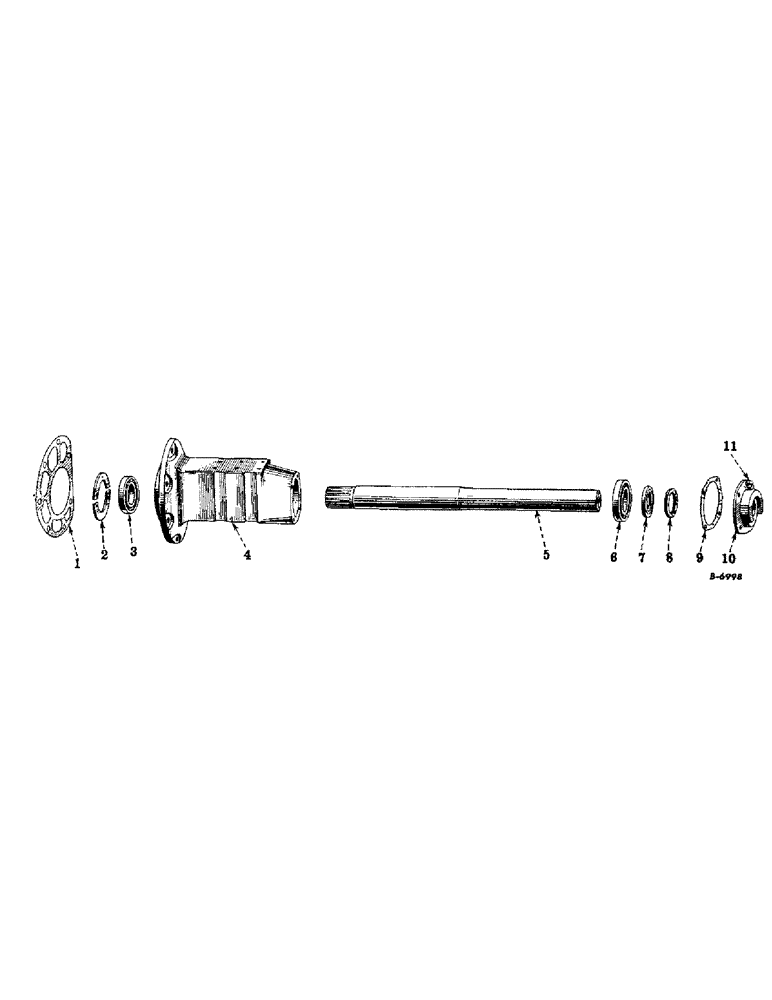

Запчасти Case IH FARMALL M (231) - CHASSIS, REAR AXLE, "M" AND "MD" (12) - CHASSIS

1

47670DB

GASKET

REAR AXLE CARRIER GASKET(replaces 47760DA)

2шт.

REF#1 SHOULD READ 47670DB 8/9/96

1шт.

2

353161R91

REAR AXLE INNER BEARING RETAINER PACKAGE (Consists of 2-353160R1 retainers) (Will work for 45083D) (S/N FBK, Serial Range: 501-165735)

2шт.

2

353160R1

REAR AXLE BALL BEARING RETINER, inner (S/N FBK 165736 up)

4шт.

179882

PIN

CAP SCREW, 1/2 x 1-1/8" N.C. hex head

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3

ST223

BALL BEARING

REAR AXLE BALL BEARING, inner

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

4

6734DB

REAR AXLE CARRIER, L.H.

1шт.

4

6735DB

REAR AXLE CARRIER, R.H.

1шт.

361856R1

SCREW

CAP SCREW, 5/8 x 2" N.C. hex head

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

5

51572DB

REAR AXLE

2шт.

6

ST310A

BALL BEARING,70mm ID x 125mm OD x 24mm W

REAR AXLE BALL BEARING, outer (Will work for ST253)(replaces ST310)

2шт.

Ref. # 6 p/n ST310 should be p/n ST310a. MJP 5/10/96

1шт.

7

360457R91

SEAL

REAR AXLE OIL SEAL (Optional with 358780R91 and 358819R91) (Will work for 48776D)

2шт.

7

358780R91

OIL SEAL

REAR AXLE OIL SEAL (Optional with 48776D and 358819R91)

2шт.

7

358819R91

OIL SEAL

REAR AXLE OIL SEAL (Optional with 48776D and 358780R91)

2шт.

8

45085D

SEALING WASHER

REAR AXLE FELT WASHER

2шт.

9

48950D

GASKET

REAR AXLE CARRIER CAP GASKET

2шт.

10

6727DBXA

CAGE

REAR AXLE CARRIER CAP WITH FELT WASHER, 45085D AND OIL SEAL, 48776D

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

REAR AXLE OUTER BEARING LUBRICATOR (Optional with 109461) (Same as 14186DA)

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

REAR AXLE OUTER BEARING LUBRICATOR (Optional with 119512) (Same as Q3615)

2шт.

52147DC

REAR AXLE FOR 100" MAXIMUM TREAD (Special)

2шт.

353323R92

REAR AXLE EXTENSION ATTACHMENT

1шт.

353327R3

REAR AXLE EXTENSION

1шт.

353328R1

REAR AXLE EXTENSION CLAMP

2шт.

181533

CAP SCREW, 7/8 x 4-3/4" N.F. hex head

10шт.

218200

NUT,7/8"-14, G5

HEX NUT, 7/8" N.F.

10шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

10шт.
