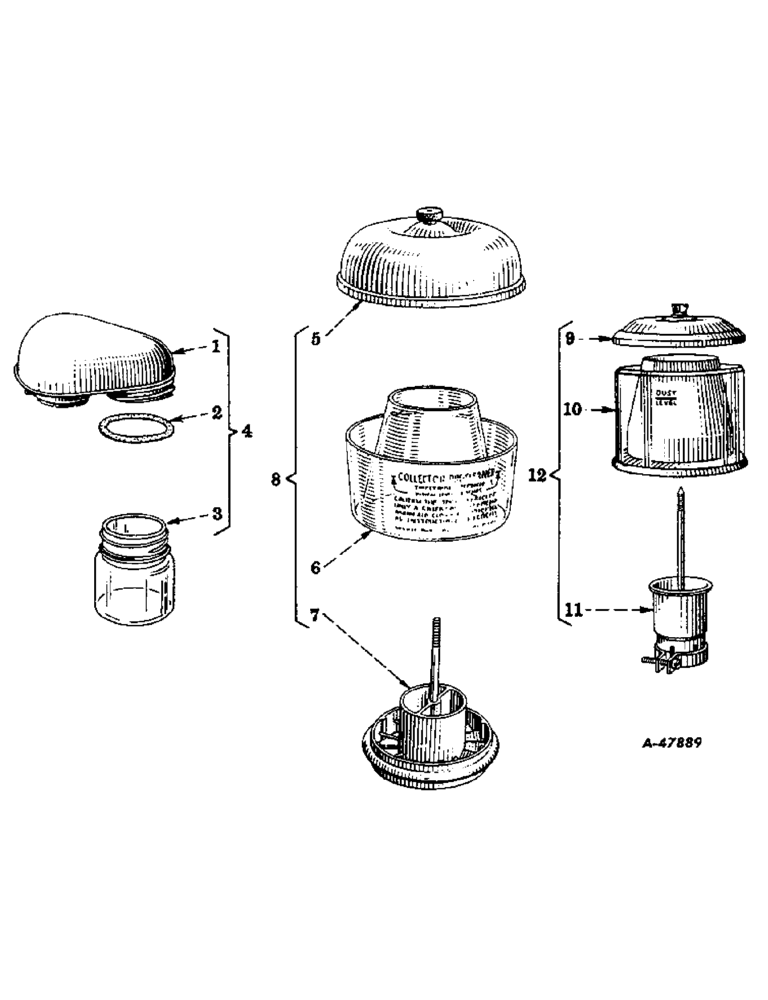

Запчасти Case IH FARMALL M (302) - ATTACHMENTS, PRE-CLEANERS, SPECIAL, PRE-CLEANER, COLLECTOR TYPE Attachments

1

63712D

COLLECTOR BODY, w/clamp, nut and screw (Order 365261R91)

1шт.

2

66776D

GASKET

DUST JAR GASKET (Used with 59096D)

1шт.

3

54082D

BOWL

DUST JAR (Used with 59096D)

1шт.

3

54082DGV

BOWL

Value, Dust Jar

1шт.

4

59096D

PRE-CLEANER, complete (Collector type, w/jar) (Order 365261R91)

1шт.

5

365412R91

COVER

TOP CAP, w/nut

1шт.

6

365413R1

BOWL

DUST RECEPTACLE BODY

1шт.

7

365414R91

SLEEVE

w/bolt

1шт.

8

365261R91

PRECLEANER

PRE-CLEANER, complete (Will work for 59096D) (Optional with 357867R91)

1шт.

9

361412R91

TOP CAP, w/nut, pre-cleaner (detachable sleeve type)

1шт.

10

361413R91

PRE-CLEANER BODY, pre-cleaner (detachable sleeve type)

1шт.

11

361415R91

SLEEVE

w/clamp, nut, 114380, screw, 114359 and stud, pre-cleaner (detachable sleeve type)

1шт.

114380

NUT

SQUARE NUT, 1/4-20NC, pre-cleaner (detachable sleeve type)

1шт.

114359

MACHINE SCREW 1/4-20NC x 1-1/4" slotted-fil-hd., pre-cleaner (detachable sleeve type)

1шт.

357867R91

PRECLEANER

PRE-CLEANER, complete (Optional with 365261R91), pre-cleaner (detachable sleeve type)

1шт.
