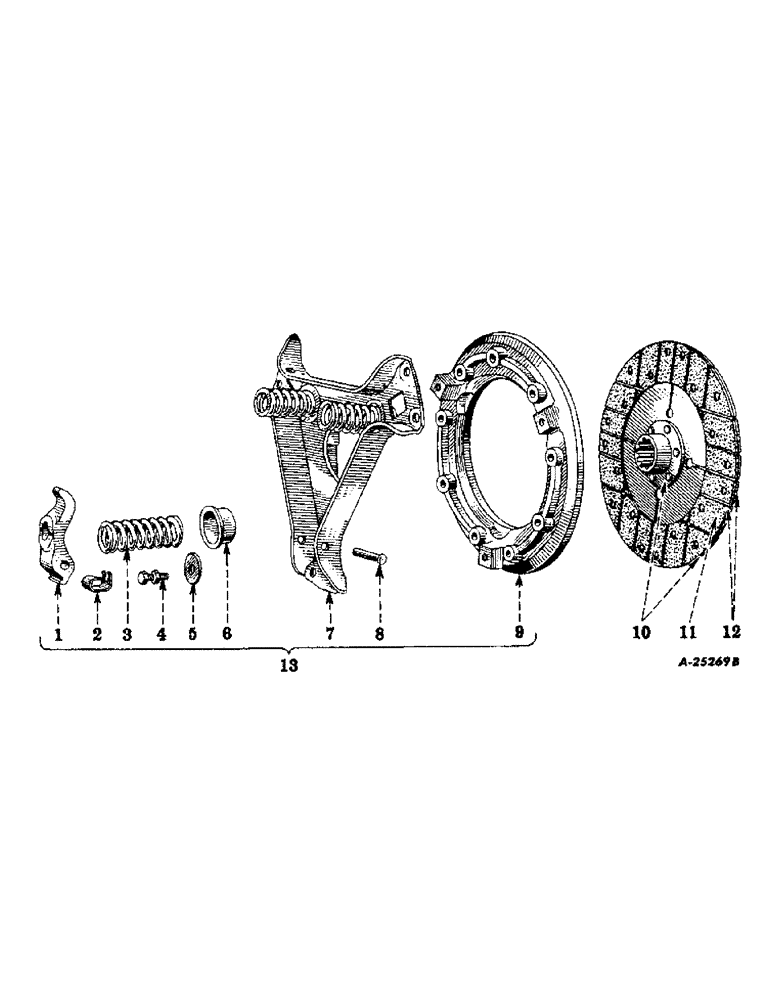

Запчасти Case IH FARMALL M (191) - CHASSIS, CLUTCH, AUBURN, FBK 229220 TO 294707 (12) - CHASSIS

355085R92

CLUTCH (11"), 355101R91 with driven member, 355871R91 (Optional with Rockford clutch, 48965DA)

1шт.

NLS

NO LONGER SERVICED

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

1

355107R1

LEVER

CLUTCH LEVER

3шт.

2

355110R1

NO LONGER SERVICED

RETURN CLIP

3шт.

3

355105R1

SPRING

CLUTCH LEVER PRESSURE SPRING

3шт.

4

355106R1

ADJUSTING SCREW (5/16 x 1-1/4" N.F. hex head

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

5

355111R1

WASHER

21/64" I.D. x 1-1/4" O.D. x no. 13 ga.

3шт.

6

355108R1

CLUTCH LEVER PRESSURE SPRING CUP

3шт.

7

355104R1

CLUTCH BRACKET

1шт.

8

355109R1

PIN

CLUTCH LEVER PIVOT PIN

3шт.

9

355103R1

CLUTCH PRESSURE PLATE

1шт.

10

355102R91

CLUTCH DRIVEN MEMBER (S/N FBK, Serial Range: 229220-247072)

1шт.

(S/N FDBK, Serial Range: 229220-254051)

1шт.

10

355871R91

CLUTCH DRIVEN MEMBER (S/N FBK, Serial Range: 247073-294707)

1шт.

(S/N FDBK 254052 up)

1шт.

11

53795V

RIVET,Csk Hd, 3/16" x 5/16"

CLUTCH FACING RIVET (S/N FBK 247073 to 294707)

20шт.

(S/N FDBK 254052 up)

20шт.

11

61179V

CLUTCH FACING RIVET (S/N FBK, Serial Range: 229220-247072)

36шт.

(S/N FDBK, Serial Range: 229220-254051)

36шт.

12

355087R91

CLUTCH FACING PACKAGE (2 facings) (With 38 rivets, 61179V) (S/N FBK, Serial Range: 229220-247072)

14шт.

55790DXA

LINING

CLUTCH FACING PACKAGE (2 facings) (With 22 rivets, 53795V) (S/N FBK, Serial Range: 247073-294707)

1шт.

(S/N FDBK 254052 up)

1шт.

13

355101R93

CLUTCH, complete, less driven member

1шт.
