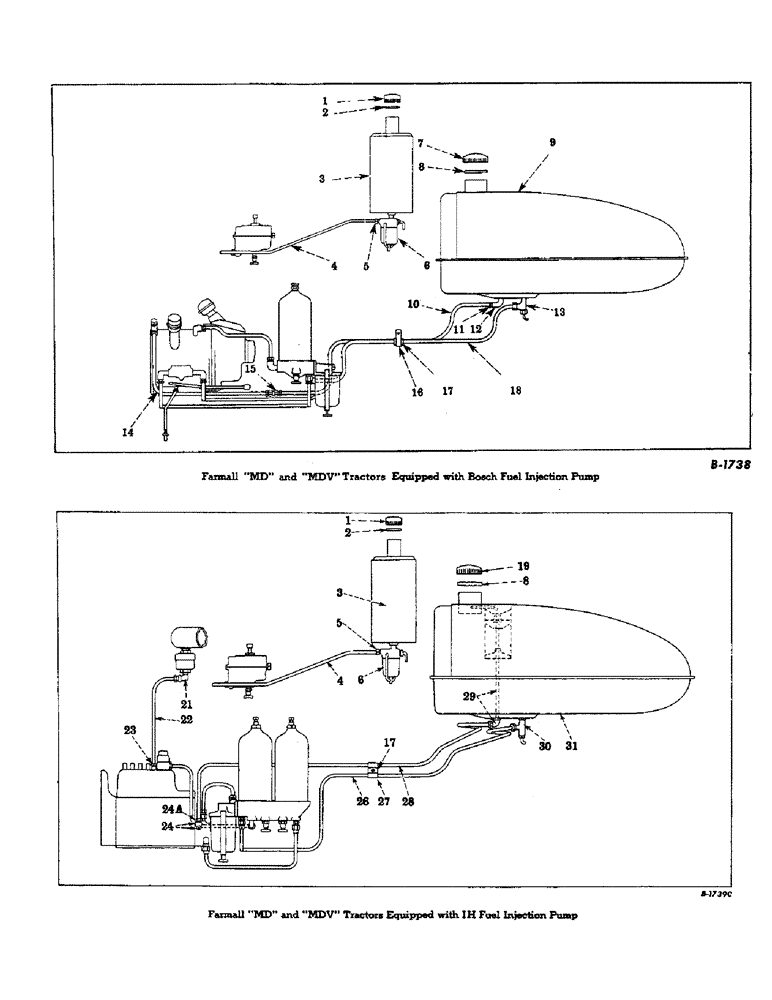

Запчасти Case IH FARMALL M (183) - CHASSIS, FUEL AND GASOLINE TANKS, SUPPORTS AND PIPING (12) - CHASSIS

1

40756D

FILLER CAP

GASOLINE TANK FILLER CAP WITH GASKET, 40752D (Distillate or kerosene)

1шт.

2

40752D

GASKET

GASOLINE TANK FILLER CAP GASKET (Distillate or kerosene)

1шт.

3

48633DX

GASOLINE TANK WITH FILLER CAP, 40756D ("M" - Distillate or kerosene) (S/N FBK, Serial Range: 501-24214)

1шт.

3

60685DAX

GASOLINE TANK WITH FILLER CAP, 40756D (Order 357818R91) (Distillate or kerosene) (S/N FBK 24215 up)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8" N.C. hex hd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

60922DX

GASOLINE PIPE, strainer to carburetor with 2 coupling nuts, 29899D ("MD" and "MDV")

1шт.

5

222-503

TUBE NUT,1/2"-20

GASOLINE PIPE COUPLING NUT ("MD" and "MDV")

2шт.

6

See "Fuel strainer" listed on page 188

1шт.

7

361910R91

PLUG

FUEL TANK FILLER CAP WITH GASKET, 23977DB (Approx. 2-3/4" high)

1шт.

7

23995DC

FILLER CAP

FUEL TANK FILLER CAP WITH GASKET, 23977DB (Not used on tractors equipped with IH pump)

1шт.

8

23977DB

GASKET

FUEL TANK FILLER CAP GASKET

1шт.

9

60918DB

FUEL TANK, complete ("MD" and "MDV")

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

10

61420DX

FUEL RETURN PIPE, rear section with 2 coupling nuts, 37165D ("MD" only) (Order 62838DX) (S/N FBK, Serial Range: 501-55575)

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

10

62838DX

FUEL RETURN PIPE WITH 2 NUTS, 37165D ("MD" and "MDV") Will work for 57629DX or 61420DX FBK 55575 up)

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

11

222-504

TUBE NUT,9/16"-20

COUPLING NUT FOR FUEL PIPES ("MD" and "MDV")

6шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

12

52460DX

FUEL TANK RETURN STAND PIPE WITH ELBOW ("MD" and "MDV")

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

13

56998DA

VALVE

FUEL TANK NEEDLE VALVE WITH NUT ("MD" and "MDV")

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

14

57629DX

FUEL RETURN PIPE, front section with 2 coupling nuts, 37165D ("MD" only) (Order 62838DX) (S/N FBK, Serial Range: 501-55575)

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

15

55999DX

UNION

FUEL RETURN PIPE COUPLING ("MD" only) (S/N FBK, Serial Range: 501-55575)

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

16

60931DA

FUEL TO WATER TRAP AND FUEL RETURN PIPE SUPPORT ("MD" and "MDV") (S/N FBK, Serial Range: 501-)

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

16

354218R1

FUEL TO WATER TRAP AND FUEL RETUFN PIPE SUPPORT ("MD" and "MDV") (S/N up)

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

17

60932D

FUEL TO WATER TRAP AND FUEL RETURN PIPE SUPPORT CUSHION (S/N FDBK, Serial Range: 501-)

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

("MD" and "MDV") (S/N FDBK, Serial Range: 501-136115)

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

17

60127D

FUEL TO WATER TRAP AND FUEL RETURN PIPE SUPPORT CUSHION ("MD" and "MDV") (S/N up)

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

95-11034

WASHER,1/4"

11/32" I.D. x 11/16" O.D. x no. 16 ga.

2шт.

17

60127D

FUEL TO WATER TRAP AND FUEL RETURN PIPE SUPPORT CUSHION ("MD" and "MDV") (S/N FDBK 136116 up)

4шт.

For tractors equipped with IH fuel injection pump.

1шт.

114355

SLOTTED SCREW, 1/4 x 3/4" N.C. (Fillister head) Slotted Fil Hd, 1/4"-20 x 3/4"

1шт.

220064

NUT

HEX NUT, 1/4" N.C.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

60923DX

FUEL PIPE, tank to water trap with 2 coupling nuts, 37165D ("MD" and "MDV")

1шт.

For tractors equipped with Bosch fuel injection pump.

1шт.

19

65024D

CAP

FUEL TANK FILLER CAP WITH GASKET, 23977DA ("MD" and "MDV")

1шт.

21

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

FUEL INJECTION PUMP AIR CLEANER PIPE ELBOW ("MD" and "MDV")

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

22

65030DX

FUEL INJECTION PUMP AIR CLEANER PIPE WITH 2 NUTS, 37165D ("MD" and "MDV")

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

23

222-504

TUBE NUT,9/16"-20

FUEL INJECTION PUMP AIR CLEANER PIPE NUT ("MD" and "MDV")

2шт.

For tractors equipped with IH fuel injection pump.

1шт.

24

37323DX

ELBOW

FUEL RETURN PIPE ELBOW W/NUT, 37165D ("MD" and "MDV") (S/N FDBKM, Serial Range: 501-11426)

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

24

260304R1

FUEL RETURN TUBE ELBOW ("MD" and "MDV") (S/N FDBKM 11427 up)

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

Also 11410

1шт.

24a

222-504

TUBE NUT,9/16"-20

FUEL RETURN PIPE ELBOW NUT ("MD" and "MDV")

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

26

65037DX

FUEL TANK TO WATER TRAP FUEL PIPE WITH 2 NUTS ("MD" and "MDV")

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

27

65036D

FUEL PIPE CLIP ("MD" and "MDV") (S/N FDBK, Serial Range: 501-136115)

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

27

66362D

CLAMP

FUEL PIPE CLAMP ("MD" and "MDV") (S/N FDBK 136116 up)

2шт.

For tractors equipped with IH fuel injection pump.

1шт.

28

65038DX

FUEL RETURN PIPE AND 2 NUTS, 37165D (Pump to tank) ("MD" and "MDV") (S/N FDBK, Serial Range: 501-206422)

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

28

354797R11

FUEL RETURN PIPE AND 2 NUTS, 37165D (Pump to tank) ("MD" and "MDV") (Order 359692R91) (S/N FDBK 206423 up)

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

28

359692R91

FUEL RETURN PIPE WITH ELBOW, 37323DX AND NUT, 37165D (Pump to tank) (MD and MDV) (Will work for 354797R11) (S/N FDBK 206423 up)

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

29

65035DX

FUEL RETURN STAND PIPE AND ELBOW ("MD" and "MDV")

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

30

65524D

FUEL TANK NEEDLE VALVE (For components see "Detail of fuel shut- off valves") ("MD" and "MDV")

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

31

67895DE

FUEL TANK, with filler cap, 361910R91 ("MD" and "MDV")

1шт.

For tractors equipped with IH fuel injection pump.

1шт.

32

51525DX

FUEL TANK, complete ("M" only) (Order 60722DE together with valve, 370828R91 and pipe, 55477DAX) (S/N FDB, Serial Range: 501-12693)

1шт.

32

60721DBXB

FUEL TANK, complete ("M" and "MV") (FBK 24215 up)

1шт.

32

60722DE

FUEL TANK REPLACEMENT PACKAGE (Will work for 51252DBX) ("M" only) (Distillate or kerosene) (S/N FBK, Serial Range: 12694-24214)

1шт.

33

222-503

TUBE NUT,1/2"-20

COUPLING NUT FOR FUEL PIPES ("M" and "MV")

4шт.

34

49564D

VALVE

FUEL TANK NEEDLE VALVE ("M") (Distillate or kerosene) (For components see "Detail of fuel shut-off valves") (S/N FBK, Serial Range: 501-12693)

1шт.

34

370828R91

COCK

GASOLINE TANK NEEDLE VALVE W/NUT, 369989R1 (Will work for 55474D) ("M" and "MV") (Distillate or kerosene) (S/N FBK 12694 up)

1шт.

35

58362DBX

NUT

FUEL PIPE, gasoline tank to strainer with two nuts 39899D ("M" and "MV") (Distillate or kerosene) (S/N FBK 24215 up)

1шт.

36

52646DX

FUEL PIPE, strainer to carburetor with 2 coupling nuts, 29899D ("M") (Distillate or kerosene) (S/N FBK, Serial Range: 501-24214)

1шт.

36

56512DX

PIPE

FUEL PIPE, strainer to carburetor with 2 coupling nuts 29899D (Order 60684DX) ("M") (Gasoline)

1шт.

36

58363DX

EXCITER

FUEL PIPE, strainer to carburetor (Order 60684DX) ("M" and "MV") (Distillate or kerosene)

1шт.

36

60684DX

FUEL PIPE, strainer to carburetor with 2 coupling nuts, 29899D (Will work for 58363DX) ("M" and "MV") (S/N FBK 24215 up)

1шт.

37

9099DC

FUEL TANK AND AIR CLEANER SUPPORT (S/N FBK 24215 up)

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

CAP SCREW, 7/16 x 1-3/8" N.C. hex head

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

38

60673D

FUEL TANK INSULATING PAD, long (S/N FBK 24215 up)

1шт.

39

60681D

FUEL TANK STUD, front (Will work for 65437D)

2шт.

102646

PULLEY

SLOTTED HEX NUT, 7/16" N.F.

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

40

51122DA

FUEL TANK STUD (S/N FBK, Serial Range: 501-24214)

3шт.

102646

PULLEY

SLOTTED HEX NUT, 7/16" N.F.

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

40

60682D

FUEL TANK STUD, rear (Will work for 65437D)

1шт.

102646

PULLEY

SLOTTED HEX NUT, 7/16" N.F.

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

40

65437D

FUEL TANK STUD (Order 60681D front or 60682D rear)

3шт.

25-137

SLOTTED NUT,7/16"-20, G5

SLOTTED HEX NUT, 7/16" N.F.

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

40

358156R1

FUEL TANK STUD, front (Used with hydraulic remote control attachment)

1шт.

41

51121D

WASHER

FUEL TANK PAD (S/N FBK, Serial Range: 501-24214)

3шт.

41

60672D

GASKET

FUEL TANK INSULATING PAD, larger (S/N FBK 24215 up)

1шт.

42

60671D

INSULATOR BLOCK

FUEL TANK INSULATING PAD, small (S/N FBK 24215 up)

3шт.

43

60683D

RETAINER

FUEL TANK INSULATING PAD (Small) (Retainer) (S/N FBK 24215 up)

3шт.

44

51124D

FUEL TANK HOLD DOWN SPRING (S/N FBK, Serial Range: 501-24214)

3шт.

45

51137DDX

FUEL TANK SUPPORT, rear with fuel tank support bottom (Will work for 60921DX)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

51133D

FUEL TANK SUPPORT, front, complete (S/N FBK, Serial Range: 501-24214)

1шт.

52645DX

FUEL PIPE, fuel tank to strainer with 2 coupling nuts, 29899D ("M") (Distillate or kerosene) (S/N FBK, Serial Range: 501-12693)

1шт.

55477DAX

FUEL PIPE, fuel tank to strainer with 2 coupling nuts, 29899D ("M") (Distillate or kerosene) (S/N FBK, Serial Range: 12694-24214)

1шт.

357818R91

GASOLINE TANK SERVICE PACKAGE (Will work for 60685DAX) ("MD" and "MDV") ("M" and "MV" distillate or kerosene) (Consists of band, 357816R1, bracket, 60670DA, two nuts, 105605, two screws, 117296 and tank, 357815R91)

1шт.

365489R92

FUEL GAUGE FILLER CAP (Special) ("M" and "MV")

1шт.

365500R92

FUEL GAUGE FILLER CAP (Special) ("MD" and "MDV")

1шт.
