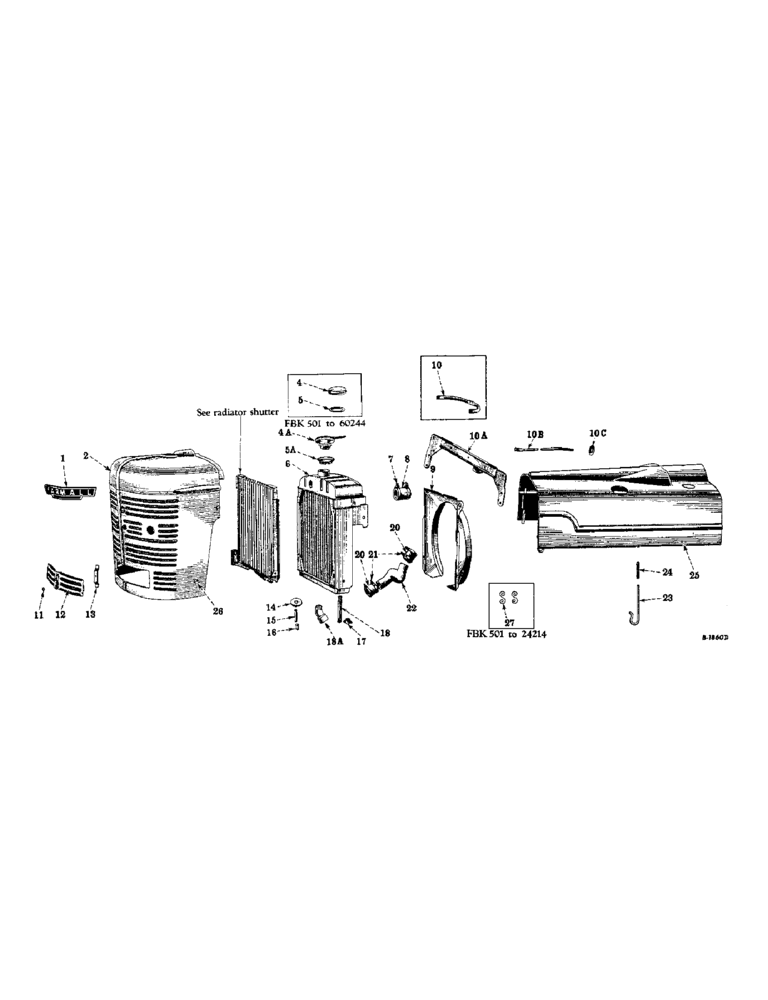

Запчасти Case IH FARMALL M (171) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
49404D
DECAL
NAME PLATE "Farmall" (See 61105D for "International" name plate)
1шт.
.
141888
SPACER
SCREW, no. 7 x 1/2" long countersunk flat head (Will work for 350516R1)
2шт.
2
50202DE
RADIATOR GRILLE (S/N FBK, Serial Range: 501-24214)
1шт.
2
59516DE
RADIATOR GRILLE (S/N FBK 24215 up)
1шт.
4
43983D
CAP
RADIATOR CAP WITH GASKET, 43984D (S/N FBK, Serial Range: 501-602444)
1шт.
4
43983DGV
RADIATOR CAP
Value, Radiator Cap
1шт.
4a
67448DD
CYLINDER END CAP
RADIATOR CAP (Optional with 356710R91) (S/N FBK 60245 up)
1шт.
4a
356710R91
RADIATOR CAP
(Optional with 67448DD)
1шт.
5
43984D
GASKET
RADIATOR CAP GASKET (S/N FBK, Serial Range: 501-60244)
1шт.
5
67088D
RADIATOR CAP GASKET (S/N FBK, Serial Range: 60245-78761)
1шт.
5a
352639R91
GASKET
RADIATOR CAP GASKET (Used only with 67448DC) (S/N FBK, Serial Range: 78762-)
1шт.
6
50970DEX
RADIATOR, complete (Conventional type) (Order 352629R92) (S/N, Serial Range: 501-60244)
1шт.
6
352629R92
RADIATOR, complete with 2 studs, 48825DB and 1 cap, 67448DD (Pressure type) (IH) (Will work for 50970DEX, 67173DDX and 356050R91) (Optional with 351798R92 and 356511R92) (See note A) (S/N FBK, Serial Range: 501-296173)
1шт.
.
(S/N FBK, Serial Range: 501-298075)
1шт.
6
351798R92
RADIATOR, complete with 2 studs, 48825DB and 1 cap, 67448DD (Pressure type) (McCord) (Will work for 50970DEX, 67173DDX and 356050R91) (Optiopnal with 351798R92 and 356511R92) (See note A) (S/N FBK, Serial Range: 501-296173)
1шт.
.
(S/N FDBK, Serial Range: 501-298075)
1шт.
6
356511R92
RADIATOR, complete with 2 studs, 48825DB and 1 cap, 67448DD (Pressure type) (Modine) (Will work for 50970DEX, 67173DDX and 356050R91) (Optional with 352629R92 and 351798R92) (See note A) (S/N FBK, Serial Range: 501-296173)
1шт.
.
(S/N FDBK, Serial Range: 501-298075)
1шт.
6
357158R92
RADIATOR, WITH CAP, 67448DD OR 356710R91 AND TWO STUDS, 48225DB (Optional with 357339R91) (See notes A and B) (S/N FBK 296174 up)
1шт.
6
357339R91
RADIATOR, WITH CAP 67448DD OR 356710R91 AND TWO STUDS, 48225DB (Optional with 357158R91) (See notes A and B) (S/N FBK 296174 up)
1шт.
.
(S/N FDBK 298076 up)
1шт.
7
357870R91
CLAMP
RADIATOR INLET HOSE CLAMP (Will work for 46364H and 91406HA)
2шт.
8
45781D
RADIATOR INLET HOSE, 2-1/8" I.D. x 2-1/2" long, 3 ply ("M" and "MV") (S/N FBK, Serial Range: 501-109444)
1шт.
8
63344D
HOSE
RADIATOR INLET HOSE, 2-1/8" I.D. x 3-1/2" long, 3 ply ("M" and "MV") (S/N FBK 109445 up)
1шт.
8
55175D
HOSE ASSY.
RADIATOR INLET PIPE HOSE, 2-1/8" I.D. x 2-3/4" long, 3 ply ("MD" and "MDV")
1шт.
8
51988D
RADIATOR INLET HOSE (For service on tractors equipped with modine radiator, 356050R91 only)
1шт.
9
49534DCX
HOUSING
FAN HOUSING WITH EXTENSION
1шт.
.
13539R1
BOLT,Sq Hd, 1/4" - 20 x 4 3/4"
MACHINE BOLT, 1/4 x 4-3/4" N.C.
4шт.
.
13000R1
HEX NUT, 1/4" N.C.
4шт.
.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
10
49272DB
RADIATOR BRACE ("M" and "MV") (S/N FBK, Serial Range: 501-63324)
1шт.
10
52707DB
RADIATOR BRACE ("MD" and "MDV") (S/N FBK, Serial Range: 501-65602)
1шт.
.
179815
BOLT,Hex, 5/16" - 18 x 11/16", Gr 5
2шт.
.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3/8 x 7/8" N.C. hex hd
1шт.
.
9635082
NUT,5/16" - 18, Gr 5
2шт.
.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
10a
68282DA
RADIATOR BRACE TIE PLATE ("M" and "MV") (S/N FBK 63325 up)
1шт.
.
("MD" and "MDV") (S/N FBK 65603 up)
1шт.
.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
.
13000R1
HEX NUT, 1/4" N.C.
4шт.
.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
10b
68281D
RADIATOR TIE ROD ("M" and "MV") (S/N FBK 63325 up)
1шт.
10b
69230D
RADIATOR TIE ROD ("MD" and "MDV") (S/N FBK 65603 up)
1шт.
.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
.
280136
NUT,3/8"-16, G8
1шт.
.
425-117
NUT,7/16"-20, G5
HEX NUT, 7/16" N.F.
2шт.
.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
1шт.
10c
115550
LOCK WASHER,Int Tooth, 7/16"
RADIATOR TIE ROD LOCKWASHER (Shakeproof) (Same as 19588D)
1шт.
11
114614
WASHER
RADIATOR GRILLE INSERT LOCKWASHER
1шт.
12
50204DXA
FILTER SCREEN
RADIATOR GRILLE INSERT WITH SCREEN
1шт.
12
50204DXAGV
INSERT
Value, Radiator Grille Insert
1шт.
.
110534
SCREW
no. 10-24 x 7/8" flat head
1шт.
13
45452D
RADIATOR GRILLE INSERT LOCK PLATE
1шт.
14
18464D
RADIATOR PAD
2шт.
15
48825DB
STUD
RADIATOR MOUNTING STUD
2шт.
.
272312
WASHER
HEX NUT, 7/16" N.F. (Castellated) (Cadmium plated)
2шт.
.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
.
Q1515
WASHER
1/2" I.D. x 7/8" O.D. x no. 16 ga. (2 used) (S/N FBK 501, Serial Range: -63324)
4шт.
16
67205D
SPRING
RADIATOR HOLD-DOWN SPRING (Will work for 48826D)
2шт.
17
13047DA
PLUG
RADIATOR DRAIN PIPE CAP
1шт.
18
190699
PIPE,Nipple, 3/8" NPT x 6"
RADIATOR DRAIN PIPE, 3/8" standard pipe, 6" long, threaded both ends
1шт.
18
192194
RADIATOR DRAIN PIPE, 3/8" standard pipe 8" long, threaded both ends (Tractors equipped with short wheel base) Nipple, 3/8" NPT x 8"
1шт.
18a
ELBOW,45 Degree, 3/8" NPT Street
RADIATOR DRAIN PIPE CONNECTION (3/8-45 degree street elbow) (For tractors equipped with short wheel base)
1шт.
20
12875DA
RADIATOR OUTLET HOSE, 2" I.D. x 2-5/8" long, 3 ply
2шт.
21
357870R91
CLAMP
RADIATOR OUTLET HOSE CLAMP (Will work for 29970D and 91406HA)
4шт.
22
6774D
TUBE
RADIATOR OUTLET PIPE ("M" and "MV")
1шт.
22
9227D
RADIATOR OUTLET PIPE ("MD" AND "MDV")
1шт.
23
50997D
HOOK
HOOD CLAMP HOOK
4шт.
.
107762
WASHER,3/32" x 5/8"
PIN, SPLIT, (COTTER), 3/32" x 5/8"
4шт.
24
48707DA
SPRING
HOOD CLAMP HOOK SPRING
4шт.
25
50551DBX
HOOD (Distillate-Gasoline) ("M" and "MV")
1шт.
25
56513DBX
HOOD (Gasoline) ("M" and "MV")
1шт.
25
60906DAX
HOOD ("MD" and "MDV")
1шт.
26
56668D
SCREW
RADIATOR GRILLE FASTENING SCREW (S/N FBK 24215 up)
4шт.
27
50958D
SPRING
RADIATOR GRILLE FASTENER SPRING (Special - "M" only) (S/N FBK, Serial Range: 501-24214)
4шт.
.
351552R1
RIVET, 1/8" diameter x 9/32" head x 7/32" long (Tubular)
8шт.
.
60707D
HOOD HOLD-DOWN WING NUT WASHER (S/N FBK 24215 up)
1шт.
.
Q3506
HYDRAULIC VALVE
HOOD HOLD-DOWN WING NUT (S/N FBK 24215 up)
1шт.
.
61105D
NAME PLATE "Internaitonal" (See 49404D for "Farmall" name plate) SCREW, no. 7 x 1/2" long countersunk flat head
2шт.
