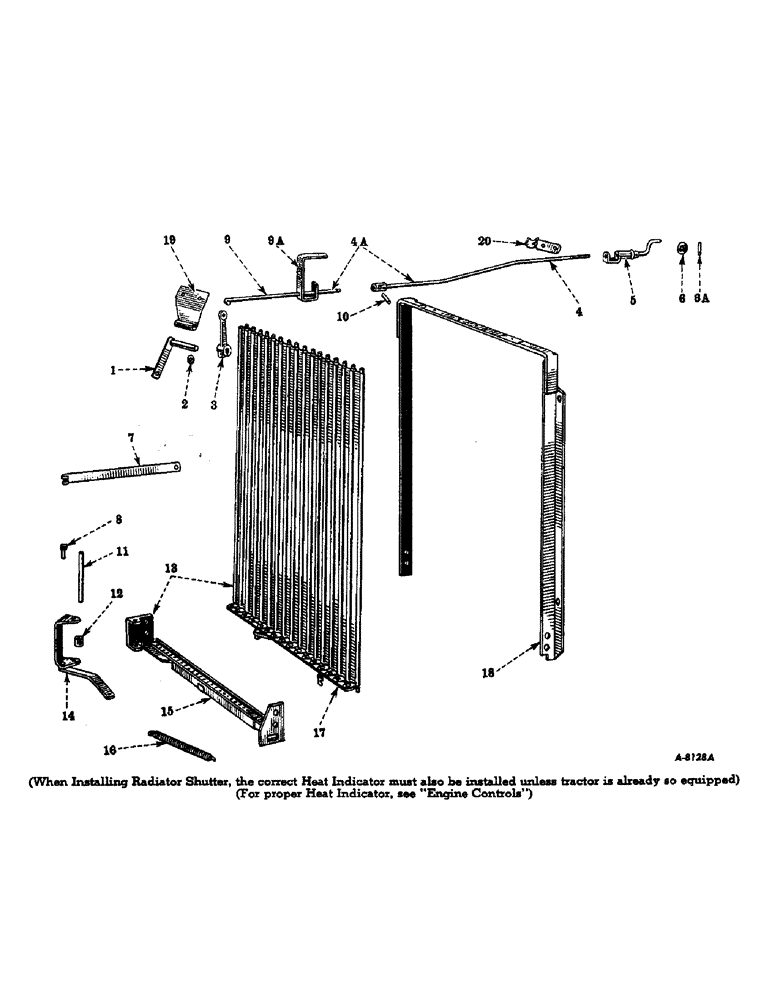

Запчасти Case IH FARMALL M (168) - CHASSIS, RADIATOR SHUTTER AND CONTROLS (12) - CHASSIS

1

353763R91

RADIATOR SHUTTER CONTROL BELL CRANK ARM, lower with crank arm pin W6185 and cotter pin, 107763 ("M" and "MV") (Will work for 49101DA)

1шт.

1

353764R91

RADIATOR SHUTTER CONTROL BELL CRANK ARM, lower with crank arm pin W6185 and cotter pin, 107763 ("MD" and "MDV") (Will work for 59228DA)

1шт.

2

48869D

RADIATOR SHUTTER CONTROL BELL CRANK LEVER ARM KEY

1шт.

3

6739D

RADIATOR SHUTTER CONTROL BELL CRANK LEVER ARM, upper (Optional with 351843R2) ("M" and "MV")

1шт.

3

8934D

RADIATOR SHUTTER CONTROL BELL CRANK LEVER ARM, upper ("MD" and "MDV")

1шт.

3

351843R2

RADIATOR SHUTTER CONTROL BELL CRANK LEVER ARM, upper (Optional with 6739D) ("M" and "MV")

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

13000R1

HEX NUT, 1/4" NC

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

56098DX

RADIATOR SHUTTER CONTROL ROD, rear (Rear section) with coupling and groov pin, 142485 ("M" and "MV")

1шт.

4

61716DX

RADIATOR SHUTTER CONTROL ROD, rear (Rear section) with groov pin 38146D ("MD" and "MDV")

1шт.

4a

53040DR

RADIATOR SHUTTER CONTROL ROD, rear, with front section and rear section, 56098DX ("M" and "MV")

1шт.

4a

61714DR

RADIATOR SHUTTER CONTROL ROD, rear, complete ("MD" and "MDV")

1шт.

218437

HEX JAM NUT, 5/16" N.C.

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

5

6851DB

RADIATOR SHUTTER CONTROL CRANK (Optional with 351841R21) (S/N FBK 21609 up)

1шт.

5

6851DBX

RADIATOR SHUTTER CONTROL CRANK WITH COLLAR, 58264D and pin, 9196T (Will work for 6851DA) (Optional with 351847R91) (S/N FBK, Serial Range: 501-21608)

1шт.

5

351841R21

RADIATOR SHUTTER CONTROL CRANK (Optional with 6851DB)

1шт.

5

351847R91

RADIATOR SHUTTER CONTROL CRANK WITH COLLAR, 58264D and pin, 9196T (Will work for 6851DA) (Optional with 6851DBX)

1шт.

6

58264D

RADIATOR SHUTTER CONTROL CRANK COLLAR (S/N FBK 21609 up)

1шт.

6a

9196T

RADIATOR SHUTTER CONTROL CRANK COLLAR PIN (S/N FBK 21609 up)

1шт.

7

49099D

RADIATOR SHUTTER CONTROL ROD, front ("M" and "MV")

1шт.

7

59231D

RADIATOR SHUTTER CONTROL ROD, front ("MD" and "MDV")

1шт.

8

53055D

CLEVIS PIN,1/4" x 1"

RADIATOR SHUTTER CONTROL ROD FRONT PIN

1шт.

103361

PIN, SPLIT (COTTER)

COTTER PIN, 1/16 x 1/2"

1шт.

95-11028

WASHER,1/4"

9/32" I.D. x 5/8" O.D. x no. 16 ga.

1шт.

9

56097DX

RADIATOR SHUTTER CONTROL ROD, rear (Front section) with groov pin 142485 ("M" and "MV")

1шт.

9

61715DX

RADIATOR SHUTTER CONTROL ROD, rear (Front section) with coupling and groov pin, 142485 ("MD" and "MDV")

1шт.

9a

60680D

RADIATOR SHUTTER CONTROL REAR ROD SUPPORT (S/N FBK 24215 up)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

CAP SCREW, 3/8 x 1-1/8" N.C. hex head

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCREW, 3/8 x 1-3/4" N.C. hex head

1шт.

13000R1

HEX NUT, 3/8" N.C.

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

142485

GROOVED PIN,1/8" x 5/8", Type A

Pin, Grooved, , radiator shutter control rod, rear, coupling (Will work for 38146D) 1/8" x 5/8", Type A

1шт.

11

51619D

BELLCRANK AND LINK PIN

1шт.

112526

COTTER PIN, 1/16 x 3/8"

2шт.

12

55328D

BELLCRANK PIN SPACER

1шт.

13

52828D

SHUTTER UNIT, complete

1шт.

14

51620D

BELLCRANK AND LINK, complete

1шт.

15

52830D

BOTTOM TIE BAR AND BEARING BAR, complete

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2" N.C. round head

4шт.

13000R1

HEX NUT, 1/4"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

37730D

BELLCRANK AND OPERATING LINK SPRING

1шт.

17

52827D

SHUTTER AND OPERATING BAR, complete

1шт.

18

52829D

FRAME AND BEARING BAR, complete

1шт.

19

59232D

RADIATOR SHUTTER BELL CRANK BRACKET ("MD" and "MDV") (S/N FDBK, Serial Range: 501-272124)

1шт.

19

355900R2

RADIATOR SHUTTER BELL CRANK BRACKET ("MD" and "MDV") (S/N FDBK 272125 up)

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

CAP SCREW, 7/16 x 3/4" N.C. hex head

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

20

53039D

RADIATOR SHUTTER CONTROL AND MAGNETO GROUNDING SWITCH BRACKET (S/N FBK, Serial Range: 501-22973)

1шт.

20

56682D

RADIATOR SHUTTER CONTROL AND IGNITION SWITCH MOUNTING BRACKET (S/N FBK 22974 up)

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

CAP SCREW, 7/16 x 2-1/2" N.C. hex head

1шт.

271500

SOCKET

HEX NUT, 7/16" N.C.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

49098DR

RADIATOR SHUTTER, complete (Hardy Mfg. Corporation)

1шт.

53044D

RADIATOR SHUTTER CONTROL CRANK WASHER (S/N FBK, Serial Range: 501-21608)

1шт.

53043D

RADIATOR SHUTTER CONTROL REAR ROD SUPPORT (S/N FBK, Serial Range: 501-24214)

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

13000R1

HEX NUT, 1/4" N.C.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

W6185

RADIATOR SHUTTER LOWER CONTROL BELLCRANK ARM PIN (Will work for 33453A)

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.
