Запчасти Case IH FARMALL M (163) - ELECTRICAL SYSTEM, CARBURETED AND DIESEL ENGINE, COMBINATION REAR LIGHT AND TAIL LIGHT ATTACHMENT (06) - ELECTRICAL SYSTEMS

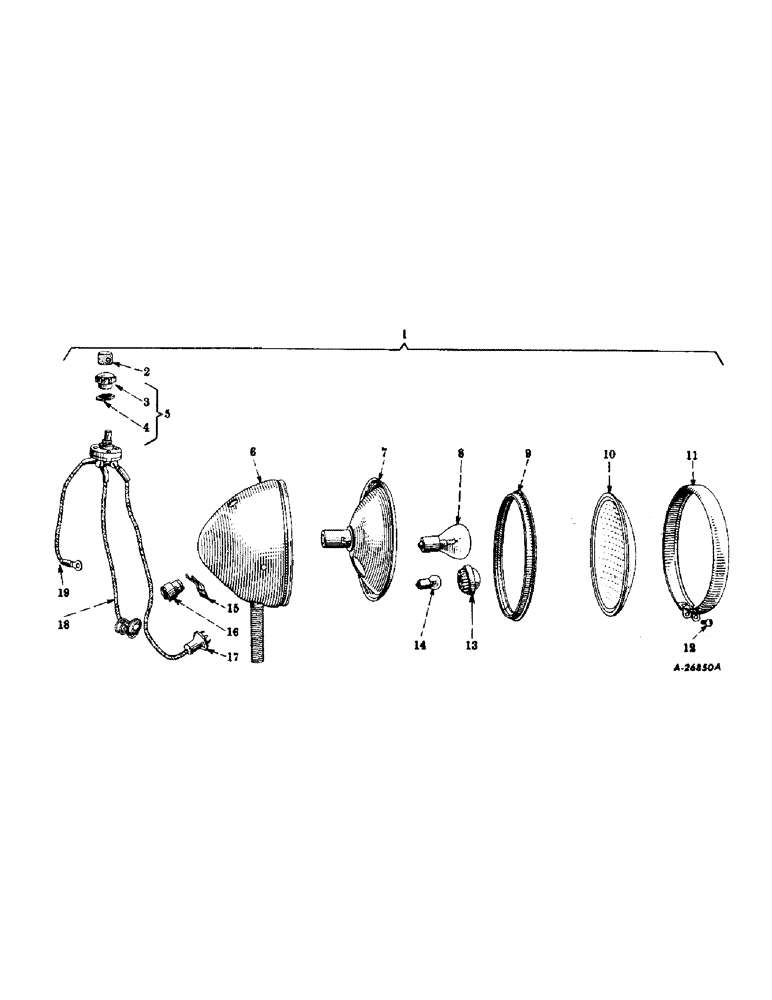

Схема запчастей Case IH FARMALL M - (163) - ELECTRICAL SYSTEM, CARBURETED AND DIESEL ENGINE, COMBINATION REAR LIGHT AND TAIL LIGHT ATTACHMENT (06) - ELECTRICAL SYSTEMS
18
15
10
14
17
2
16
6
8
19
9
3
1
13
11
12
7
4
5

Артикул

Название

Примечание

Количество

1

361985R93

LAMP

COMBINATION REAR LIGHT AND TAIL LIGHT (6-volt)

1шт.

1

361986R93

LAMP

COMBINATION REAR LIGHT AND TAIL LIGHT (12-volt)

1шт.

2

355423R91

SWITCH KNOB WITH SCREW (Metal) (Used with 354309R91)

1шт.

3

359773R91

SWITCH KNOB (Plastic) (Used only with 359682R91)

1шт.

4

355425R1

SWITCH RETAINING NUT

1шт.

5

359682R91

SWITCH

LIGHT SWITCH, w/knob, 359773R91 and nut, 355425R91 (Will work for 354309R91)

1шт.

6

REAR LIGHT BODY (Order light complete)

1шт.

7

356590R91

REAR LIGHT REFLECTOR

1шт.

8

B50206

LAMP

REAR LAMP (SC-6-8 volt, 32 candlepower)

1шт.

9

A41264

BULB,#1156, 12V

REAR LAMP (SC-12-16 volt, 32 canldepower)

1шт.

9

53527D

GASKET

REAR LIGHT GASKET

1шт.

10

350478R1

LENS

REAR LIGHT LENS

1шт.

11

53525DA

MOLDING

REAR LIGHT MOULDING

1шт.

12

53526D

SCREW

REAR LIGHT DOOR SCREW

1шт.

13

356592R91

JEWEL

1шт.

14

115273

TAIL LIGHT LAMP (SC-6-8 volt, 1 candlepower)

1шт.

14

131282

BULB,C2V, #53, 14.4V

TAIL LIGHT LAMP (SC-12-16 volt, 1 candlpower)

1шт.

15

79408H

TERMINAL RETAINING SPRING

1шт.

16

79407H

PLATE

TERMINAL PLATE

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SLOTTED SCREW, no. 8-32 x 5/16" round head (Cadmium plated)

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

17

356591R91

SOCKET AND WIRING (Switch to red light)

1шт.

18

354304R91

SOCKET TO SWITCH CABLE WITH SPRING

1шт.

19

354303R91

SWITCH TO TERMINAL PLATE CABLE

1шт.

68417D

INSULATOR

TERMINAL PLATE PACKAGE, complete

1шт.

Выбрано товаров: 25
