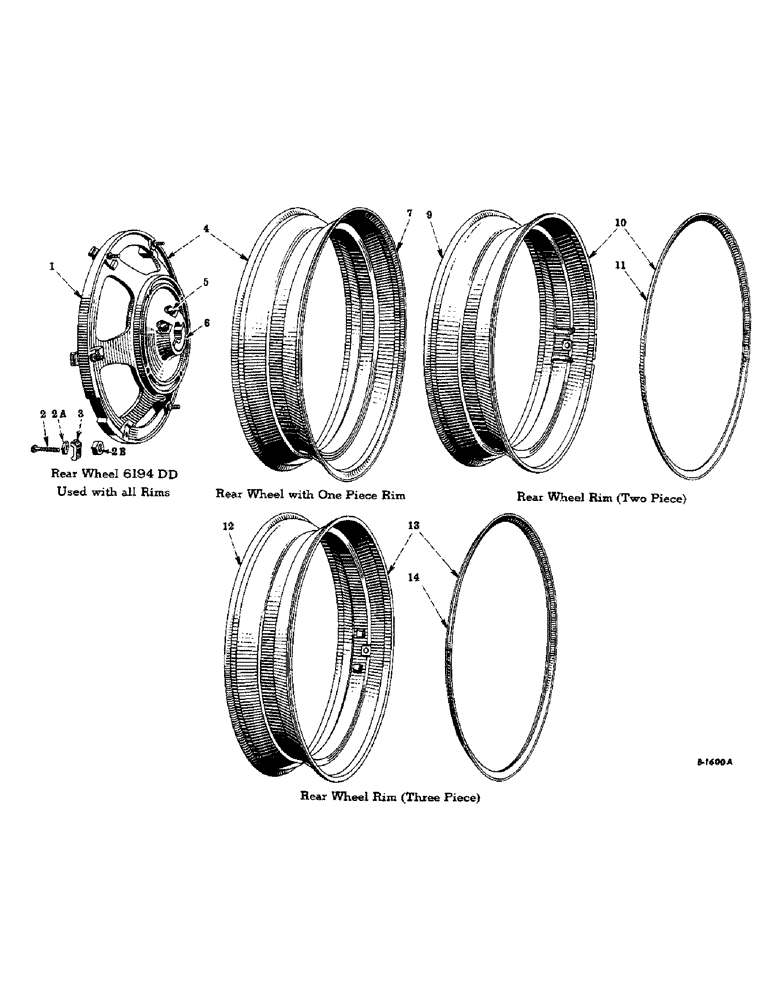

Запчасти Case IH FARMALL HV (156) - CHASSIS, REAR WHEELS, PNEUMATIC TIRE EQUIPMENT, LESS TIRES, FARMALL "H" ONLY (12) - CHASSIS

1

6194DD

REAR WHEEL (Less rim and tire) (Used with all rims)

2шт.

179961

CAP SCREW, 3/4 x 4-1/4" N.C. hex head

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

Q3478

WASHER

STEEL WASHER, 25/32" I.D. x 1-1/4" O.D. x no. 14 ga.

8шт.

2

48986DA

REAR WHEEL RIM CLAMP BOLT

12шт.

2a

351833R1

NUT

REAR WHEEL RIM MOUNTING JAM NUT

12шт.

2b

351832R1

NUT

REAR WHEEL RIM MOUNTING NUT

12шт.

3

48984D

CLAMP

REAR WHEEL RIM CLAMP

24шт.

4

355020R91

REAR WHEEL, 6194DD with rim, 53926D, 45417D or 45420D, complete (Will owrk for 53927D) (6.00 x 36 rim) (9.00 x 36 tire)

2шт.

4

355023R91

REAR WHEEL, 6194DD with rim, 55561D, 45417D or 45420D, complete (Will work for 55568D) (DW x 38 rim) (9 x 38 tire)

2шт.

4

355024R91

REAR WHEEL, 6194DD with rim, 55562D, 45417D or 45420D, complete (Will work for 55569D) (DW 9 x 38 rim) (10 x 38 tire)

2шт.

4

355025R91

REAR WHEEL, 6194DD with rim, 55563D, 45417D or 45420D, complete (Will work for 55570D) (DW 10 x 28 rim) (11 x 38 tire)

2шт.

4

355027R91

REAR WHEEL, 6194Dd with rim, 55564D, 45417D or 45420D, complete (Will work for 352768R91) (DW 11 x 38 rim) (12 x 38 tire)

2шт.

5

179961

FOLLOWS REFERENCE NO.1

1шт.

6

6192DA

REAR WHEEL HUB CLAMP (Order 6192DCX) (S/N, Serial Range: 501-37213)

2шт.

6

6192DC

CLAMP

REAR WHEEL HUB CLAMP (S/N 37214 up)

2шт.

6

6192DCX

REAR WHEEL HUB CLAMP WITH 4 SCREWS, 179961 (Will work for 6192DA) (S/N, Serial Range: 601-37213)

2шт.

7

53926D

REAR WHEEL RIM (1 piece) (Will work for 45413D, 45414D, 45423D) (6.005 x 36 rim)

1шт.

(6.00 x 36 rim) (9.00 x 36 tire)

2шт.

7

55561D

REAR WHEEL RIM (1 piece) (DW 8 x 38 rim) (9 x 38 tire)

2шт.

7

55562D

REAR WHEEL RIM (1 piece) (DW 9 x 38 rim) (10 x 38 tire)

2шт.

7

55563D

RIM

REAR WHEEL RIM (1 piece) (DW 10 x 38 rim) (11 x 38 tire)

2шт.

7

55564D

REAR WHEEL RIM (1 piece) (DW 11 x 38 rim) (12 x 38 tire)

2шт.

7

68455D

REAR WHEEL RIM (1 piece) (DW 7 x 38 rim) (8 x 38 tire)

2шт.

9

45866D

REAR WHEEL RIM BASE (Used with rim, 45865D)

2шт.

10

45865D

REAR WHEEL RIM (2 piece) (Consisting of base, 45866D and ring, 39821D) (Optional with 45867D) (8.00 T x 36 rim) (10.00 x 36 tire)

1шт.

(11.25 x 36)

6шт.

(12.00 x 36)

1шт.

11

38921D

REAR WHEEL RIM SIDE RING (Used with rim, 45865D)

2шт.

12

45868D

REAR WHEEL RIM BASE (Used with rim, 45867D)

2шт.

13

45867D

REAR WHEEL RIM (3 piece) (Consisting of base, 45868D and rim side and locking ring, 37656D) (Optional with 45865D) (8.00 T x 36 rim) (10.00 x 36 tire)

1шт.

(11.25 x 36 tire)

2шт.

(12 x 36 tire)

1шт.

(13 x 36 tire)

1шт.

14

37656D

REAR WHEEL RIM SIDE RING WITH LOCKING RING (Used with rim, 45867D)

2шт.

39174D

REAR WHEEL RIM SIDE RING (Used with rim 57202D)

2шт.

42330D

REAR WHEEL RIM SIDE RING (Used withrim, 56484DA)

2шт.

45413D

REAR WHEEL RIM (1 piece) (Order 53926D) (5.50 R x 36 rim)

2шт.

45414D

REAR WHEEL RIM, complete (2 piece) (Order 53926D) (5.50 R x 36 rim)

2шт.

45415D

REAR WHEEL RIM BASE (Used with rim, 45414D) (S/N, Serial Range: 501-1226)

2шт.

45416D

REAR WHEEL RIM RING (Used with rim, 45414D) (S/N, Serial Range: 501-1226)

2шт.

45417D

REAR WHEEL RIM, complete (2 piece) (Optional with 45420D or 53926D) (6.00 S x 36 rim)

2шт.

45418D

REAR WHEEL RIM BASE (Used with rim, 45417D) (S/N, Serial Range: 501-1226)

2шт.

45419D

REAR WHEEL RIM RING (Used with rim, 45417D) (S/N, Serial Range: 501-1226)

2шт.

45420D

REAR WHEEL RIM, complete (3 piece) (Optional with 45417D or 53926D) (6.00 S x 36 rim)

2шт.

45421D

REAR WHEEL RIM BASE (Used with rim, 45420D) (S/N, Serial Range: 501-1226)

2шт.

45422D

REAR WHEEL RIM SIDE AND LOCKING RING (Used with rim, 45420D) (S/N, Serial Range: 501-1226)

2шт.

45422D

REAR WHEEL RIM SIDE OUTER RING (Used with rim, 45423D) (S/N, Serial Range: 501-1226)

2шт.

45423D

REAR WHEEL RIM, complete (4 piece) (Order 53926D) (6.00 S x 36 rim)

2шт.

45424D

REAR WHEEL RIM BASE (Used with rim, 45423D) (S/N, Serial Range: 501-1226)

2шт.

45425D

REAR WHEEL RIM SIDE INNER RING (Used with rim, 45423D) (S/N, Serial Range: 501-1226)

2шт.

55662D

REAR WHEEL DRIVING LUG FILLER BLOCK (S/N, Serial Range: 501-10249)

4шт.

56483D

REAR WHEEL RIM BASE (Used with rim, 56484DA)

2шт.

56484DA

REAR WHEEL ATTACHED CLAMP RIM (2 piece) (Consisting of base, 56483D and ring, 42330D) (Optional with 57202D) (8.00 T x 40 rim) (9 x 40 tire)

1шт.

(9.00 x 40 tire)

1шт.

(10.00 x 40 tire)

2шт.

13418R1

BOLT

MACHINE BOLT, 5/8 x 3" N.C.

12шт.

114820

HEX NUT, 5/8" N.C.

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

57201D

REAR WHEEL RIM BASE (Used with rim, 57202D)

2шт.

57202D

REAR WHEEL ATTACHED CLAMP RIM (3 piece) (Consisting of base, 57201D and ring, 39174D) (Optional with 46484DA) (8.00 T x 40 rim) (9 x 40 tire)

1шт.

(9.00 x 40 tire)

1шт.

(10.00 x 40 tire)

2шт.

13418R1

BOLT

MACHINE BOLT, 5/8 x 3" N.C.

12шт.

114820

HEX NUT, 5/8" N.C.

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

58119D

REAR WHEEL, 6194DC with rim, 45867D (8.00 T X 36 rim) (10.00 x 36 tire)

1шт.

(11.25 x 36 tire)

2шт.

61039D

REAR WHEEL ATTACHED CLAMP RIM (2 piece) (Consisting of base, 61041D and ring, 61043D) (Optional with 61040D) (6.00 S x 40 rim) (8.25 x 40 tire)

2шт.

350598R1

MACHINE BOLT, 5/8 x 3" N.C.

12шт.

351832R1

NUT

HEX NUT, 5/8" N.C.

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

61040D

REAR WHEEL ATTACHED CLAMP RIM (3 piece) (Consisting of base, 61042D and ring, 61044D) (Optional with 61039D) (6.00 S x 40 rim) (8.25 x 40 tire)

2шт.

350598R1

MACHINE BOLT, 5/8 x 3" N.C.

12шт.

351832R1

NUT

HEX NUT, 5/8" N.C.

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

61041D

REAR WHEEL RIM BASE (Used with rim, 61039D)

2шт.

61042D

REAR WHEEL RIM BASE (Used with rim, 61040D)

2шт.

61043D

REAR WHEEL RIM SIDE RING (Used with rim, 61039D)

2шт.

61044D

REAR WHEEL RIM SIDE RING (Used with rim, 61040D)

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Used as plug for 5th speed lockout hole) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

2

355440R1

REAR WHEEL HUB CLAMP (S/N 347922 up)

4шт.

355441R1

BOLT

REAR WHEEL HUB CLAMP BOLT

8шт.

Ref #2 - s/b 48985DA

1шт.

3

350561R91

REAR WHEEL RIM BASE (Used with rim, 65168D)

2шт.

4

65168D

REAR WHEEL RIM (2 piece) (Consisting of base, 350561R91 and ring, 38921D) (8.00 x 36 rim) (9.00 x 36 tire) (S/N, Serial Range: 109980-230692)

2шт.

5

38921D

REAR WHEEL RIM SIDE RING

2шт.

6

55563D

RIM

REAR WHEEL RIM (1 piece) (DW 10 x 38 rim) (11 x 38 tire) (S/N 230693 up)

2шт.

6

55564D

REAR WHEEL RIM (1 piece) (DW 11 x 38 rim) (12 x 38 tire) (S/N 230693 up)

2шт.

7

351832R1

NUT

REAR WHEEL RIM MOUNTING NUT (S/N 230693 up)

12шт.

8

48984D

CLAMP

REAR WHEEL RIM CLAMP (S/N 230693 up)

24шт.

9

351833R1

NUT

REAR WHEEL RIM MOUNTING JAM NUT (S/N 230693 up)

12шт.

10

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

REAR WHEEL RIM CLAMP BOLT (S/N 230693 up)

12шт.

11

45866D

REAR WHEEL RIM BASE (Used with rim, 45865D)

2шт.

12

45865D

REAR WHEEL RIM (2 piece) (Consisting of base, 45866D and side ring, 38921D) (Optional with 45867D) (8.00 x 36 rim) (9.00 x 36 tire) (S/N 230693 up)

2шт.

(12 x 36 tire)

1шт.

(13 x 36 tire)

1шт.

13

38921D

REAR WHEEL RIM SIDE RING (Used with rim, 45865D)

2шт.

14

45868D

REAR WHEEL RIM BASE (Used with rim, 45867D)

2шт.

15

45867D

REAR WHEEL RIM (3 piece) (Consisting of base, 45868D and rim side and locking ring, 37656D) (Optional with 45865D) (8.00 T x 36 rim) (9.00 x 36 tire) (S/N 230693 up)

2шт.

(12 x 36 tire)

1шт.

(13 x 36 tire)

1шт.

16

37656D

REAR WHEEL RIM SIDE RING WITH LOCKING RING (Used with rim 45867D)

2шт.

351557R91

REAR WHEEL WITH CLAMP, 351554R1, complete (Order 355447R92) (S/N, Serial Range: 109988-230692)

1шт.

351864R92

REAR WHEEL RIM WITH CLAMP (1 piece) (8.00 x 36 rim) (S/N 230693 up)

2шт.

13454R1

MACHINE BOLT, 5/8 x 3-1/2" N.C. square head

12шт.

351832R1

NUT

HEX NUT, 5/8" N.C.

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

355022R93

REAR WHEEL, 355439R2 with rim, 45865D or 45867D, complete

2шт.

355026R93

REAR WHEEL, 355439R2 with rim, 55563D, complete

2шт.

355028R93

REAR WHEEL, 355439R2 with rim, 55564D, complete

2шт.

355031R94

REAR WHEEL, 355439R2 with rim, 351864R92, complete

2шт.

355447R92

REAR WHEEL, 355439R2 with 2 clamps, 355440R1 and 4 bolts, 355441R1 (Will work for 6325DF, 351553R1 and 351557R1) (S/N, Serial Range: 109988-347921)

2шт.
