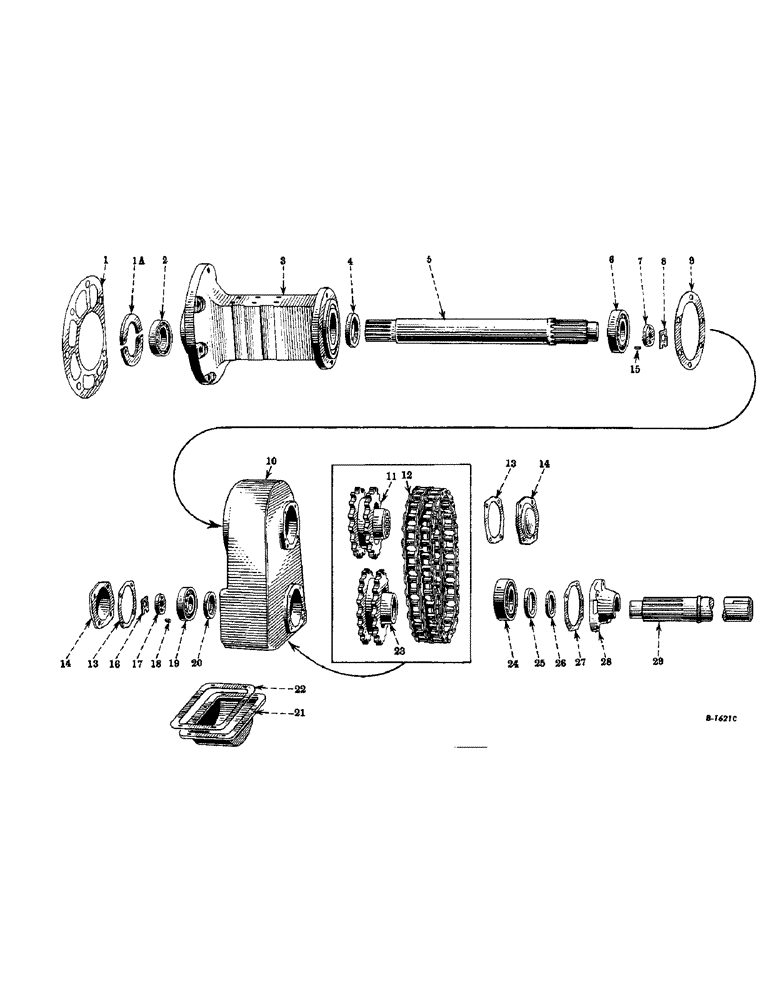

Запчасти Case IH FARMALL HV (142) - CHASSIS, REAR AXLE, FARMALL "HV" ONLY (12) - CHASSIS

1

49789D

GASKET

REAR AXLE CARRIER GASKET

2шт.

1a

353158R1

REAR AXLE DRIVE SPROCKET SHAFT BALL BEARING RETAINER, inner (S/N 285198 up)

4шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

CAP SCREW, 7/16-14 N.C. x 1" hex head

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

1a

353159R91

REAR AXLE INNER BALL BEARING RETAINER PACKAGE (Consists of 2 retainers, 353158R1) (will work for 43718D) (S/N, Serial Range: 109988-285197)

2шт.

2

ST227

REAR AXLE DRIVE SPROCKET SHAFT BALL BEARING INNER

2шт.

item # 2, st227 bearing S/B ST227B djo 8/10/98

1шт.

3

9479D

REAR AXLE HOUSING CARRIER, L.H.

1шт.

3

9480D

REAR AXLE HOUSING CARRIER, R.H.

1шт.

179932

SCREW,Hex, 5/18" - 11 x 2 1/4"

CAP SCREW, 5/8-11 N.C. x 2-1/4" hex head

6шт.

179933

CAP SCREW, 5/8-11 N.C. x 2-1/2" hex head

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

13шт.

4

64935D

SEAL

REAR AXLE DRIVE SPROCKET SHAFT OIL SEAL

2шт.

5

64934D

REAR AXLE DRIVE SPROCKET SHAFT

2шт.

6

ST229

BALL BEARING,130 mm OD x 31 mm

REAR AXLE DRIVE SPROCKET SHAFT BALL BEARING, outer

2шт.

7

64228DX

REAR AXLE DRIVE SPROCKET SHAFT BEARING (OUTER) RETAINER WASHER WITH PIN, 33659D

2шт.

181505

CAP SCREW, 3/4-16 N.F. x 1-1/2" hex head

2шт.

8

63206D

LOCK WASHER

REAR AXLE DRIVE SPROCKET SHAFT BEARING (OUTER) RETAINER WASHER LOCK

2шт.

9

64938D

REAR AXLE HOUSING GASKET

2шт.

10

350345R11

REAR AXLE HOUSING WITH PLUG, 103870 and 103876 (S/N 263782 up)

2шт.

(REVERSE DIRECTION ATTACHMENT)

2шт.

10

350350R91

REAR AXLE HOUSING, complete (Will work for 9487DX) (S/N, Serial Range: 501-263781)

1шт.

103870

PIPE PLUG, 1" square head

2шт.

103876

PIPE PLUG, 1" countersunk head

2шт.

11

64936D

REAR AXLE DRIVE SPROCKET (17 teeth)

2шт.

12

354005R91

CHAIN (AG)

REAR AXLE DRIVE CHAIN

2шт.

13

64939D

GASKET

REAR AXLE HOUSING COVER GASKET

4шт.

14

9488D

REAR AXLE HOUSING COVER

4шт.

NLS

NO LONGER SERVICED

16шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

15

33659D

REAR AXLE DRIVE SPROCKET SHAFT BEARING (OUTER) RETAINER WASHER PIN

2шт.

16

63206D

LOCK WASHER

REAR AXLE BEARING (INNER) RETAINER WASHER LOCK

2шт.

17

67399DX

REAR AXLE BALL BEARING (INNER) RETAINER WASHER WITH PIN, 33659D

2шт.

181505

CAP SCREW, 3/4-16 N.F. x 1-1/4" hex head

2шт.

18

33659D

REAR AXLE BEARING (INNER) RETAINER WSHER PIN

2шт.

19

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

REAR AXLE BALL BEARING, inner

2шт.

20

65073D

REAR AXLE BEARING SPACER

2шт.

21

9489DX

REAR AXLE HOUSING WITH ONE PLUG, 103867 (S/N, Serial Range: 501-263781)

2шт.

21

350346R11

REAR AXLE HOUSING PAN WITH PLUG, 103867 (S/N 263782 up)

2шт.

(REVERSE DIRECTION ATTACHMENT)

2шт.

103867

PLUG

PIPE PLUG, 3/8" square head

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

CAP SCREW, 3/8-16 N.C. x 1-1/8" hex head

8шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

22

64953D

REAR AXLE HOUSING PAN GASKET (S/N, Serial Range: 501-263781)

2шт.

22

350347R1

GASKET

REAR AXLE HOUSING PAN GASKET (S/N 263782 UP)

2шт.

(REVERSE DIRECTION ATTACHMENT)

2шт.

23

65074DA

REAR AXLE SPROCKET (18 teeth)

2шт.

24

73653R91

BEARING ASSY,75 mm ID x 130 mm OD x 1.628"

REAR AXLE BALL BEARING, outer (Will work for 65115H)

2шт.

25

48776D

SEAL ASSY.

REAR AXLE OIL SEAL (Optional with 358780R91 and 358819R91)

2шт.

25

358780R91

OIL SEAL

REAR AXLE OIL SEAL (Optional with 48776D and 358819R91)

2шт.

25

358819R91

OIL SEAL

REAR AXLE OIL SEAL (Optional with 48776D and 358780R91)

2шт.

26

45085D

SEALING WASHER

REAR AXLE FELT WASHER

2шт.

27

65076D

GASKET

REAR AXLE HOUSING CAP GASKET

2шт.

28

9490DX

REAR AXLE HOUSING CAP WITH OIL SEAL, 48776D and washer, 45085D

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

CAP SCREW, 1/2-13 N.C. x 1-3/4" hex head

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

29

64954DB

REAR AXLE

2шт.

350354R1

REAR AXLE DRIVE PINION (39 teeth) (Tractors equipped with reverse direction attachment)

2шт.

350355R1

REAR AXLE GEAR (47 teeth) (Tractors equipped with reverse direction attachment)

2шт.

354003R91

REAR AXLE DRIVE CHAIN CONNECTING LINK (Will work for 1773D)

1шт.

354004R91

REAR AXLE DRIVE CHAIN ROLLER LINK (Will work for 1774D)

1шт.
