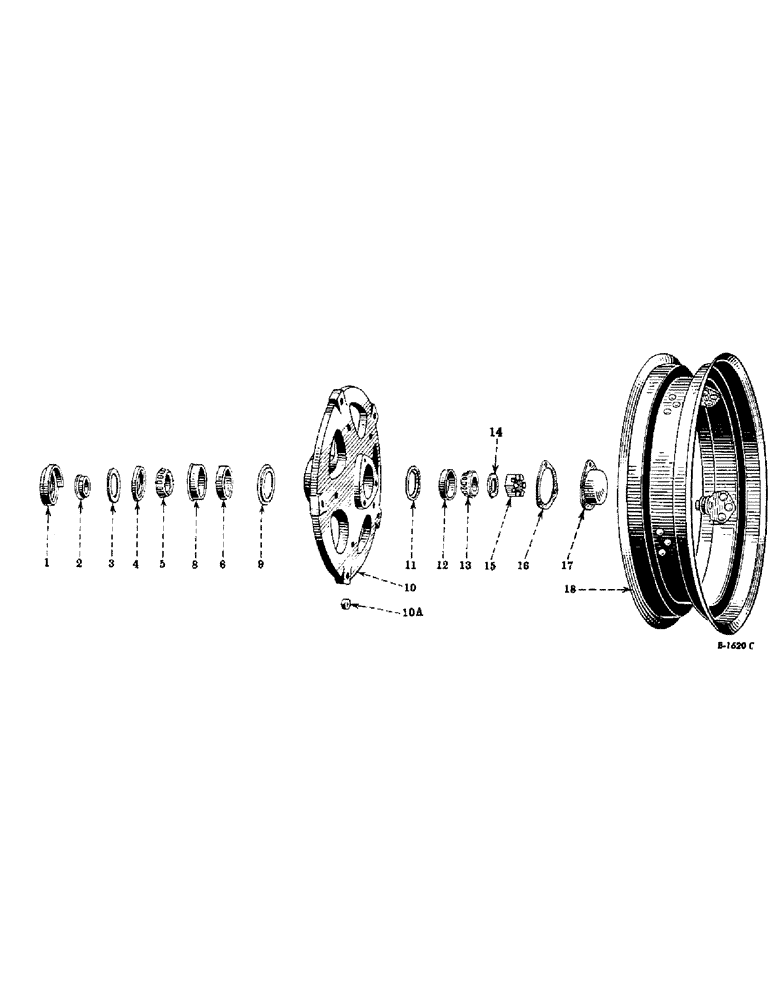

Запчасти Case IH FARMALL HV (136) - CHASSIS, FRONT WHEELS, PNEUMATIC TIRES, FARMALL "HV" ONLY (12) - CHASSIS

35487R91

ADJUSTABLE TREAD FRONT WHEEL, 9504DXA with rim, 65167D, complete

2шт.

1

48701D

SHIELD

FRONT WHEEL DUST SHIELD

2шт.

2

51901D

SPACER

FRONT WHEEL BEARING SPACER

2шт.

3

ST227B

BALL BEARING,60mm ID x 110mm OD x 22mm W

FRONT WHEEL FELT WASHER

2шт.

4

48704D

SEAL

FRONT WHEEL OIL SEAL (Optional with 358779R91 and 358818R91)

2шт.

4

358779R91

OIL SEAL

FRONT WHEEL OIL SEAL (Optional with 48704D and 358818R91)

2шт.

4

358818R91

OIL SEAL

FRONT WHEEL OIL SEAL (Optional with 48704D and 358779R91)

2шт.

5

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

FRONT WHEEL INNER ROLLER BEARING CONE

2шт.

6

ST328A

BALL BEARING,65mm ID x 120mm OD x 23mm W

FRONT WHEEL INNER ROLLER BEARING CUP

2шт.

8

48703D

RETAINER

FRONT WHEEL FELT WASHER RETAINER

2шт.

9

60290DA

RETAINER

FRONT WHEEL BEARING GREASE RETAINER, inner

2шт.

10

9504DXA

FRONT WHEEL, complete

2шт.

181779

MACHINE BOLT, 5/8 x 2-1/2" N.C.

10шт.

10a

352777R1

NUT

HEX NUT, 5/8"

10шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

STEEL WASHER, 21/32" I.D. x 1-5/16" O.D. x no. 13 ga.

10шт.

11

60291D

RETAINER

FRONT WHEEL BEARING GREASE RETAINER, outer

2шт.

12

ST869

CUP ASSY.

FRONT WHEEL OUTER ROLLER BEARING CUP

2шт.

13

ST771A

ROLLER BEARING,34.92mm ID x 23.9mm W

FRONT WHEEL OUTER ROLLER BEARING CONE

2шт.

14

353838R1

WASHER

FRONT WHEEL OUTER BEARING RETAINER WASHER (S/N 307710 up)

2шт.

15

6245D

NUT

FRONT WHEEL OUTER BEARING RETAINER NUT (Order nut, 427642 and washer, 353838R1) (S/N, Serial Range: 501-307709)

2шт.

NLS

NO LONGER SERVICED

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

427642

SLOTTED NUT,7/8"-9, G5

SLOTTED HEX NUT, 7/8" N.C. (With washer, 353838R1 will work for 6245D) (S/N 501 to 307709)

2шт.

15

361138R1

NUT

SLOTTED HEX NUT, 7/8" N.F. (S/N 307710 up)

2шт.

16

48547D

GASKET

FRONT WHEEL HUB CAP GASKET

2шт.

17

48546DA

FRONT WHEEL HUB CAP (Optional with 365127R1)

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

17

365127R1

FRONT WHEEL HUB CAP (Optional with 48546DA)

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

03320

LOCKWASHER, 5/16"

6шт.

18

65167D

FRONT WHEEL RIM (4.40 E x 20 DC for 6.00 x 20 tire)

2шт.
