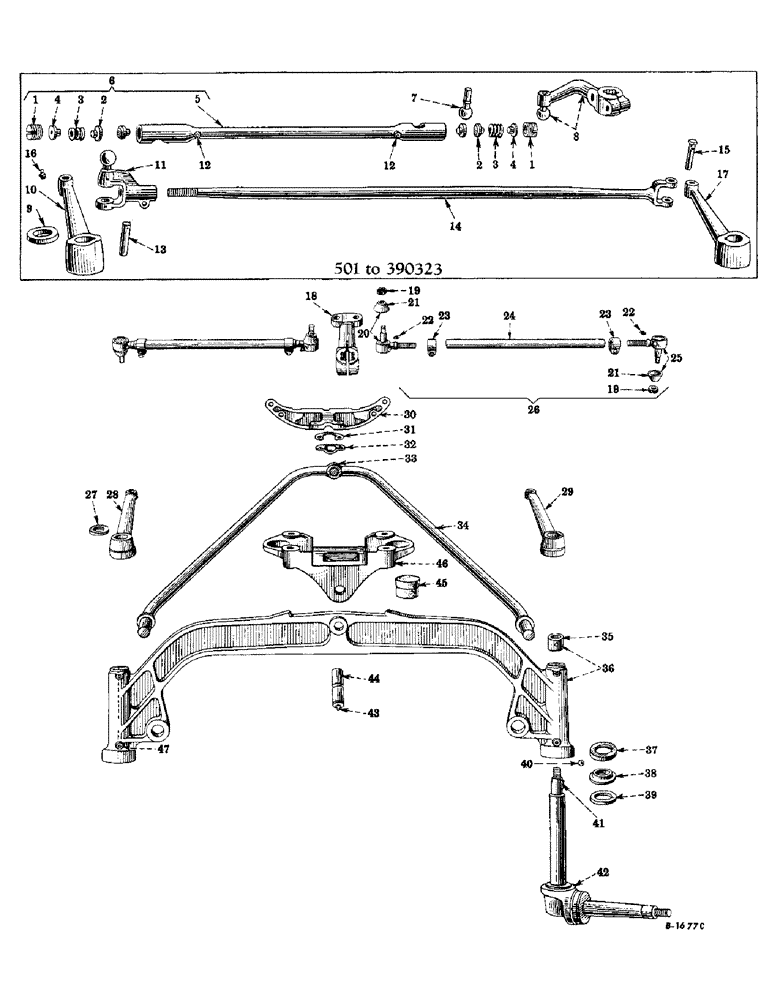

Запчасти Case IH FARMALL HV (128) - CHASSIS, FRONT AXLE, BOLSTER AND STEERING CONNECTIONS, FARMALL "HV" ONLY (12) - CHASSIS

1

10823D

DRAG LINK NUT (S/N 501 TO 390323)

2шт.

Used with 65091DY

1шт.

1

66294H

DRAG LINK NUT (S/N, Serial Range: 501-390323)

2шт.

Used with 357810R91

1шт.

2

10824D

DRAG LINK BALL SEAT

4шт.

Used with 65091DY

1шт.

2

66290H

SEAT

DRAG LINK BALL SEAT (S/N, Serial Range: 501-390323)

4шт.

Used with 357810R91

1шт.

3

10825D

DRAG LINK SPRING (S/N, Serial Range: 501-390323)

2шт.

Used with 65091DY

1шт.

3

66292H

DRAG LINK SPRING (S/N, Serial Range: 501-390323)

2шт.

Used with 357810R91

1шт.

4

12333D

DRAG LINK SAFETY PLUG (S/N, Serial Range: 501-390323)

2шт.

Used with 65091DY

1шт.

4

66293H

DRAG LINK SAFETY PLUG (S/N, Serial Range: 501-390323)

2шт.

Used with 357810R91

1шт.

5

65091DX

DRAG LINK (S/N, Serial Range: 501-390323)

1шт.

Used with 65091DY

1шт.

5

357809R1

DRAG LINK (S/N, Serial Range: 501-390323)

1шт.

Used with 357810R91

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

6

65091DY

DRANK LINK, complete (Optional with 357810R91) (S/N, Serial Range: 501-390323)

1шт.

6

357810R91

DRAG LINK, complete (Optional with 65091DY) (S/N, Serial Range: 501-390323)

1шт.

7

12329DA

BALL

STEERING GEAR ARM BALL (S/N, Serial Range: 501-390323)

1шт.

8

9497DAXA

STEERING GEAR ARM WITH BALL, 12329DA (S/N, Serial Range: 501-390323)

1шт.

179935

BOLT

CAP SCREW, 5/8 x 3" N.C. hex head

2шт.

114820

HEX NUT, 5/8" N.C.

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

65087D

STEERING KNUCKLE ARM RETAINING WASHER

2шт.

10

9496DA

STEERING KNUCKLE ARM, R.H. (S/N, Serial Range: 501-390323)

1шт.

11

3131DB

TIE ROD CLEVIS (S/N, Serial Range: 501-318435)

1шт.

11

353334R1

TIE ROD CLEVIS (S/N, Serial Range: 318436-390323)

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

CAP SCREW, 3/8 x 1-5/8" N.C. hex head

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

DRAG LINK LUBRICATOR (1/8" straight) (Alemite) (Optional with 109461) (Same as 14186DA) (S/N 501 to 390323)

2шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

DRAG LINK LUBRICATOR (1/8" straight) (Lincoln) (Optional with 119512) (Same as Q3615) (S/N 501 to 390323)

2шт.

13

65090D

TIE ROD CLEVIS PIN (S/N, Serial Range: 501-390323)

1шт.

14

353420R11

TIE ROD WITH CLEVIS (S/N, Serial Range: 318436-390323)

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

14

353430R91

TIE ROD WITH CLEVIS, complete (Will work for 65089DX) (S/N, Serial Range: 501-318435)

1шт.

15

10565DA

TIE ROD CLEVIS PIN (S/N, Serial Range: 501-390323)

1шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STEERING KNUCKLE ARM LUBRICATOR (1/8" straight) (Alemite) (Optional with 109461) (Same as 14186DA) (S/N 501 to 390323)

2шт.

16

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STEERING KNUCKLE ARM LUBRICATOR (1/8" straight) (Lincoln) (Optional with 119512) (Same as Q3615) (S/N 501 to 390323)

2шт.

17

9495DA

STEERING KNUCKLE ARM, L.H. (S/N, Serial Range: 501-390323)

1шт.

18

358348R1

STEERING GEAR ARM (S/N 390324 up)

1шт.

181488

CAP SCREW, 5/8-18 x 3" N.F. hex head

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

358901R1

SLOTTED NUT

TIE ROD END NUT (5/8-18N.F.) (S/N 390324 up)

4шт.

20

358352R91

TIE ROD END WITH COVER, 358900R1 and nut, 358901R1 (L.H. thread) (S/N 390324 up)

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

21

358900R1

SEAL

DUST COVER (S/N 390324 up)

4шт.

22

109461

LUBE NIPPLE,1/8"-27 x .66 lg

LUBRICATION FITTING, 1/8" straight (Tie rod) (Lincoln) (Optional with 119512) (S/N 390324 up)

4шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATION FITTING, 1/8" straight (Tie rod) (Alemite) (Optional with 109461) (S/N 390324 up)

4шт.

23

358354R1

TIE ROD CLAMP (S/N 390324 up)

4шт.

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

CAP SCREW, 1/2-20 x 1-7/8" N.F. hex head)

4шт.

25-118

NUT,1/2"-20, G5

HEX NUT, 1/2-20 N.F.

4шт.

24

358351R1

TIE ROD TUBE (S/N 390324 up) 1.125" OD, 18.25" Length

2шт.

25

358353R91

TIE ROD END, with cover, 358900R1 and nut, 358901R1 (R.H. thread) (S/N 390324 up)

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

26

358347R91

TIE ROD, assembly (S/N 390324 up)

2шт.

27

65087D

STEERING KNUCKLE ARM RETAINING WASHER (S/N 390324 up)

2шт.

28

358349R1

STEERING KNUCKLE ARM, L.H. (S/N 390324 up)

1шт.

117996

WOODRUFF KEY,#24, 1/4" x 1 1/2", HT

no. 24, 1/4 x 1-1/2"

1шт.

29

358350R1

STEERING KNUCKLE ARM, R.H. (S/N 390324 up)

1шт.

117996

WOODRUFF KEY,#24, 1/4" x 1 1/2", HT

no. 24, 1/4 x 1-1/2"

1шт.

30

9494D

STAY ROD BALL SOCKET

1шт.

179934

CAP SCREW, 5/8 x 2-3/4" N.C. hex head

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

60762D

SHIM

STAY ROD BALL SOCKET CAP SHIM

4шт.

32

60763DB

CYLINDER END CAP

STAY ROD BALL SOCKET CAP

1шт.

181433

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

CAP SCREW, 1/2 x 1-3/4" N.F. hex head

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

10546D

BALL

STAY ROD BALL

1шт.

34

65088DX

STAY ROD WITH BALL, 10546D (S/N, Serial Range: 501-381478)

1шт.

34

356605R11

STAY ROD WITH BALL, 10546D (S/N 381479)

1шт.

128127

GUIDE

HEX NUT, 1-1/2" N.F.

2шт.

118029

LOCKWASHER, 1-1/2"

2шт.

35

353267R1

STEERING KNUCKLE PIVOT, BUSHING (Will work for 55236D)

2шт.

36

65083DBX

FRONT AXLE WITH TWO BUSHINGS, 353267R1 (Order 357376R91 together with lower bolster, 356606R1 and stay rod, 356605R11 with ball) (S/N, Serial Range: 501-381478)

1шт.

36

356607R11

FRONT AXLE WITH FOUR BUSHINGS, 353267R1 (Order 357376R91) (S/N 381479 up)

1шт.

37

59836D

BEARING

STEERING KNUCKLE PIVOT BEARING OUTER RACE

2шт.

38

55413D

FLANGE

STEERING KNUCKLE PIVOT BEARING INNER RACE

2шт.

39

55412D

WASHER

STEERING KNUCKLE PIVOT FELT WASHER

2шт.

40

D2616

BALL

STEERING KNUCKLE PIVOT BEARING BALLS (3/8" chrome steel) (Same as 1110C)

40шт.

41

117996

WOODRUFF KEY,#24, 1/4" x 1 1/2", HT

STEERING KNUCKLE ARM KEY (Woodruff 1/4 x 1-1/2")

2шт.

42

65085DC

STEERING KNUCKLE, complete (Together with washer, 353838R1 and nut, 102652) (Will work for 65085DA) (S/N 307710 up)

2шт.

115781

NUT

HEX JAM NUT, 1" N.F.

2шт.

121326

WASHER,1"

LOCK, (Special light) 1"

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

43

Q3673

FITTING

FRONT AXLE PIVOT LUBRICATOR (1/8" 45 degree elbow) (Lincoln) (Optional with 36177D)

1шт.

43

36177D

FRONT AXLE PIVOT LUBRICATOR (1/8" 45 degree elbow) (Alemite) (Optional with Q3673)

1шт.

44

65084D

FRONT AXLE PIVOT

1шт.

45

12522D

FRONT AXLE RUBBER BUMPER

2шт.

46

9493DA

LOWER BOLSTER (S/N, Serial Range: 501-381478)

1шт.

46

356606R1

LOWER BOLSTER (S/N 381479 up)

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

CAP SCREW, 3/8 x 3-3/4" N.C. hex head

2шт.

179954

CAP SCREW, 3/4 x 2-1/2" N.C. hex head

2шт.

179959

CAP SCREW, 3/4 x 3-3/4" N.C. hex head

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

47

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STEERING KNUCKLE PIVOT LUBRICATOR (1/8" straight) (Lincoln) (Optional with 119512) (Same as Q3615)

4шт.

47

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STEERING KNUCKLE PIVOT LUBRICATOR (1/8" straight) (Alemite) (Optional with 109461) (Same as 14186DA)

4шт.

357376R91

FRONT AXLE WITH BUSHING AND BEARINGS SERVICE PACKAGE (Will work for 356607R11) (S/N 381479 up)

1шт.

(Will work for 65083DBX, if lower bolster, 356606R1 and stay rod, 356605R11 with ball are also ordered) (S/N, Serial Range: 501-381478)

1шт.
