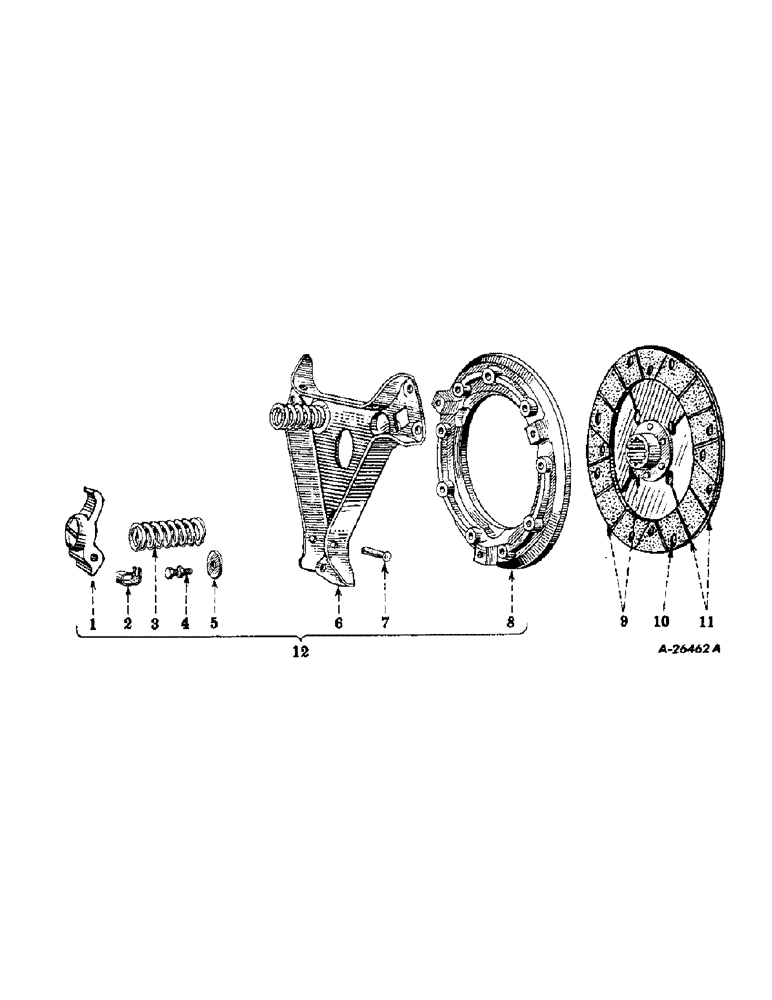

Запчасти Case IH FARMALL HV (104) - CHASSIS, CLUTCH, AUBURN, SERIAL NO. 332221 TO 391357 (12) - CHASSIS

35084R92

CLUTCH (10") 355088R91 with driven member, 355873R91 (Optional with Rockford clutch 48550DA)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

355095

CLUTCH LEVER

3шт.

2

355110R1

NO LONGER SERVICED

RETURN CLIP

3шт.

3

63160D

CLUTCH LEVER PRESSURE SPRING

3шт.

4

355106R1

ADJUSTING SCREW (5/16 x 1-1/4" N.F. hex head)

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

5

355096R1

ADJUSTING SCREW WASHER

3шт.

6

355093R1

CLUTCH BRACKET

1шт.

7

63161D

CLUTCH LEVER PIVOT PIN

3шт.

8

355092R1

CLUTCH PRESSURE PLATE

1шт.

9

355089R91

CLUTCH DRIVEN MEMBER (S/N 332221 TO 353531)

1шт.

9

355873R91

PLATE

CLUTCH DRIVEN MEMBER (S/N 353532 TO 391357)

1шт.

10

61179V

CLUTCH FACING RIVET (9/64 x 3/16" brass tubular, countersunk head) (S/N, Serial Range: 332221-353531)

26шт.

10

53795V

RIVET,Csk Hd, 3/16" x 5/16"

CLUTCH FACING RIVET, tubular, brass (S/N 353532 to 391357)

20шт.

11

355086R91

CLUTCH FACING PACKAGE (2 facings with 26 rivets, 61179V) (S/N, Serial Range: 332221-353531)

1шт.

11

55485DXA

CLUTCH FACING PACKAGE (2 facings with 22 rivets, 53795V) (S/N, Serial Range: 353532-391357)

1шт.

12

355086R91

CLUTCH, complete, less driven member

1шт.
