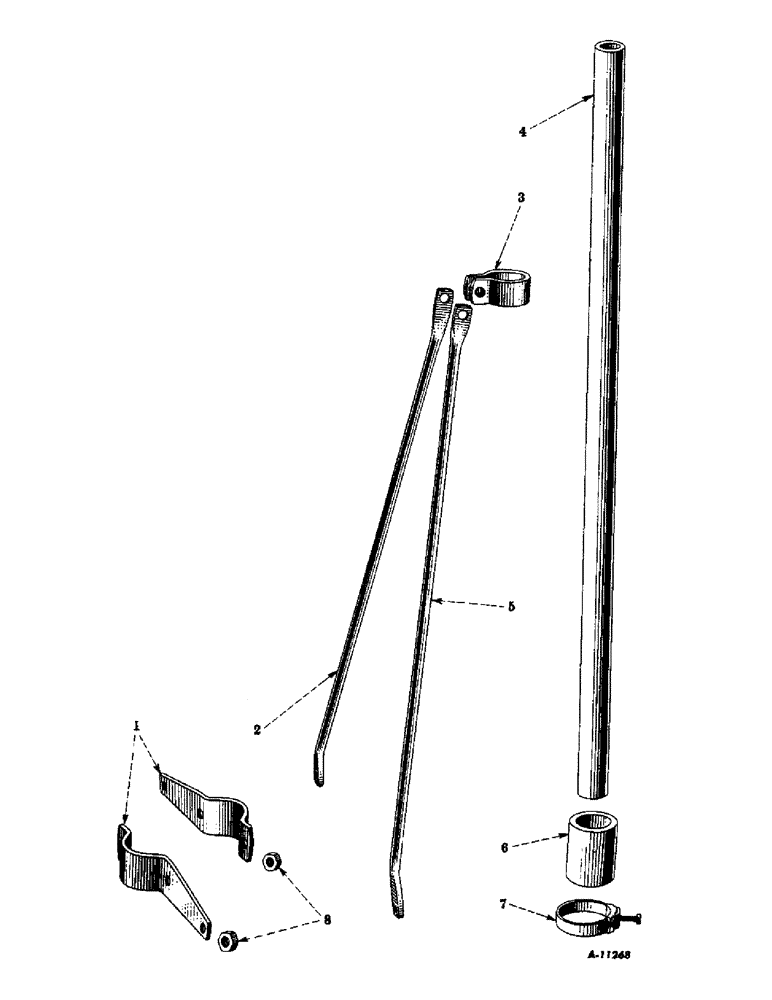

Запчасти Case IH FARMALL HV (210) - ATTACHMENTS, AIR CLEANER EXTENSION PIPE, SPECIAL Attachments

62970D

AIR PIPE EXTENSION ATTACHMENT

1шт.

1

62967D

AIR PIPE EXTENSION BRACE CLAMP - lower

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

CAP SCREW, 3/8 x 1" N.F. hex head

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

62968D

AIR PIPE EXTENSION BRACE - L.H.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

62966D

AIR PIPE EXTENSION BRACE CLAMP - upper

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

62965D

AIR PIPE EXTENSION

1шт.

5

62969D

AIR PIPE EXTENSION BRACE - R.H.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

20075D

HOSE

AIR PIPE EXTENSION HOSE - 2" I.D. x 2-1/4" long, 3 ply

1шт.

7

29970D

CLAMP

AIR PIPE EXTENSION HOSE CLAMP

2шт.

8

93082H

NUT

AIR PIPE EXTENSION BRACE CLAMP - lower - nut (Will work for 37684H)

2шт.
