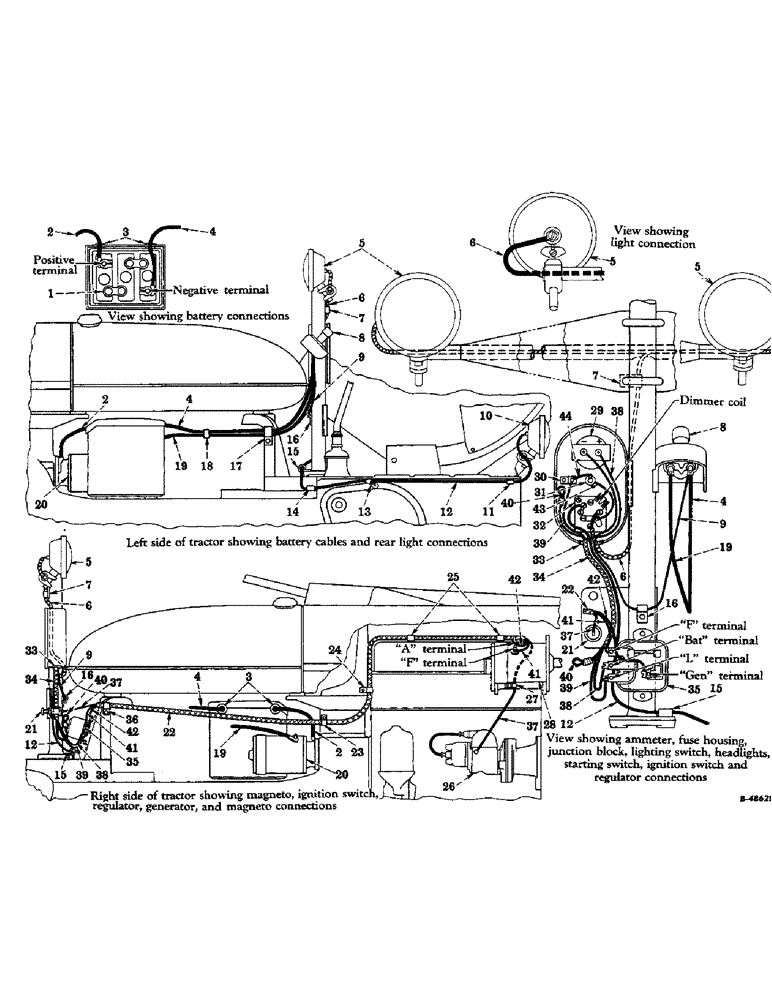

Запчасти Case IH FARMALL HV (076) - ELECTRICAL SYSTEM, LIGHTING AND STARTING ATTACHMENT, MAGNETO IGNITION, SPECIAL (06) - ELECTRICAL SYSTEMS

54436DG

LIGHTING AND STARTING ATTACHMENT

1шт.

1

355196R92

BATTERY (Auto-Lite) (Optional with 354210R91)

1шт.

1

354210R91

SPARE PART BATTERY (Globe union) (Optional with 355196R92)

1шт.

2

52971DA

CABLE

CABLE, Serial Range: battery-ground

1шт.

3

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

GROMMET, battery box

2шт.

4

63422DA

CABLE

CABLE, battery to starting switch (S/N, Serial Range: 137831-391357)

1шт.

4

358163R91

CABLE

CABLE, battery to starting switch (S/N 391358 up)

1шт.

5

45640DB

LAMP

HEADLIGHT (Conventional) (For components see detail list of parts under "Headlight or Rear Light" unit)

2шт.

5

357884R91

HEADLIGHT (Sealed beam) (For components see detail list of parts under "Headlight or Rear Light" unit)

2шт.

6

52973DA

HARNESS

HARNESS (Headlight cable) (Optional with 365022R91)

1шт.

6

365022R91

SPARE PART HARNESS (Headlight cable) (Optional with 52973DA)

1шт.

7

350742R1

SPARE PART CLIP, on lower "U" bolt of headlight support bracket (2 used on lighting or starting attachments only)

1шт.

NLS

NO LONGER SERVICED

1шт.

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

356913R91

SWITCH

STARTING SWITCH (Will work for 64931H)

1шт.

113960

SIDE RAIL

SLOTTED MACHINE SCREW, 1/4 x 1-1/8" N.C. round head

2шт.

13000R1

HEX NUT, 1/4" N.C.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

59462D

CABLE, ammeter to switch (S/N, Serial Range: 501-340953)

1шт.

9

61257D

SPARE PART CABLE, ammeter to switch (Will work for 52030D) (S/N, Serial Range: 501-340953)

1шт.

9

358314R91

SPARE PART CABLE (Switch to ammeter) (Will work for 354259R11) (Optional with 365023R91) (S/N 340954 up)

1шт.

9

365023R91

SPARE PART CABLE (Switch to ammeter) (Will work for 354259R11) (Optional with 358314R91) (S/N 340954 up)

1шт.

10

45640DB

LAMP

REAR LIGHT (Conventional) (For components see detail list of parts under "Headlight or Rear Light" unit)

1шт.

10

357844R91

REAR LIGHT (Sealed beam) (For components see detail list of parts under "Headlight or Rear Light" unit)

1шт.

11

355097R1

SPARE PART CLIP, on rear frame cover

1шт.

12

358311R91

CABLE

CABLE (Switch to rear light) (Will work for 61886D)

1шт.

13

351794R1

SPARE PART CLIP, on upper brake housing mounting bolt

1шт.

14

355098R1

SPARE PART CLIP, on rear frame cover mounting bolt

1шт.

15

355098R1

SPARE PART CLIP, on L.H. steering post mounting bolt

1шт.

16

61387D

SPARE PART CLIP, on control bracket mounting bolt through steering post

1шт.

17

61059D

SPARE PART CLIP, on left side of rear fuel tank support (S/N 137831 up)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

27383D

SPARE PART WRAPPING STRAP, around battery cables (S/N 137831 up)

1шт.

19

63423DA

CABLE

CABLE, starting switch to cranking motor (S/N 137831 up)

1шт.

20

63608D

SPARE PART CRANKING MOTOR (Delco-Remy 1107448) (Will work for 49344D) (For components see detail list of parts under cranking motor)

1шт.

20

104220A2R

REMAN-STARTER

Remanufactured Starter 6 volt, intertia. Three Bolt Flange

1шт.

20

104220A1C

CORE-STARTER

Return Number

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT, 1/2-13 x 1-1/4" N.C. hex

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

54207DB

SWITCH

MAGNETO IGNITION SWITCH (Not part of attachment)

1шт.

22

365020R91

CABLE

CABLE HARNESS (Optional with 354257R91) (S/N, Serial Range: 340954-391357)

1шт.

22

354257R91

HARNESS

CABLE HARNESS (Optional with 365020R91) (S/N, Serial Range: 340954-391357)

1шт.

22

358161R91

HARNESS

CABLE HARNESS (S/N 391358 up)

1шт.

23

60937D

SPARE PART CLIP, on fuel tank support (S/N 340954 up)

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

13000R1

HEX NUT, 1/4" N.C.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

56275D

SPARE PART CLIP, on lower steering shaft support mounting bolt (S/N 23871 and up)

1шт.

25

355097R1

SPARE PART CLIP, on valve cover studs

2шт.

26

351218R92

MAGNETO

MAGNETO H-4 (Not part of attachment)

1шт.

27

61387D

SPARE PART CLIP, on generator bracket front mounting bolt (S/N 340954 up)

1шт.

28

354237R91

SPARE PART GENERATOR (Delco-Remy 1100501) (For components see detail list of parts under generator)

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

220065

HEX NUT, 5/16" N.C.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

42383DC

AMMETER

AMMETER (A.C.) (Optional with 354473R91)

1шт.

29

351145R91

AMMETER

AMMETER (Rochester) (Order 354473R91)

1шт.

29

354473R91

AMMETER

AMMETER (Rochester) (Optional with 42383DC)

1шт.

29

360053R91

INDICATOR

CHARGE INDICATOR (Includes clamp, 360054R91, four nuts, 120614, two washers, 120217, and two washers, 352265R1)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

30

42915D

BLOCK

INSTRUMENT PANEL JUNCTION BLOCK (S/N 340954 up)

1шт.

110503

SLOTTED SCREW, no. 10-24 x 7/8" round head

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

NUT, #10-24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

31

354232R91

BOX

FUSE HOUSING WITH KNOB, 356445R91 (Bussman Mfg. Co.) (Will work for 354233R91) (S/N 340954 up)

1шт.

32

LIGHTING SWITCH, complete (Delco-Remy 1994038) (For components see detail list of parts under "Lighting Switch" unit) (S/N 340954 up)

1шт.

33

42865D

SPARE PART GROMMET, electrical instrument mouting panel cover (Optional with 52062D)

1шт.

33

52062D

GROMMET

GROMMET, electrical instrument mounting panel cover (Optional with 42865D)

1шт.

34

354297R91

HARNESS

HARNESS (Regulator cable) (Optional with 365021R91) (S/N 340954 up)

1шт.

34

365021R91

HARNESS

HARNESS (Regulator cable) (Optional with 354297R91) (S/N 340954 up)

1шт.

35

360898R91

REGULATOR

VOLTAGE REGULATOR (Delco-Remy 1118780) (Will work for 354234R91)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

13000R1

HEX NUT, 1/4" N.c.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

60937D

SPARE PART CLIP, on right side of rear fuel tank support (S/N 340954 up)

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

13000R1

HEX NUT, 1/4" N.C.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

CABLE, Magneto ingition switch to Magneto (Black) (Order 354257R91) (S/N 340954 up)

1шт.

38

CABLE, regulator "BAT" terminal to ammeter (Order 354297R91)( (S/N 340954 up)

1шт.

39

CABLE, regulator "L" terminal to junction block (Order 354297R91) (S/N 340954 up)

1шт.

40

CABLE, natural with black cross tracers (Not used with Magneto ignition)

1шт.

41

CABLE, regulator "F" terminal to generator "F" terminal (Order 354257R91) (S/N 340954 up)

1шт.

42

CABLE, regulator "GEN" terminal to generator "A" terminal (Order 354257R91) (S/N340954 up)

1шт.

43

CABLE, fuse housing to lighting switch (S/N 340954 up)

1шт.

44

CABLE, fuse housing to junction block (S/N 340954 up)

1шт.

6745DA

HUB

SPARE PART GENERATOR PULLEY HUB

1шт.

6746DX

HUB

GENERATOR PULLEY FLANGE WITH SCREW, 102820 and nut, 114501

1шт.

9231D

SPARE PART REAR LIGHT SUPPORT (Order 66836D) (S/N 501 to)

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

CAP SCREW, 7/16 x 3-1/4" N.C. hex head

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4" N.C. hex

1шт.

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9231DA

SPARE PART REAR LIGHT SUPPORT (Optional with 353642R11)

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

BOLT, Hex, 7/16"-14 x 4", G5

1шт.

9357D

SPARE PART STARTING SWITCH BOX (S/N 137831 UP)

1шт.

27385D

SPARE PART CLIP, 1/4" (For 3/8" bolt) (S/N, Serial Range: 501-23870)

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27386D

SPARE PART CLIP, 1/4" (For 1/2" bolt) (S/N, Serial Range: 501-23870)

1шт.

27618D

BATTERY TO GROUND CABLE LOOM CLAMP RING (Used for lighting attachment only)

1шт.

28428D

SPARE PART CABLE CLAMP (S/N, Serial Range: 501-23870)

1шт.

31319D

LOOM, battery to ground cable (Used for light attachment only)

1шт.

35938D

SPARE PART CLIP, headlight cable harness (S/N, Serial Range: 501-23870)

1шт.

37596D

SPARE PART CHOKE ROD HOLDER (S/N, Serial Range: 501-70409)

1шт.

38777D

BATTERY CABLE NEGATIVE TERMINAL WITH BOLT, 26453HX (Used for lighting attachment only)

1шт.

38778D

BATTERY TO GROUND CABLE POSITIVE TERMINAL WITH BOLT, 26453HX (Used for lighting attachment only)

1шт.

48877D

SPARE PART GENERATOR BRACE

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

48878D

V-BELT,0.50" W

Generator

1шт.

48878DGV

BELT

Value, V-Belt

1шт.

48882DA

SPARE PART BATTERY BOX SUPPORT BRACKET

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

49069D

SPACER

LIGHT SPACER (2 used on lighting attachment only)

3шт.

50384D

SPARE PART GENERATOR BRACKET

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.C. hex head

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

50929DCX

SPARE PART ELECTRICAL INSTRUMENT MOUNTING PANEL WITH TRANSFERS (S/N 33896 to)

1шт.

50929DCY

SPARE PART ELECTRICAL INSTRUMENT MOUNTING PANEL, 50929DCX with switch (Will work for 50929DX) (S/N, Serial Range: 501-33895)

1шт.

51063DA

SCREW

ELECTRICAL INSTRUMENT MOUNTING PANEL SCREW

2шт.

225-10108

NUT,#8-32

NUT, #8-32

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

51675DC

SPARE PART HEADLIGHT SUPPORT PIPE AND PLATE

1шт.

51678D

SPARE PART HEADLIGHT SUPPORT SADDLE (S/N, Serial Range: 501-56139)

1шт.

51679D

SPARE PART HEADLIGHT SUPPORT "U" BOLT (S/N, Serial Range: 501-56139)

2шт.

103026

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

51680D

BATTERY BOX WITH 2 BOLTS, 51684DX (Less cover)

1шт.

51685D

SPARE PART BATTERY BOX SUPPORT PLATE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

51686DXA

BATTERY BOX COVER, complete

1шт.

51763D

SPARE PART CHOKE ROD (S/N, Serial Range: 501-70409)

1шт.

112526

SPARE PART COTTER PIN, 1/16 x 3/8"

1шт.

51764D

SPARE PART CHOKE ROD SUPPORT

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

13000R1

HEX NUT, 1/4" N.C.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51765DAX

SPARE PART ELECTRICAL INSTRUMENT MOUNTING PANEL COVER

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

51820D

SPARE PART STARTING SWITCH CONTROL ROD (S/N, Serial Range: 501-70409)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

52898D

BOLT,7/16" - 20 x 7/8", Full Thd

BATTERY SUPPORT LOCK BOLT

2шт.

103027

HEX NUT, 7/16" N.F.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

52967D

CLIP, cable harness (S/N, Serial Range: 501-23870)

1шт.

52968D

CLIP, starting switch to cranking motor cable (S/N, Serial Range: 501-23870)

1шт.

52968D

CLIP, battery to starting switch cable (S/N, Serial Range: 501-23870)

1шт.

52970DA

CABLE, starting switch to cranking motor (S/N, Serial Range: 501-137830)

1шт.

52972DA

CABLE

CABLE, (Battery to starting switch) (S/N, Serial Range: 501-137830)

1шт.

52982D

CABLE HARNESS (Order 56280D) (Used for lighting attachment only)

1шт.

52983D

CABLE, complete (Battery to ground) (Used for lighting attachment only)

1шт.

56273D

SPARE PART CLIP (For 5/16" bolt) (Order 60937D) (S/N 23871 to)

2шт.

179814

SPACER

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

56274D

SPARE PART ROUNDED CLIP (For 7/16" bolt) (S/N, Serial Range: 23871-137831)

2шт.

56280D

HARNESS

CABLE HARNESS (Will work for 52982D)

1шт.

56281D

HARNESS

CABLE HARNESS (Will work for 52974D) (S/N, Serial Range: 501-137830)

1шт.

59468D

SPARE PART HEADLIGHT SUPPORT "U" BOLT (S/N 56140 up)

2шт.

103026

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

60837DB

SPARE PART CONTROL BRACKET (S/N 70410 up)

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

CAP SCREW, 7/16 x 2-1/2" N.C. hex head

1шт.

114773

HEX NUT, 7/16" N.C.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

60840DA

SPARE PART CHOKE ROD (S/N 70410 up)

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER COTTER PIN, 1/16 x 1/2"

1шт.

61478DA

SPARE PART ELECTRICAL INSTRUMENT MOUNTING PANEL (Will work for 50929D) (Used for starting attachment only)

1шт.

66836D

SPARE PART REAR LIGHT SUPPORT, 9231DA with screw, 179874 (S/N 501 to)

1шт.

26375H

BATTERY TO GROUND CABLE POSITIVE TERMINAL WITH BOLT 2653HX (S/N 501 to)

1шт.

26375H

BATTERY TO STARTING SWITCH CABLE NEGATIVE TERMINAL WITH BOLT, 26453HX (S/N 501 to)

1шт.

26378H

TERMINAL, battery to ground cable (S/N 501 to)

1шт.

26453HX

BOLT,Sq Hd, 5/16" - 18 x 1 1/4", Lead

BATTERY TO GROUND CABLE BOLT WITH NUT (S/N 501 to)

1шт.

26453HX

BOLT,Sq Hd, 5/16" - 18 x 1 1/4", Lead

BATTERY TO STARTING SWITCH CABLE BOLT WITH NUT (S/N 501 to)

1шт.

26453HX

BOLT,Sq Hd, 5/16" - 18 x 1 1/4", Lead

BATTERY CABLE NEGATIVE TERMINAL BOLT AND NUT (Used for lighting attachment only)

1шт.

26453HX

BOLT,Sq Hd, 5/16" - 18 x 1 1/4", Lead

BATTERY TO GROUND CABLE POSITIVE TERMINAL BOLT WITH NUT (Used for lighting attachment only) (S/N 501 to)

1шт.

34745H

TERMINAL, battery to cranking switch cable (Will work for 26377H) (S/N, Serial Range: 501-137830)

1шт.

34745H

TERMINAL, starting switch to cranking motor cable (Will work for 26377H) (S/N, Serial Range: 501-137830)

2шт.

46074H

TERMINAL, starting switch to cranking motor cable (S/N 137831 to)

2шт.

46074H

TERMINAL, battery to starting switch cable (S/N 137831 to)

1шт.

67861H

TERMINAL, battery to ground cable (S/N 501 to)

1шт.

250466R92

SPARE PART AMMETER CLAMP (A.C.)

1шт.

350920R1

CLAMP

LIGHT CLAMP (Will work for 6780D) (2 used on lighting attachment only)

3шт.

352154R91

SPARE PART AMMETER CLAMP (Rochester)

1шт.

352265R1

SPARE PART AMMETER CLAMP MOUNTING WASHER (Rochester)

2шт.

353642R11

SPARE PART REAR LIGHT SUPPORT (Optional with 9231DA)

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

BOLT, Hex, 7/16"-14 x 4", G5

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

INSTRUMENT PANEL JUNCTION BLOCK SPACER (S/N 340954 up)

1шт.

354262R1

SPARE PART ELECTRICAL INSTRUMENT MOUNTING PANEL (S/N, Serial Range: 340954-391357)

1шт.

358440R1

SPARE PART ELECTRICAL INSTRUMENT MOUNTING PANEL (S/N 391358 up)

1шт.

356062R91

BOLT

TERMINAL BOLT, assembly (For service on battery cables)

1шт.

356445R91

KNOB

FUSE HOUSING KNOB (S/N 340954 up)

1шт.

356938R91

SPARE PART CABLE, generator "A" terminal to ground (Delco-Remy 1872924) (Used with generator, 356937R91)

1шт.

356939R91

SPARE PART CABLE, generator "F" terminal to relay "F" terminal (Delco-Remy 1877569) (Used with generator, 356937R91)

1шт.

360054R91

SPARE PART CHARGE INDICATOR CLAMP (Used with 360053R91)

1шт.

3058TA

SPARE PART CHOKE ROD SPRING (S/N, Serial Range: 501-70409)

1шт.

NLS

NO LONGER SERVICED

HEADLESS SET SCREW, 1/4 x 7/8" N.C. (Dog point)

1шт.

106653

FUSE

FUSE (Cartridge type SFE-20) (6 volt, 20 amps) (Same as 10815VA)

1шт.

218436

SEAL

HEX NUT, 1/4" N.C.

1шт.
