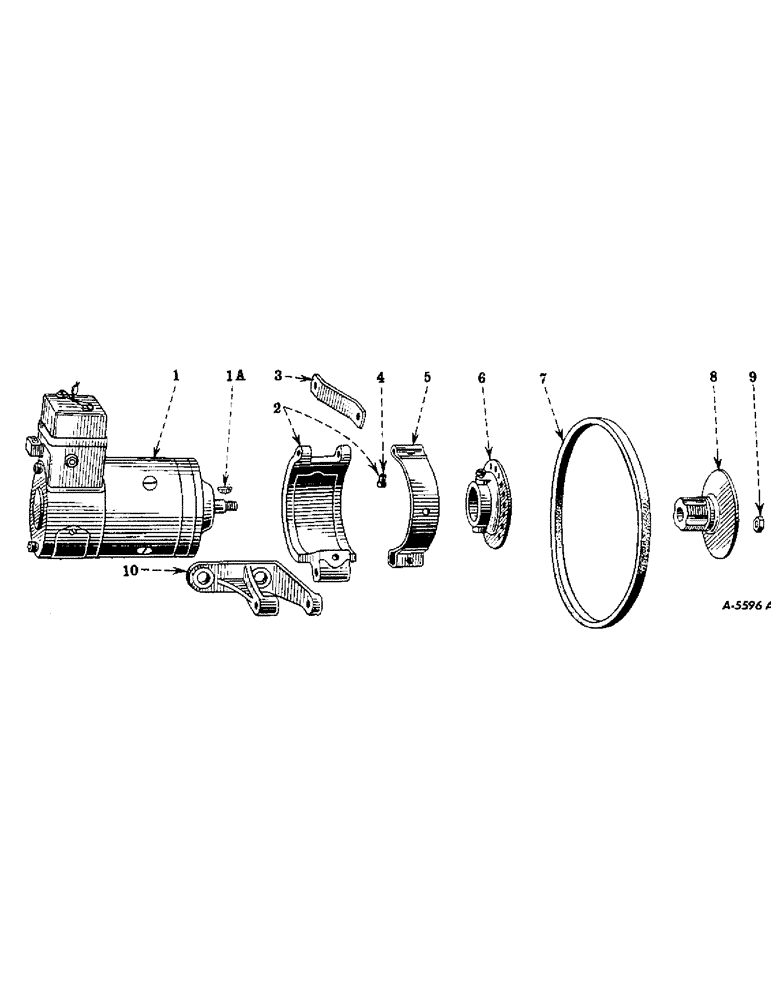

Запчасти Case IH FARMALL HV (049) - ELECTRICAL SYSTEM, GENERATOR, BOSCH NO-BATTERY TYPE AND CONNECTIONS, SPECIAL (06) - ELECTRICAL SYSTEMS

1

61875D

GENERATOR ("No-battery" type) (Bosch ARTF-75-6-900-A16) (No longer supplied for service)

1шт.

All service and replacement parts for generator should be referred to an authorized United American Bosch Corporation service station located in all principal cities. Orders must show Bosch generator number, part number and name.

1шт.

1

62130D

GENERATOR, 61875D with bracket, 9173DA and brace, 61280DA (Will work for 26086D) (No longer supplied for service)

1шт.

All service and replacement parts for generator should be referred to an authorized United American Bosch Corporation service station located in all principal cities. Orders must show Bosch generator number, part number and name.

1шт.

1a

GENERATOR PULLEY KEY (Bosch MKE 3-5)

1шт.

2

3281DAX

GENERATOR SADDLE WITH DOWEL PIN, 23603D

1шт.

181385

BOLT,Hex, 3/8" - 24 x 3", Gr 5

CAP SCREW, 3/8 x 3" N.F. hex head

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

61280D

GENERATOR BRACE (Order 62132D)

1шт.

3

61280DA

GENERATOR BRACE

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

23603D

GENERATOR DOWEL PIN

1шт.

5

26080DB

GENERATOR STRAP

1шт.

181326

CAP SCREW, 1/4 x 2-3/4" N.F. hex head

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

25-114

NUT,1/4"-28, G5

HEX NUT, 1/4" N.F.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

6746DX

HUB

GENERATOR PULLEY FLANGE WITH SCREW, 102820 and nut, 218436

1шт.

7

61284D

BELT

GENERATOR BELT

1шт.

8

9172D

GENERATOR PULLEY HUB

1шт.

9

61279D

GENERATOR PULLEY NUT

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

9173DA

GENERATOR BRACKET

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

CAP SCREW, 7/16 x 1-3/8" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

10

62132D

GENERATOR BRACKET, 9173DA with brace, 61280DA (Will work for 9173D and 62180D)

1шт.

NLS

NO LONGER SERVICED

SET SCREW, 1/4 x 7/8" N.C. headless (Dog point)

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.
