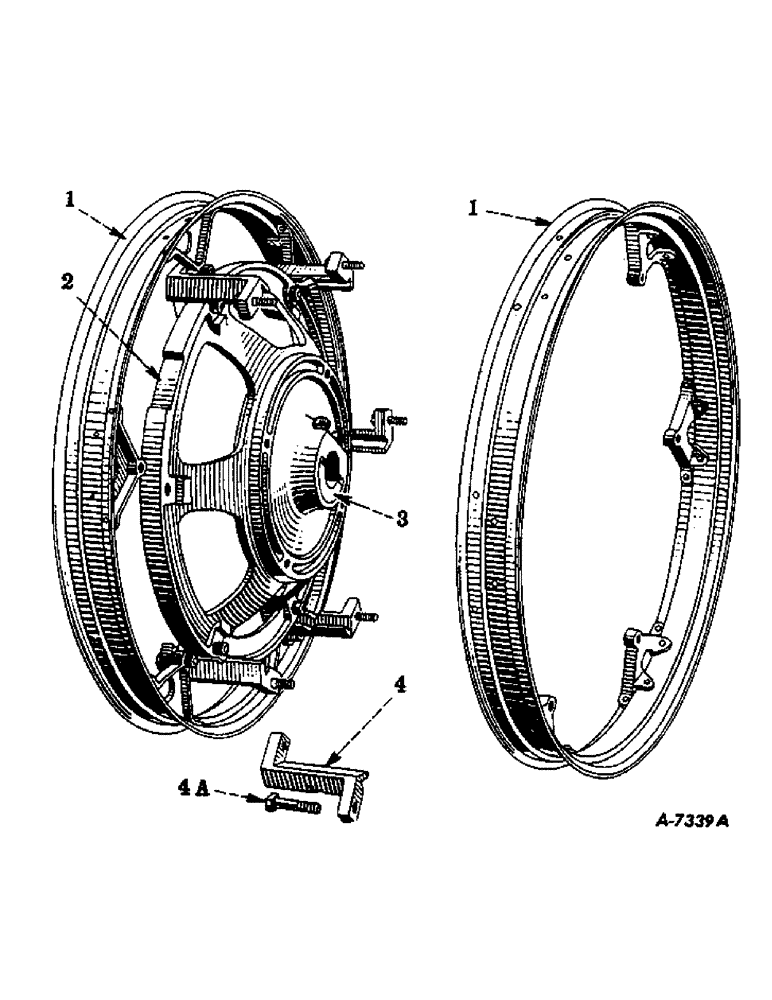

Запчасти Case IH FARMALL HV (249) - ATTACHMENTS, DUAL REAR WHEELS, PNEUMATIC TIRE EQUIPMENT, LESS TIRES, SPECIAL, FARMALL "H" ONLY Attachments

354103R91

DUAL PNEUMATIC TIRE REAR WHEEL AND RIM ATTACHMENT (Consists of two wheels 6194DD and four rims, 57118D) (W 4 x 44 rim) (5 x 44 tire)

1шт.

354104R91

DUAL PNEUMATIC TIRE REAR WHEEL AND RIM ATTACHMENT (Consists of two wheels, 6194Dd and four rims, 57119D) (W 5 x 44 rim) (6 x 44 tire)

1шт.

1

57118D

REAR WHEEL ATTACHED CLAMP RIM (1-piece, Firestone) (W 4 x 44 rim) (5 x 44 tire)

4шт.

PO16481

BOLT

MACHINE BOLT, 5/8 x 2-3/4" N.C.

24шт.

114820

HEX NUT, 5/8" N.C.

24шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

1

57119D

REAR WHEEL ATTACHED CLAMP RIM (1-piece, Firestone) (W 5 x 44 rim) (6 x 44 tire)

4шт.

PO16481

BOLT

MACHINE BOLT, 5/8 x 2-3/4" N.C.

24шт.

114820

HEX NUT, 5/8" N.C.

24шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

2

6194DD

REAR WHEEL

2шт.

179961

CAP SCREW, 3/4 x 4-1/4" N.C. hex head

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

Q3478

WASHER

STEEL WASHER, 25/32" I.D. x 1-1/4" O.D. x no. 14 ga.

8шт.

3

6192DA

REAR WHEEL HUB CLAMP (Order 6192DCX)

2шт.

3

6192DC

CLAMP

REAR WHEEL HUB CLAMP (S/N 37214 up)

2шт.

3

6192DCX

REAR WHEEL HUB CLAMP WITH 4 SCREWS, 179961 (S/N, Serial Range: 501-37213)

2шт.

4

57121D

REAR WHEEL RIM MOUNTING BRACKET

12шт.

4a

350599R1

MACHINE BOLT, 5/8 x 3-1/2" N.C.

12шт.

114820

HEX NUT, 5/8" N.C.

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.
