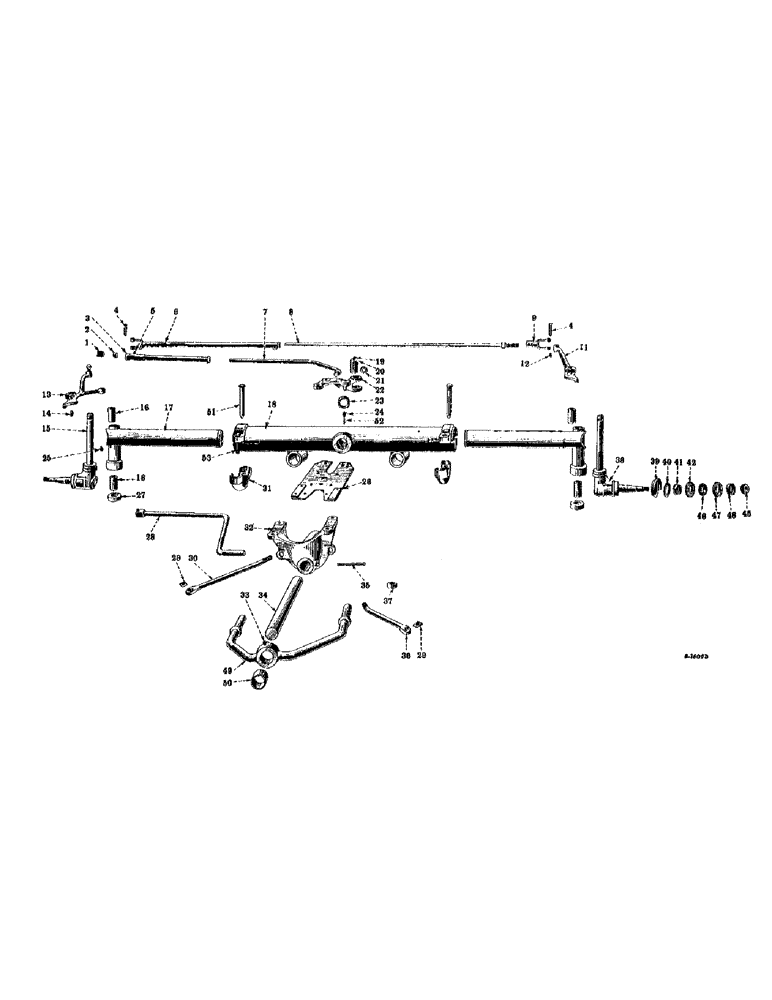

Запчасти Case IH FARMALL HV (236) - ATTACHMENTS, ADJUSTABLE WIDE TREAD FRONT AXLE, W/ ADJUSTABLE WHEEL BASE, SPECIAL, FARMALL "H" ONLY Attachments
№
Артикул
Название
Примечание
Количество
51701DF
ADJUSTABLE WIDE TREAD FRONT AXLE ATTACHMENT WITH ADJUSTABLE WHEEL BASE (Machine attachment)
1шт.
1
40092D
DRAG LINK BALL SEAT AND NUT
1шт.
2
40091D
SEAT
DRAG LINK BALL SEAT
1шт.
3
40105D
DRAG LINK SLEEVE (S/N, Serial Range: 501-134674)
1шт.
3
67953D
DRAG LINK SLEEVE (S/N 134675 up)
1шт.
CAP SCREW, 1/2 x 2" N.C. hex head
1шт.
114774
HEX NUT, 1/2" N.C.
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
103389
SPLIT PIN/SAFETY PIN,1/8" x 2"
Pin, Split (Cotter), 1/8" x 2"
1шт.
3
40105DX
DRAG LINK SLEEVE, complete (S/N, Serial Range: 501-134674)
1шт.
3
67953DX
DRAG LINK SLEEVE, complete (S/N 134675 up)
1шт.
4
10565DA
STEERING CONNECTION FORK PIN
2шт.
103409
PIN, SPLIT (COTTER),3/16" x 1 1/2"
2шт.
5
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
DRAG LINK SLEEVE (Ball end) lubricator (1/8" straight) (Optional with 109461) (Same as 14186DA)
1шт.
5
109461
LUBE NIPPLE,1/8"-27 x .66 lg
DRAG LINK SLEEVE (Ball end) lubricator (1/8" straight) (Optional with 119512) (Same as Q3615)
1шт.
6
40097D
STEERING CONNECTION SLEEVE (Order 68250D) (S/N, Serial Range: 501-134674)
1шт.
6
67950D
STEERING CONNECTION SLEEVE (S/N 134675 up)
1шт.
279889
SPARE PART
CAP SCREW, 1/2 x 2" N.C. hex head
1шт.
114774
HEX NUT, 1/2" N.C.
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
7
52934DA
DRAG LINK ADJUSTING ROD (S/N, Serial Range: 501-134674)
1шт.
7
67956D
DRAG LINK ADJUSTING ROD (S/N 134675 up)
1шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
1шт.
8
40098DA
STEERING CONNECTION ADJUSTING ROD
1шт.
129-129
NUT,7/8"-14, G5
HEX NUT, 7/8" N.F.
1шт.
9
40099DA
STEERING CONNECTION ADJUSTING ROD FORK (Order 68250D) (S/N, Serial Range: 501-134674)
1шт.
9
67952D
STEERING CONNECTION ADJUSTING ROD FORK (S/N 134675 up)
1шт.
11
5669D
STEERING KNUCKLE ARM, R.H. (Tractors not equipped with belt pulley. For tractors equipped with belt pulley, order 9035DBXA together with 9036DC) (S/N, Serial Range: 501-55836)
1шт.
11
9036DC
STEERING KNUCKLE ARM, R.H. (S/N 55837 up)
1шт.
179934
CAP SCREW, 5/8 x 2-3/4" N.C. hex head
1шт.
114820
HEX NUT, 5/8" N.C.
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
12
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
STEERING KNUCKLE ARM LUBRICATOR, L.H. and R.H. (1/8" straight) (Optional with 109461) (Same as 14186DA)
2шт.
12
109461
LUBE NIPPLE,1/8"-27 x .66 lg
STEERING KNUCKLE ARM LUBRICATOR, L.H. and R.H. (1/8" straight) (Optional with 119512) (Same as Q3615)
2шт.
13
5668DX
STEERING KNUCKLE ARM, L.H., with ball, 12329DA (Tractors not equipped with belt pulley. For tractors equipped with belt pulley, order 9035DBXA together with 9036DBX) (S/N, Serial Range: 501-55836)
1шт.
13
9035DBXA
STEERING KNUCKLE ARM, L.H with ball (S/N 55837 up)
1шт.
179934
CAP SCREW, 5/8 x 2-3/4" N.C. hex head
1шт.
114820
HEX NUT, 5/8" N.C.
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
14
40093D
WOODRUFF KEY,#127, 1/4" x 2 1/8", HT
STEERING KNUCKLE ARM KEY (Woodruff, 1/4 x 2-1/8")
2шт.
15
51699DF
STEERING KNUCKLE, L.H., complete (Together with washer, 353838R1 and nut, 102652) (Will work for 51699DC) (S/N 307710 up)
1шт.
16
40090
STEERING KNUCKLE PIVOT BUSHING
4шт.
17
5672DAX
FRONT AXLE EXTENSION WITH 2 BUSHINGS, 40090D (S/N, Serial Range: 501-221945)
2шт.
17
350559R11
FRONT AXLE EXTENSION WITH 2 BUSHINGS, 40090D (S/N 221946 up)
2шт.
18
5671DAX
FRONT AXLE WITH 2 BUSHINGS, 40084D (S/N, Serial Range: 501-221945)
1шт.
181520
CAP SCREW, 3/4 x 4-1/2" N.F. hex head
4шт.
103031
TROUGH
HEX NUT, 3/4" N.F.
4шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
18
350552R11
FRONT AXLE WITH 2 BUSHINGS, 40084D (S/N 221946 up)
1шт.
19
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
STEERING GEAR ARM PIN LUBRICATOR (1/8" straight) (Optional with 109461) (Same as 14186DA)
1шт.
19
109461
LUBE NIPPLE,1/8"-27 x .66 lg
STEERING GEAR ARM PIN LUBRICATOR (1/8" straight) (Optional with 119512) (Same as Q3615)
1шт.
20
40088D
PIN
STEERING GEAR ARM PIN (S/N 134675 up)
1шт.
20
51696D
STEERING GEAR ARM PIN (S/N, Serial Range: 501-134674)
1шт.
21
40101D
DRAG LINK ADJUSTING ROD WASHER
1шт.
22
8171D
ARM
STEERING GEAR ARM (Order 67949D) (S/N, Serial Range: 501-134674)
1шт.
22
9684DA
STEERING GEAR ARM (S/N 134675 up)
1шт.
181485
LEVER
CAP SCREW, 5/8 x 2-1/4" N.F. hex head
3шт.
425-1110
NUT,5/8"-18, G5
3шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
3шт.
22
67949D
ARM
STEERING GEAR ARM, 9684DA with pin, 40088D (Will work for 8171D) (S/N, Serial Range: 501-134674)
1шт.
23
40084DA
BUSHING
FRONT AXLE BUSHING
2шт.
24
13129DA
FITTING
FRONT AXLE LUBRICATOR (Optional with Q3621) (Will work for 109461 or 119512) (S/N, Serial Range: 501-221945)
2шт.
24
109461
LUBE NIPPLE,1/8"-27 x .66 lg
FRONT AXLE LUBRICATOR (Order Q3621 or 13129DA) (Same as Q3615)
2шт.
24
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FRONT AXLE LUBRICATOR (Order Q3621 or 13129DA) (Same as 14186DA)
2шт.
24
Q3621
FITTING
FRONT AXLE LUBRICATOR (Optional with 13129DA) (Will work for Q3615 or 14186DA) (S/N, Serial Range: 501-221945)
2шт.
24
12308R91
FITTING
FRONT AXLE PIVOT PIN LUBRICATOR (S/N 221946 up)
2шт.
25
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
STEERING KNUCKLE PIVOT LUBRICATOR (1/8" straight) (Optional with 109461) (Same as 14186DA)
2шт.
25
109461
LUBE NIPPLE,1/8"-27 x .66 lg
STEERING KNUCKLE PIVOT LUBRICATOR (1/8" straight) (Optional with 119512) (Same as Q3615)
2шт.
26
67946DAX
FRONT AXLE ADAPTER PLATE WITH STUD AND SPACER (See note)
1шт.
413-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
CAP SCREW, 1/2 x 2-1/4" N.C. hex head
4шт.
179952
CAP SCREW, 3/4 x 2" N.C. hex head
2шт.
179953
CAP SCREW, 3/4 x 2-1/4" N.C. hex head
2шт.
114774
HEX NUT, 1/2" N.C.
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
27
39862D
BEARING ASSY,34.67mm ID x 66.67mm OD x 19.46mm W
STEERING KNUCKLE PIVOT THRUST BEARING
2шт.
28
52916DBX
STARTING CRANK (Optional with 354700R93)
1шт.
28
354700R93
STARTING CRANK (Optional with 52916DBX)
1шт.
29
51693D
BAR
FRONT FRAME CHANNEL BEVEL WASHER
2шт.
Tractors with short wheel base - 6 used.
1шт.
30
51694DB
FRONT AXLE ADAPTER BRACE, L.H.
1шт.
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
CAP SCREW, 1/2 x 2-1/2" N.C. hex head
1шт.
114774
HEX NUT, 1/2" N.C.
1шт.
114822
DISC
HEX NUT, 7/8" N.C.
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
103327
LOCK WASHER,7/8"
WASHER, LOCK, 7/8"
2шт.
31
350556R1
CLAMP
FRONT AXLE CLAMP (S/N 221946 up)
4шт.
32
8172D
FRONT AXLE ADAPTER
1шт.
179954
CAP SCREW, 3/4 x 2-1/2" N.C. hex head
2шт.
181505
CAP SCREW, 3/4 x 1-1/2" N.F. hex head
2шт.
114821
HEX NUT, 3/4" N.C.
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
33
13129DA
FITTING
STAY ROD LUBRICATOR (Optional with Q3621)
1шт.
33
Q3621
FITTING
STAY ROD LUBRICATOR (Optional with 13129DA)
1шт.
34
40085D
FRONT AXLE PIVOT PIN
1шт.
35
Q3554
FRONT AXLE PIVOT LOCKING PIN
1шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
36
51695DB
FRONT AXLE ADAPTER BRACE, R.H.
1шт.
179861
BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5
CAP SCREW, 1/2 x 2-1/2" N.C. hex head
1шт.
114774
HEX NUT, 1/2" N.C.
1шт.
114822
DISC
HEX NUT, 7/8" N.C.
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
103327
LOCK WASHER,7/8"
WASHER, LOCK, 7/8"
2шт.
37
67945D
FRONT AXLE ADAPTER BRACE SPACER
2шт.
For tractors equipped with short wheel base.
1шт.
38
51700DF
KNUCKLE
STEERING KNUCKLE, R.H., complete (Together with washer, 353838R1 and nut, 102652 will work for 51700DC) (S/N 307710 up)
1шт.
39
48541D
SHIELD
FRONT WHEEL DUST SHIELD
2шт.
40
50259D
WASHER
FRONT WHEEL FELT WASHER
2шт.
41
50270D
SPACER
FRONT WHEEL BEARING SPACER
2шт.
42
48539D
FRONT WHEEL OIL SEAL (Optional with 358778R91 and 358817R91)
2шт.
42
358778R91
OIL SEAL
FRONT WHEEL OIL SEAL (Optional with 48539D and 358817R91)
2шт.
42
358817R91
OIL SEAL
FRONT WHEEL OIL SEAL (Optional with 48539D and 358778R91)
2шт.
45
13321DA
TAPERED BEARING,23.81mm ID x 19.91mm W
FRONT WHEEL OUTER BEARING CONE
2шт.
For service only -- not part of attachment.
1шт.
46
10880K
BEARING
FRONT WHEEL INNER BEARING CONE
2шт.
47
13822V
BEARING
FRONT WHEEL INNER BEARING CUP
2шт.
For service only -- not part of attachment.
1шт.
48
13417D
BEARING, CUP,56.92mm OD x 16mm W
FRONT WHEEL OUTER BEARING CUP
2шт.
For service only -- not part of attachment.
1шт.
49
40082DX
STAY ROD WITH BUSHING, 40084D
1шт.
109867
HEX NUT, 1-3/8" N.F.
2шт.
118028
LOCKWASHER, 1-3/8"
2шт.
50
40084DA
BUSHING
STAY ROD BUSHING
1шт.
51
350557R1
PIN
FRONT AXLE CLAMP PIN (S/N 221946 up)
2шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
2шт.
52
350555R1
FRONT AXLE PIVOT PIN GREASE NIPPLE (S/N 221946 up)
1шт.
53
350558R1
BOLT
FRONT AXLE CLAMP BOLT (S/N 221946 up)
4шт.
103031
TROUGH
HEX NUT, 3/4" N.F.
4шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
12329D
STEERING KNUCKLE ARM BALL (S/N, Serial Range: 501-317617)
1шт.
40087D
FRONT AXLE ADJUSTING KEY (S/N, Serial Range: 501-221945)
2шт.
67957D
FITTING
STARTING CRANK RATCHET LUBRICATOR, 1/8" - 90 degree elbow fitting, 1-13/16" overall, Illustrated with upper bolster
1шт.
For tractors equipped with short wheel base.
1шт.
68250D
STEERING CONNECTION SLEEVE, 67950D with fork, 67952D (Will work for 40097D and 40099D) (S/N, Serial Range: 501-134674)
1шт.
RADIATOR DRIAN PIPE, 3/8 x 6-1/2" long, Illustrated with radiator
1шт.
For tractors equipped with short wheel base.
1шт.
RADIATOR DRAIN PIPE CONNECTION, 3/8" - 45 degree street elbow, Illustrated with radiator
1шт.
For tractors equipped with short wheel base.
1шт.
Выбрано товаров: 138
