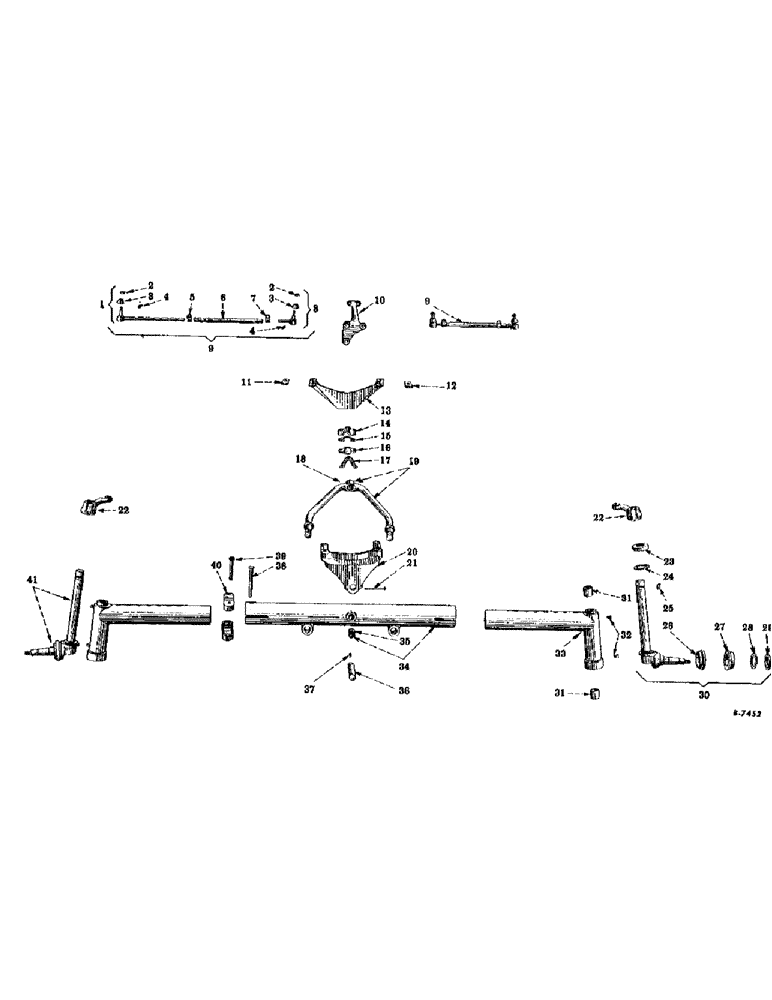

Запчасти Case IH FARMALL HV (232) - ATTACHMENTS, ADJUSTABLE WIDE TREAD FRONT AXLE, SPECIAL, FARMALL "H" ONLY Attachments
№
Артикул
Название
Примечание
Количество
360398R91
ADJUSTABLE WIDE TREAD FRONT AXLE ATTACHMENT
1шт.
1
358983R91
TIE-ROD
TIE ROD END (Adjustable) with cover, 358900R1, nut, 358901R1 and pin, 103386 (Thompson products)
2шт.
1
359984R91
ROD
TIE ROD END (Adjustable) with cover, 359982R1, nut, 359983R1 and pin, 103386 (Columbus auto parts)
2шт.
2
358901R1
SLOTTED NUT
TIE ROD END NUT (Thompson products)
4шт.
2
359983R1
NUT
TIE ROD END NUT (Columbus auto parts)
4шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
4шт.
3
358900R1
SEAL
TIE ROD END DUST COVER (Thompson products)
4шт.
3
359982R1
COVER
TIE ROD END DUST COVER (Columbus auto parts)
4шт.
4
109461
LUBE NIPPLE,1/8"-27 x .66 lg
LUBRICATION FITTING (1/8" straight) (Tie rod end) (Optional with 119512)
4шт.
4
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
LUBRICATION FITTING (1/8" straight) (Tie rod end) (Optional with 109461)
4шт.
5
358982R1
TIE ROD CLAMP (Adjustable end tube) (Thompson products)
2шт.
5
359986R1
CLAMP
TIE ROD CLAMP (Adjustable end tube) (Columbus auto parts)
2шт.
181435
BOLT,Hex, 1/2" - 20 x 2", Gr 5
CAP SCREW, 1/2 x 2" N.F. hex head
2шт.
25-118
NUT,1/2"-20, G5
HEX NUT, 1/2" N.F.
2шт.
6
358980R1
TIE ROD TUBE (Thompson products)
2шт.
6
359980R1
TUBE
TIE ROD TUBE (Columbus auto parts)
2шт.
7
358981R1
TIE ROD CLAMP (Threaded end tube) (Thompson products)
2шт.
7
359985R1
CLAMP
TIE ROD CLAMP (Threaded end tube) (Columbus auto parts)
2шт.
181435
BOLT,Hex, 1/2" - 20 x 2", Gr 5
CAP SCREW, 1/2 x 2" N.F. hex head
2шт.
25-118
NUT,1/2"-20, G5
HEX NUT, 1/2" N.F.
2шт.
8
360678R91
END
TIE ROD END (Threaded) with cover, 358900R1, nut, 358901R1 and pin, 103386 (Thompson products)
2шт.
8
359981R91
END
TIE ROD END (Threaded) with cover, 359982R1, nut, 359983R1 and pin, 103386 (Columbus auto parts)
2шт.
9
358979R91
TIE ROD, complete (Thompson products) (Optional with 359569R91)
2шт.
9
359569R1
TIE ROD, complete (Columbus auto parts) (Optional with 358979R91)
2шт.
10
360365R1
STEERING GEAR ARM
1шт.
181485
LEVER
CAP SCREW, 5/8" x 2-1/4" N.F. hex head
3шт.
425-1110
NUT,5/8"-18, G5
3шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
3шт.
11
51693D
BAR
STAY ROD BALL SOCKET SUPPORT WASHER (17/32" hole)
2шт.
12
51811D
WASHER
STAY ROD BALL SOCKET SUPPORT WASHER (21/32" hole)
2шт.
13
360418R1
STAY ROD BALL SOCKET SUPPORT
1шт.
181435
BOLT,Hex, 1/2" - 20 x 2", Gr 5
CAP SCREW, 1/2 x 2" N.F. hex head
2шт.
181484
CAP SCREW, 5/8 x 2" N.F. hex head
2шт.
25-118
NUT,1/2"-20, G5
HEX NUT, 1/2" N.F.
2шт.
425-1110
NUT,5/8"-18, G5
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
14
9020D
SOCKET
STAY ROD BALL SOCKET
1шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
CAP SCREW, 1/2 x 1-5/8" N.C. hex head
1шт.
15
60762D
SHIM
STAY ROD BALL SOCKET CAP SHIM
4шт.
16
60763DB
CYLINDER END CAP
STAY ROD BALL SOCKET CAP
1шт.
179893
BOLT,Hex, 1/2" - 13 x 3", Gr 5
CAP SCREW, 1/2 x 3" N.C. hex head
2шт.
17
60566D
PLATE
STAY ROD BALL SOCKET AND CAP LOCK PLATE
1шт.
18
10546D
BALL
STAY ROD BALL
1шт.
19
360405R11
ROD
STAY ROD WITH BALL, 10546D
1шт.
427392
HEX JAM NUT, 1-3/8" N.F.
2шт.
118028
LOCKWASHER, 1-3/8" light
2шт.
20
358969R1
LOWER BOLSTER
1шт.
179955
CAP SCREW, 3/4 x 2-3/4" N.C. hex head
2шт.
179959
CAP SCREW, 3/4 x 3-3/4" N.C. hex head
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
21
Q3537
HEADED PIN,3/8" x 4 1/8"
DRILLED STANDARD HEAD PIN, 3/8 x 4-1/8" (Front axle pivot lock)
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
22
358971R1
STEERING KNUCKLE ARM
2шт.
181488
CAP SCREW, 5/8 x 3" N.F. hex head
2шт.
425-1110
NUT,5/8"-18, G5
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
23
357349R91
THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W
THRUST BALL BEARING
2шт.
24
55412D
WASHER
STEERING KNUCKLE PIVOT FELT WASHER
2шт.
25
40093D
WOODRUFF KEY,#127, 1/4" x 2 1/8", HT
1/4 x 2-1/8" (Alloy-steel)
2шт.
26
48541D
SHIELD
FRONT WHEEL DUST SHIELD
2шт.
27
50270D
SPACER
FRONT WHEEL BEARING SPACER
2шт.
28
50259D
WASHER
FRONT WHEEL FELT WASHER
2шт.
29
48539D
FRONT WHEEL OIL SEAL (Optional with 358778R91 or 358817R91)
2шт.
29
358778R91
OIL SEAL
FRONT WHEEL OIL SEAL (Optional with 48539D or 358817R91)
2шт.
29
358817R91
OIL SEAL
FRONT WHEEL OIL SEAL (Optional with 48539D or 358778R91)
2шт.
30
360420R91
STEERING KNUCKLE (R.H.), complete
1шт.
108643
COTTER PIN,5/32" x 1 3/8"
Pin, Split (Cotter), 5/32" x 1 3/8"
1шт.
31
358958R1
BUSHING
STEERING KNUCKLE PIVOT BUSHING
4шт.
32
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
LUBRICTATION FITTING, 90 degree elbow, 1/8" (Steering knuckle pivot pin) (Optional with 109354)
4шт.
32
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
LUBRICATION FITTING, 90 degree elbow, 1/8" (Steering knuckle pivot pin) (Optional with 109462)
4шт.
33
360403R91
FRONT AXLE EXTENSION WITH TWO BUSHINGS, 358958R1
2шт.
34
358976R11
FRONT AXLE
WITH TWO BUSHINGS, 48841D
1шт.
35
48841D
BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L
FRONT AXLE PIVOT PIN BUSHING
2шт.
36
358978R1
PIN
FRONT AXLE PIVOT PIN
1шт.
37
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , Taper, Straight (Front axle pivot pin) (Optional with 110347) 1/4"-28 NPT x .54" lg
1шт.
37
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
LUBRICATION FITTING, straight, 1/4" - 28NS taper (Front axle pivot pin) (Optional with 109454)
1шт.
38
350557R1
PIN
FRONT AXLE CLAMP PIN
2шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
2шт.
39
350558R1
BOLT
FRONT AXLE CLAMP BOLT
4шт.
103031
TROUGH
HEX NUT, 3/4" N.F.
4шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
40
350556R1
CLAMP
FRONT AXLE CLAMP
4шт.
41
360419R91
STEERING KNUCKLE (L.H.), complete
1шт.
108643
COTTER PIN,5/32" x 1 3/8"
Pin, Split (Cotter), 5/32" x 1 3/8"
1шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
2шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
2шт.
Выбрано товаров: 87
