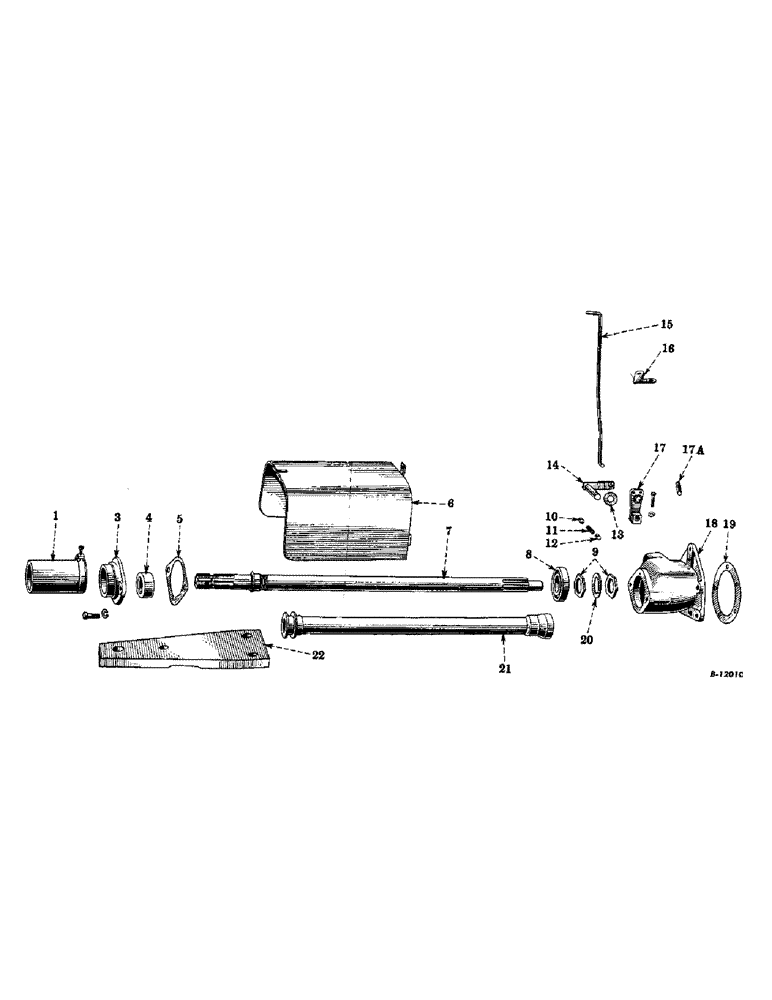

Запчасти Case IH FARMALL HV (230) - ATTACHMENTS, POWER TAKE-OFF, SPECIAL, SERIAL NO. 118000 AND UP Attachments

66369DA

POWER TAKE-OFF ATTACHMENT WITH DRAWBAR EXTENSION (Farmall H) (Will work for 49172DC, 56333D, 59371D and 59374D as shown below) (S/N 118000 up)

1шт.

68670DA

POWER TAKE-OFF ATTACHMENT ONLY (Farmall HV) (S/N 118000 up)

1шт.

1

51484DX

POWER TAKE-OFF SHAFT GUARD, with clamp

1шт.

3

9572DX

RETAINER

POWER TAKE-OFF OIL SEAL RETAINER WITH OIL SEAL, 45702D

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

CAP SCREW, 7/16 x 1-1/8" N.C.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

4

45702D

OIL SEAL

POWER TAKE-OFF SHAFT OIL SEAL (Optional with 358772R91 and 358812R91)

1шт.

4

358772R91

OIL SEAL

POWER TAKE-OFF SHAFT OIL SEAL (Optional with 45702D and 358812R91)

1шт.

4

358812R91

OIL SEAL

POWER TAKE-OFF SHAFT OIL SEAL (Optional with 45702D and 3588772R91)

1шт.

5

66374D

GASKET

POWER TAKE-OFF OIL SEAL RETAINER GASKET

1шт.

6

66387DAXA

POWER TAKE-OFF SAFETY SHIELD, complete

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

66368D

POWER TAKE-OFF SHAFT

1шт.

8

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

POWER TAKE-OFF SHAFT BALL BEARING

1шт.

9

66375D

POWER TAKE-OFF SHAFT BEARING LOCK NUT

2шт.

10

103884

PLUG,Slotted, 1/4" NPT

POWER TAKE-OFF POPPET PLUG (1/4" slotted head pipe plug)

1шт.

11

48103D

VALVE SPRING

POWER TAKE-OFF SHIFTER POPPET SPRING

1шт.

12

48102D

PIN

POWER TAKE-OFF SHIFTER POPPET

1шт.

13

358796R91

OIL SEAL

POWER TAKE-OFF SHIFTER LEVER SHAFT OIL SEAL (Optional with 70268D and 358831R91)

1шт.

13

70268D

SEAL

POWER TAKE-OFF SHIFTER LEVER SHAFT OIL SEAL (Same as 47634D) (Optional with 358796R91 and 358831R91)

1шт.

13

358831R91

OIL SEAL

POWER TAKE-OFF SHIFTER LEVER SHAFT OIL SEAL (Optional with 70268D and 358831R91)

1шт.

14

67060DX

SHAFT

POWER TAKE-OFF SHIFTER LEVER AND SHAFT

1шт.

181316

SUPPORT

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10620P

WASHER

21/32" I.D. x 1-1/2" O.D. x no. 16 ga.

1шт.

15

66383DA

POWER TAKE-OFF SHIFTER ROD (Used with 66384DB) (Not part of attachment)

1шт.

15

359591R1

POWER TAKE-OFF SHIFTER ROD (Used with 358384R1)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

95-11034

WASHER,1/4"

11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

16

66384DB

POWER TAKE-OFF SHIFTER ROD GUIDE (3-5/16" long)

1шт.

16

358384R1

POWER TAKE-OFF SHIFTER ROD GUIDE (2-3/16" long)

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

CAP SCREW, 7/16 x 3-1/4" N.C.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

496-21047

WASHER

15/32" I.D. x 59/64" O.D. x no. 16 ga.

1шт.

17

66377DC

ARM

POWER TAKE-OFF SHIFTER LEVER ARM

1шт.

17a

142520

GROOVE PIN, 1/4 x 1" (Power take-off shifter lever stop)

1шт.

18

9571DAX

POWER TAKE-OFF HOUSING, w/oil seal, 70268D, and stop, 142520

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

19

43324D

GASKET

POWER TAKE-OFF HOUSING GASKET

1шт.

20

66376D

POWER TAKE-OFF SHAFT BEARING LOCK NUT WASHER

1шт.

21

66372DX

POWER TAKE-OFF SHIFTER TUBE, complete 26.197" Length

1шт.

22

66426D

DRAWBAR EXTENSION (Used on Farmall H only)

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C.

2шт.

114821

HEX NUT, 3/4" N.C.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
