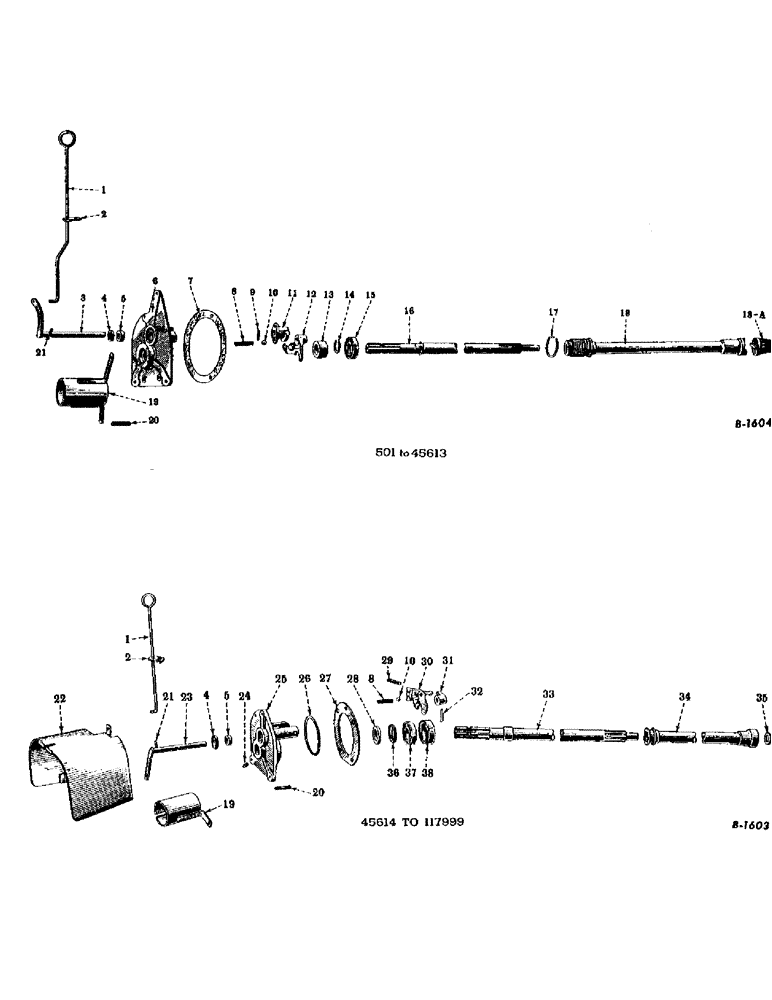

Запчасти Case IH FARMALL HV (226) - ATTACHMENTS, POWER TAKE-OFF, SPECIAL, MACHINE ATTACHMENTS, SERIAL NO. 501 TO 117999 Attachments

1

55330D

POWER TAKE-OFF SHIFTER ROD

1шт.

1077662

COTTER PIN, 3/32 x 5/8"

1шт.

2

51449D

POWER TAKE-OFF SHIFTER ROD GUIDE

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

CAP SCREW, 7/16 x 3-1/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

55384DX

POWER TAKE-OFF SHIFTER SHAFT AND ARM (A, B)

1шт.

4

55382D

POWER TAKE-OFF SHIFTER SHAFT CUP WASHER

1шт.

5

70268D

SEAL

POWER TAKE-OFF SHIFTER SHAFT OIL SEAL (Same as 47634D) (Optional with 358796R91 and 358831R91)

1шт.

5

358796R91

OIL SEAL

POWER TAKE-OFF SHIFTER SHAFT OIL SEAL (Optional with 70268D and 358831R91)

1шт.

5

358831R91

OIL SEAL

POWER TAKE-OFF SHIFTER SHAFT OIL SEAL (Optional with 70268D and 358796R91)

1шт.

6

8102DBX

POWER TAKE-OFF HOUSING WITH OIL SEAL, 45007D and oil seal, 70268D (A, B)

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

CAP SCREW, 3/8 x 1-3/8" N.C. hex head (A, B)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

CAP SCREW, 3/8 x 1-1/8" N.C. hex head (A, B)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , N.C. (A, B) 3/8"

3шт.

7

43324D

GASKET

POWER TAKE-OFF SHIFTER COVER GASKET (A, B)

1шт.

8

23921D

POWER TAKE-OFF SHIFTER POPPET SPRING

1шт.

9

19807D

POWER TAKE-OFF SHIFTER CAM PIN (A, B)

1шт.

10

D2616

BALL

POWER TAKE-OFF SHIFTER POPPET (Same as 4596D) (Optional with 13722D) (Will work for 29366H)

1шт.

10

13722D

BALL

POWER TAKE-OFF SHIFTER POPPET (Optional with D2616) (Will work for 29366H)

1шт.

10

29366H

EXCITER

POWER TAKE-OFF SHIFTER POPPET (Order D2616 or 13722D)

1шт.

11

6188DA

POWER TAKE-OFF SHIFTER CAM (A, B)

1шт.

12

8460D

POWER TAKE-OFF SHIFTER FORK (S/N 501 to 45613) (A, B)

1шт.

13

45007D

SEAL

POWER TAKE-OFF SHAFT OIL SEAL (Optional with 358771R91 and 35811R91) (A, B)

1шт.

13

358771R91

OIL SEAL

POWER TAKE-OFF SHAFT OIL SEAL (Optional with 45007D and 35811R91) (A, B)

1шт.

13

358811R91

OIL SEAL

POWER TAKE-OFF SHAFT OIL SEAL (Optional with 45007D and 358771R91) (A, B)

1шт.

14

43993D

POWER TAKE-OFF SHAFT BEARING RETAINER, small (Snap ring) (A, B)

2шт.

15

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

POWER TAKE-OFF SHAFT BEARING (A, B)

1шт.

16

51558D

POWER TAKE-OFF SHAFT (A, B)

1шт.

17

43994D

POWER TAKE-OFF SHAFT BEARING RETAINER, large (Snap ring) (A, B)

1шт.

18

53625DA

POWER TAKE-OFF SHIFTER TUBE, complete (Order 56240D) (S/N 501 to 9535) (A)

1шт.

18a

59372DX

TRANSMISSION COUNTERSHAFT ADAPTER WITH BUSHING, 43328D (D)

1шт.

19

51535DX

POWER TAKE-OFF SHAFT GUARD AND 2 BRACES

1шт.

20

51538D

POWER TAKE-OFF HOUSING STUD

2шт.

280136

NUT,3/8"-16, G8

HEX NUT, 3/8" N.F.

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

45051D

POWER TAKE-OFF SHIFTER FORK PIN (Order 55381D) (C, D)

1шт.

21

55381D

POWER TAKE-OFF SHIFTER SHAFT PIN

1шт.

22

55013DXA

POWER TAKE-OFF SAFETY SHIELD (S/N, Serial Range: 15878-117999)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

23

59368D

POWER TAKE-OFF SHIFTER SHAFT AND ARM (C, D)

1шт.

24

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

POWER TAKE-OFF SHAFT BEARING LUBRICATOR (Same as 14186DA) (Optional with 109461) (C, D)

1шт.

24

109461

LUBE NIPPLE,1/8"-27 x .66 lg

POWER TAKE-OFF SHAFT BEARING LUBRICATOR (Same as Q3615) (Optional with 119512) (C, D)

1шт.

25

8952DAX

POWER TAKE-OFF HOUSING, complete (S/N 60921 to 117999) (C, D)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

CAP SCREW, 3/8 x 1-1/8" N.C. hex head (C, D)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (C, D) 3/8"

3шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (C, D) 1/8" x 1 1/4"

1шт.

25

60823D

POWER TAKE-OFF HOUSING, complete (Will work for 8952DX) (S/N 9536 to 60920) (C, D)

1шт.

26

58419D

SEALING RING

POWER TAKE-OFF HOUSING RUBBER SEAL (C, D)

1шт.

27

59361D

POWER TAKE-OFF HOUSING SHIM (C, D)

1шт.

28

59357DA

WASHER

POWER TAKE-OFF SHAFT FELT WASHER (C, D)

1шт.

29

60825D

POWER TAKE-OFF SHIFTER COLLAR FORK SHAFT (S/N 82303 to 117999) (C, D)

1шт.

30

8954DA

POWER TAKE-OFF SHIFTER COLLAR FORK (S/N 9536 to 82302) (C, D)

1шт.

30

9153D

POWER TAKE-OFF SHIFTER COLLAR FORK (S/N 82303 to 117999) (C, D)

1шт.

31

8953D

POWER TAKE-OFF SHIFTER FORK (C, D)

1шт.

32

55381D

POWER TAKE-OFF SHIFTER FORK PIN (Will work for 45051D) (C, D)

1шт.

33

59356D

POWER TAKE-OFF SHAFT (C)

1шт.

33

59373D

POWER TAKE-OFF SHAFT (D)

1шт.

34

53625DE

POWER TAKE-OFF SHIFTER TUBE (S/N 9536 to 45613) (A, B)

1шт.

34

59363D

POWER TAKE-OFF SHIFTER TUBE, complete (C, D)

1шт.

35

59359D

POWER TAKE-OFF SHAFT THRUST WASHER (C, D)

1шт.

36

59358D

POWER TAKE-OFF SHAFT FELT WASHER RETAINER (C, D)

1шт.

37

59406D

BEARING

POWER TAKE-OFF SHAFT BEARING (Optional with ST568) (C, D)

1шт.

37

ST568

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

POWER TAKE-OFF SHAFT BEARING (Optional with 59406D) (C, D)

1шт.

38

59401D

SEAL

POWER TAKE-OFF SHAFT OIL SEAL (Optional with 358790R91) (C, D)

1шт.

38

358790R91

OIL SEAL

POWER TAKE-OFF SHAFT OIL SEAL (Optional with 59401D) (C, D)

1шт.

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

TRANSMISSION COUNTERSHAFT ADAPTER BUSHING (D)

1шт.

50708DXA

POWER TAKE-OFF SHIFTER SHAFT, complete (Order 55385D) (A)

1шт.

51450D

POWER TAKE-OFF SHIFTER ROD (A)

1шт.

55305D

POWER TAKE-OFF SAFETY SHIELD FIELD CHANGE PACKAGE (S/N 501 to 15877) (A, B)

1шт.

55385D

POWER TAKE-OFF SHIFTER SHAFT REPAIR PACKAGE (Will work for 50708DXA) (A)

1шт.

56240D

POWER TAKE-OFF SHIFTER TUBE, 53625DE and brake pedal shaft, 50170DA (Will work for 53625DA) (S/N 4588 to 9535) (A)

1шт.

59367D

POWER TAKE-OFF SHIFTER COLLAR FORK SHAFT (S/N 9536 to 82302) (C, D)

1шт.

59411D

POWER TAKE-OFF FIELD IMPROVEMENT PACKAGE (For tractors equipped with power take-off attachments) (To make available improved power take-off) (S/N 501 to 45613) (A, B)

1шт.

60252D

1шт.

POWER TAKE-OFF AND TRANSMISSION COUNTERSHAFT FIELD IMPROVEMENT PACKAGE (For tractors equipped with power take-off and countershaft with notched end) (To make available improved power take-off and transmission countershaft with splined end) (S/N 501 to 45613) (A, B)

1шт.
