Запчасти Case IH FARMALL HV (216) - ATTACHMENTS, ENGINE HOUR METER, SPECIAL Attachments

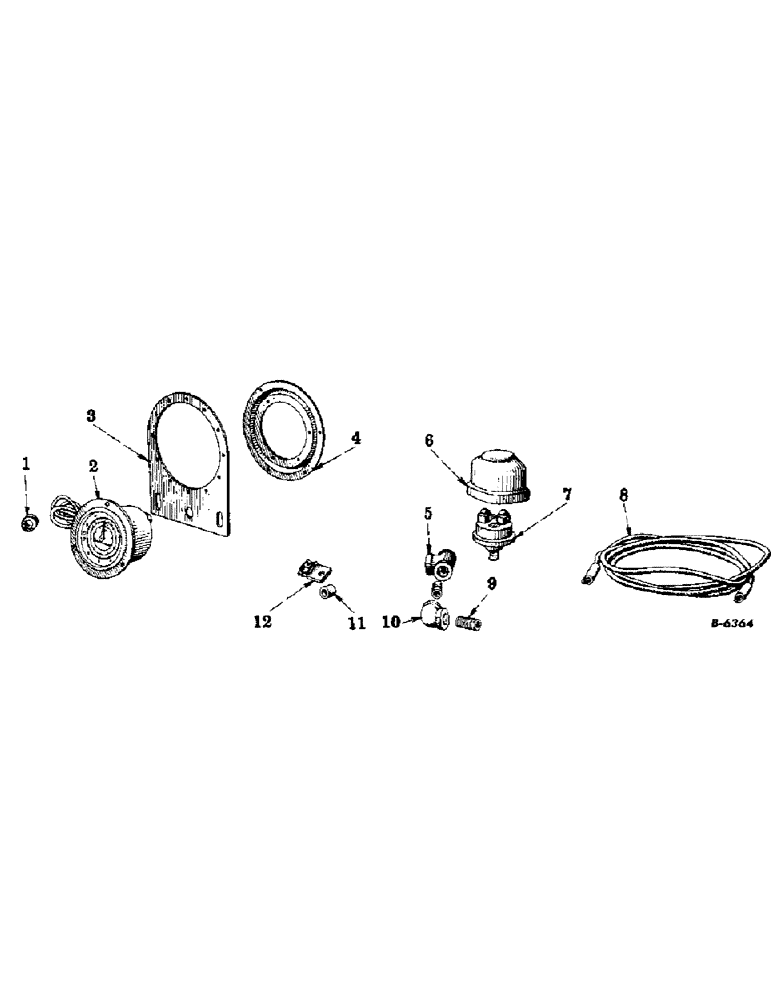

Схема запчастей Case IH FARMALL HV - (216) - ATTACHMENTS, ENGINE HOUR METER, SPECIAL Attachments
4
6
2
3
8
1
10
5
12
11
7
9

Артикул

Название

Примечание

Количество

356735R91

ENGINE HOUR METER ATTACHMENT (For tractors equipped with electric starting and/or lighting)

1шт.

1

187540

RUBBER GROMMET (Optional with 33560D) 1/4" ID x 5/8" x .125", Diag Cut

1шт.

1

33560D

RUBBER GROMMET (Optional with 187540)

1шт.

2

356736R91

HOUR METER

1шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

SLOTTED SCREW, no. 6-32 x 1/2" round head (Cadmium plated)

3шт.

138526

LOCK WASHER

LOCKWASHER, no. 6 (Cadmium plated)

3шт.

3

356738R1

HOUR METER MOUNTING BRACKET

1шт.

171589

SLOTTED SCREW, no. 12-24 x 1/2" round head, self-tapping (Cadmium plated)

2шт.

125751

WASHER,Ext Tooth, #10

LOCKWASHER, no. 12

2шт.

446179

WASHER,#12

1/2" O.D. x 1/4" I.D. x no. 18 ga.

2шт.

4

356737R91

DAMPER

HOUR METER VIBRATION DAMPER

1шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

SLOTTED SCREW, no. 6-32 x 1/2" round head (Cadmium plated)

3шт.

138526

LOCK WASHER

LOCKWASHER, no. 6

3шт.

5

105416

TEE,1/8" NPT, Fem

PIPE TEE, 1/8"

1шт.

6

354558R1

SHIELD

PRESSURE SWITCH SHIELD

1шт.

7

356739R91

SWITCH

HOUR METER PRESSURE SWITCH

1шт.

8

358581R91

PRESSURE SWITCH TO JUNCTION BLOCK CABLE

1шт.

9

144580

NIPPLE, LUBE,Nipple, 1/8" NPT x 7/8"

NIPPLE, 1/8 x 7/8" close

2шт.

10

105412

ELBOW,90 Degree, 1/8" NPT

1/8" malleable iron, 90 degrees

1шт.

11

354260R1

SPACER,1/8" Pipe x 7/16"

JUNCTION BLOCK SPACER

1шт.

12

42915D

BLOCK

JUNCTION BLOCK

1шт.

132919

SCREW,Sl Rnd Hd, #10 - 32 x 7/8"

SLOTTED SCREW, no. 10-32 x 7/8" round head (Cadmium plated)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Выбрано товаров: 24
