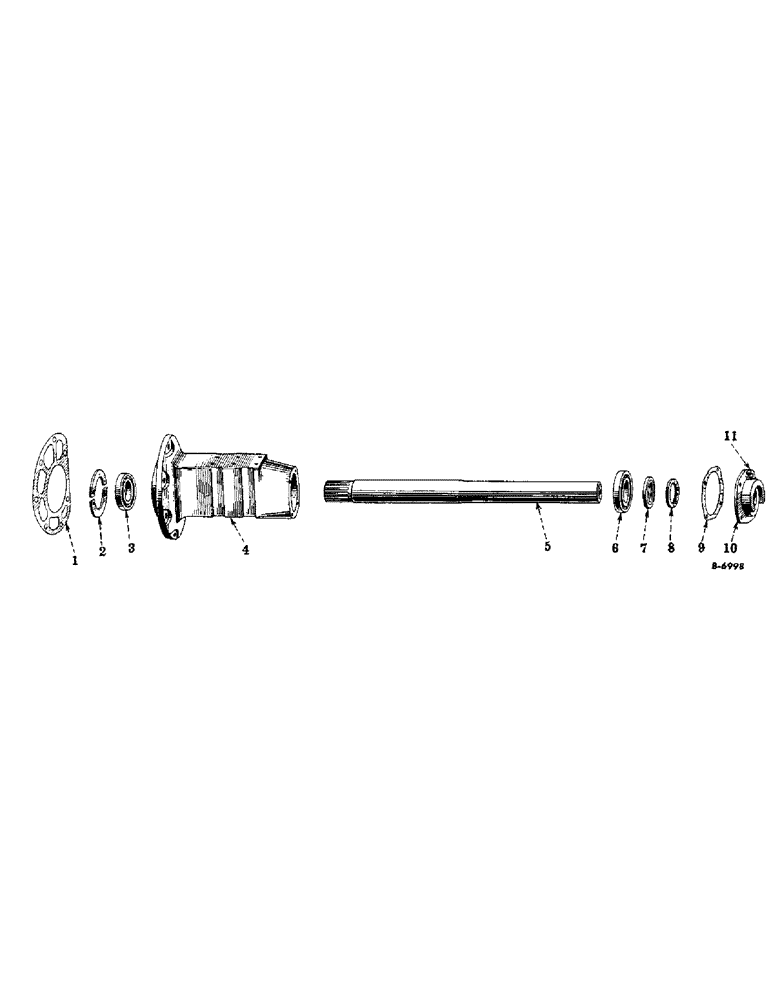

Запчасти Case IH FARMALL H (141) - CHASSIS, REAR AXLE, FARMALL "H" ONLY (12) - CHASSIS

1

49789D

GASKET

REAR AXLE CARRIER GASKET

2шт.

2

353159R91

REAR AXLE INNER BALL BEARING RETAINER PACKAGE (Consists of 2 retainers, 353158R1) (Will work for 43718D) (S/N, Serial Range: 501-285197)

2шт.

2

353158R1

REAR AXLE INNER BALL BEARING RETAINER (S/N 285198 up)

4шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

CAP SCREW, 7/16-14 x 1" N.C. hex head

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

3

ST227B

BALL BEARING,60mm ID x 110mm OD x 22mm W

REAR AXLE INNER BALL BEARING

2шт.

ITEM #3 S/B ST227B DJO 2/29/96

1шт.

4

6855DA

REAR AXLE CARRIER, L.H.

1шт.

179929

BOLT,Hex, 5/18" - 11 x 1 3/4"

CAP SCREW, 5/8-11 x 1-3/4" N.C. hex head

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

4

6856DA

REAR AXLE CARRIER, R.H.

1шт.

179929

BOLT,Hex, 5/18" - 11 x 1 3/4"

CAP SCREW, 5/8-11 x 1-3/4" N.C. hex head

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

5

51559DB

REAR AXLE (S/N, Serial Range: 501-391357)

2шт.

5

358102R1

REAR AXLE (S/N 391358 up)

2шт.

5

52145DC

REAR AXLE (For 100" maximum tread) (Special)

2шт.

6

ST328A

BALL BEARING,65mm ID x 120mm OD x 23mm W

REAR AXLE OUTER BALL BEARING (Will work for ST252)

2шт.

7

43722D

SEAL

REAR AXLE OIL SEAL (Optional with 358770R91 and 360251R91)

2шт.

7

358770R91

OIL SEAL

REAR AXLE OIL SEAL (Optional with 43722D and 360251R91)

2шт.

7

360251R91

OIL SEAL

REAR AXLE OIL SEAL (Optional with 43722D and 358770R91)

2шт.

8

43720D

SEALING WASHER,62.71mm ID x 84.93mm OD x 7.94mm Thk

REAR AXLE FELT WASHER

2шт.

9

48463D

GASKET

REAR AXLE CARRIER CAP GASKET

2шт.

10

6669DBX

REAR AXLE CARRIER CAP WITH OIL SEAL, 43722D and washer, 43720D

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

CAP SCREW, 3/8-16 x 1" N.C. hex head

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

REAR AXLE OUTER BEARING LUBRICATION FITTING (1/8" straight) (Optional with 109461)

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

REAR AXLE OUTER BEARING LUBRICATION FITTING (1/8" straight) (Optional with 119512)

2шт.

52146DB

100" WIDE TREAD REAR AXLE ATTACHMENT (Consisting of two rear axles, 52145DC)

1шт.

353322R92

REAR AXLE EXTENSION ATTACHMENT (Tractors equipped with pneumatic tire rear wheels)

1шт.

353325R2

REAR AXLE EXTENSION

1шт.

353326R1

REAR AXLE EXTENSION CLAMP

2шт.

129-129

NUT,7/8"-14, G5

HEX NUT, 7/8-14 N.F.

10шт.

181533

CAP SCREW, 7/8-14 x 4-3/4" N.F. hex head

10шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

10шт.
