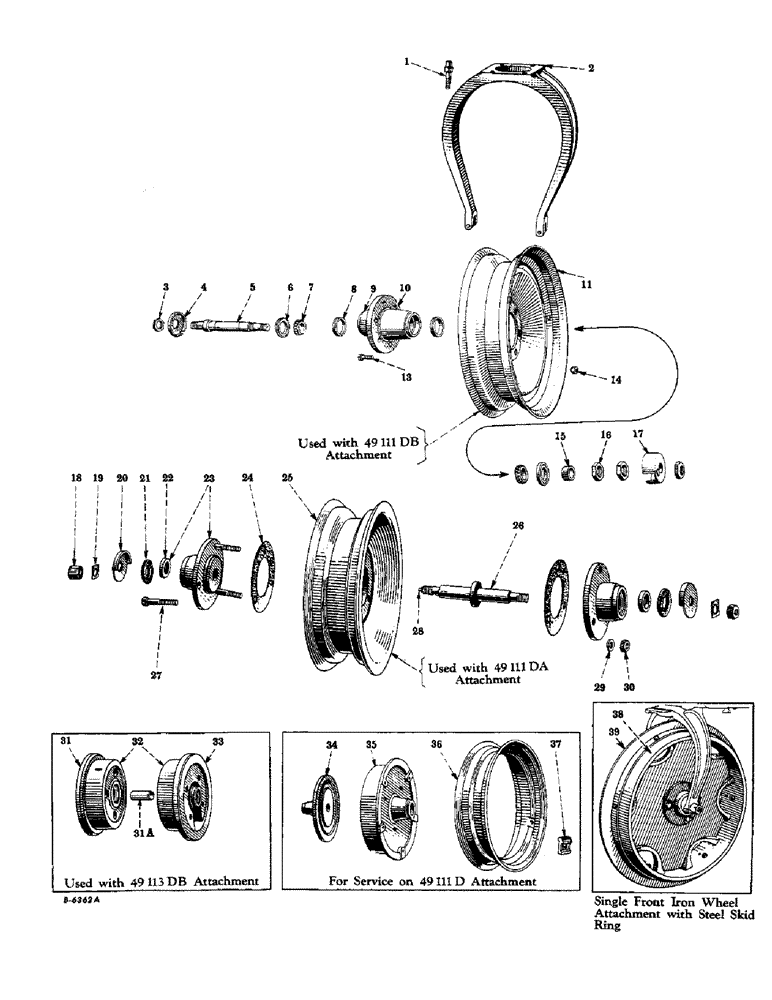

Запчасти Case IH FARMALL H (138) - CHASSIS, SINGLE FRONT WHEEL, FARMALL "H" ONLY (12) - CHASSIS

49111DB

SINGLE FRONT WHEEL PNEUMATIC TIRE ATTACHMENT (For 6.50 x 16 tire)

1шт.

49113DB

SINGLE FRONT WHEEL PNEUMATIC TIRE ATTACHMENT (For 7.50 x 10 tire)

1шт.

67876D

SINGLE FRONT WHEEL ATTACHMENT (Steel) (For regular use and to replace dual front steel wheels)

1шт.

67877D

SINGLE FRONT WHEEL ATTACHMENT (Steel) (To replace 7.50 x 10 single front wheel pneumatic tire equipment)

1шт.

67878D

SINGLE FRONT WHEEL ATTACHMENT (Steel) (To replace 6.50 x 16 single front wheel pneumatic tire equipment)

1шт.

1

49109DA

STEERING STOP BOLT

1шт.

352535R1

STEERING STOP BOLT NUT

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

6195DB

FRONT BOLSTER FORK

1шт.

13376R1

MACHINE BOLT, 3/8 x 2-1/2" N.C.

2шт.

181485

LEVER

CAP SCREW, 5/8 x 2-1/4" N.F. hex head

3шт.

280136

NUT,3/8"-16, G8

2шт.

352535R1

HEX NUT, 5/8" N.F. (Case hardened)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3

451034

PTO

FRONT AXLE NUT (Optional with 355134R1)

2шт.

3

355134R1

FRONT AXLE NUT (Optional with 451034)

2шт.

103347

WASHER

plain, 15/16" I.D. x 1-3/4" O.D. x no. 10 ga.

2шт.

4

355127R11

FRONT WHEEL HUB SHIELD WITH LOCK (Short)

1шт.

5

355133R1

FRONT AXLE

1шт.

6

355131R91

SEAL

FRONT WHEEL OIL SEAL (Optional with 360253R91)

2шт.

6

360253R91

OIL SEAL

FRONT WHEEL OIL SEAL (Optional with 355131R91)

2шт.

7

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

FRONT WHEEL BEARING CONE

2шт.

8

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

FRONT WHEEL BEARING CUP

2шт.

9

109353

FRONT WHEEL BEARING LUBRICATOR (Optional with 109459)

1шт.

9

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FRONT WHEEL BEARING LUBRICATOR (Optional with 109353)

1шт.

10

355129R11

FRONT WHEEL HUB WITH TWO CUPS, 642954R1

1шт.

181729

BOLT,Hex, 9/16" - 18 x 1 3/4"

CAP SCREW, 9/16 x 1-3/4" hex head

6шт.

351793R1

WHEEL NUT

FRONT WHEEL MOUNTING NUT

6шт.

11

355130R91

FRONT WHEEL (For 6.50 x 16 tire)

1шт.

13

181729

BOLT,Hex, 9/16" - 18 x 1 3/4"

FOLLOWS REFERENCE NO. 10

1шт.

14

351793R1

WHEEL NUT

FOLLOWS REFERENCE NO. 10

1шт.

15

355132R1

FRONT WHEEL BEARING SPACER

1шт.

16

355135R1

FRONT WHEEL BEARING ADJUSTABLE NUT (Optional with 451094)

1шт.

16

451094

FRONT WHEEL BEARING ADJUSTABLE NUT (Optional with 355135R1)

1шт.

17

355128R11

FRONT WHEEL HUB SHIELD WITH LOCK (Long)

1шт.

18

23742D

FRONT AXLE NUT

1шт.

19

23743D

LOCK WASHER

FRONT AXLE NUT LOCKWASHER

2шт.

20

23762DX

SHIELD

FRONT WHEEL HUB SHIELD AND LOCK

2шт.

21

23760D

SEALING WASHER

FRONT WHEEL FELT WASHER

2шт.

22

42183D

FRONT WHEEL OIL SEAL

2шт.

23

8296DX

FRONT WHEEL HUB WITH OIL SEAL, 42183D

2шт.

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

CAP SCREW, 5/8 x 3-1/2" N.C. hex head

3шт.

114820

HEX NUT, 5/8" N.C.

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

24

52874D

FRONT WHEEL HUB GASKET

2шт.

25

8295D

FRONT WHEEL (For6.50 x 16 tire)

1шт.

26

23740DA

SHAFT

FRONT AXLE

1шт.

129-129

NUT,7/8"-14, G5

HEX NUT, 7/8" N.F.

1шт.

27

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

FOLLOWS REFERENCE NO. 23

1шт.

28

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FRONT AXLE LUBRICATOR (Optional with 109461) (Same as 14186DA)

1шт.

28

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FRONT AXLE LUBRICATOR (Optional with 119512) (Same as Q3615)

1шт.

29

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Follows ref #23 5/8"

1шт.

30

114820

FOLLOWS REFERENCE NO. 23

1шт.

31

5630DAX

FRONT WHEEL, male half with oil seal, 42183D and bushing 359340R1 (For 7.50 x 10 tire)

1шт.

16154R1

CAP SCREW, 5/8 x 7" N.C. hex head

4шт.

114820

HEX NUT, 5/8" N.C.

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31a

359340R1

BUSHING

FRONT WHEEL BUSHING (Not used with 5630DX and 5631DX)

2шт.

32

40833DA

FRONT WHEEL, complete

1шт.

33

5631DAX

FRONT WHEEL, female half with oil seal, 42183D and bushing 359340R1 (For 7.50 x 10 tire)

1шт.

34

5861DX

FRONT WHEEL, male half with oil seal, 42183D (For 4.50 x 16 rim)

1шт.

13380R1

MACHINE BOLT, 5/8 x 2-1/2" N.C.

4шт.

114820

HEX NUT, 5/8" N.C.

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

35

5862DX

FRONT WHEEL, female half with oil seal, 42183D (For 4.50 x 16 rim)

1шт.

36

16407W

FRONT WHEEL RIM (4.50 x 16) (For 6.50 x 16 tire)

1шт.

37

6840D

FRONT WHEEL RIM CLAMP (Will work for 5536D)

1шт.

38

9681D

FRONT WHEEL

1шт.

39

67881D

FRONT WHEEL SKID RING

1шт.

13338R1

MACHINE BOLT, 1/2 x 2" N.C.

7шт.

114774

HEX NUT, 1/2" N.C.

7шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

360121R91

FRONT WHEEL HUB OVERHAUL PACKAGE (For service on 40833DA front wheel)

1шт.
