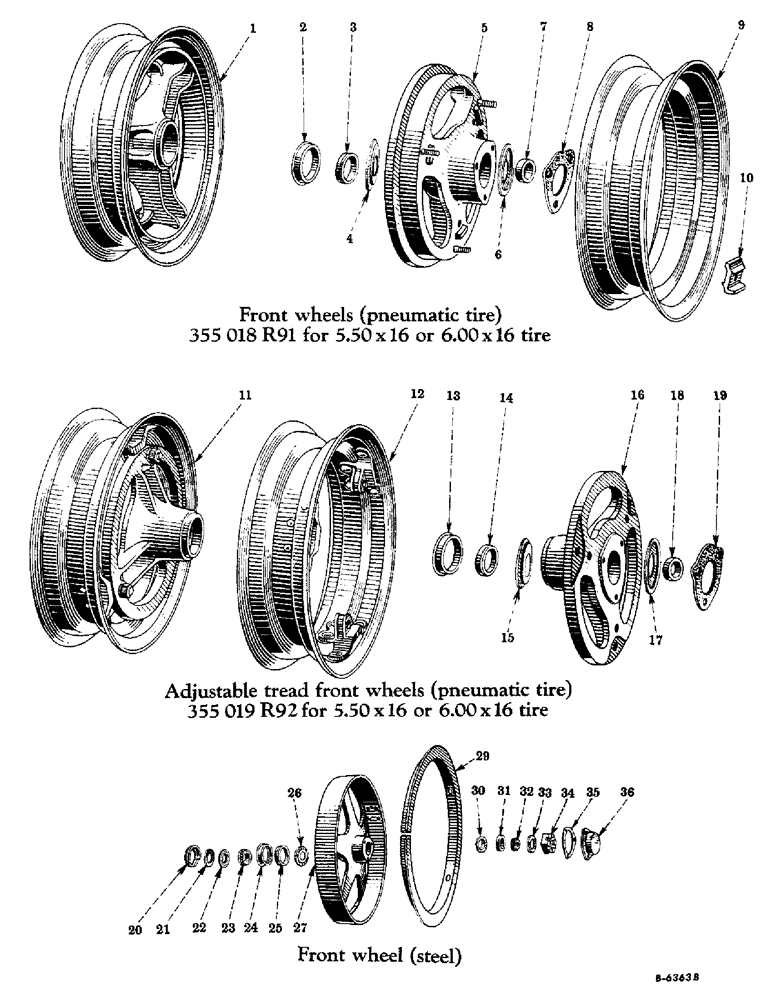

Запчасти Case IH FARMALL H (132[1]) - ADJUSTABLE TREAD FRONT WHEELS, PNEUMATIC TIRES, FARMALL "H" ONLY (12) - CHASSIS

1

355018R91

FRONT WHEEL 6762DFXA WITH RIM, 354244R91, complete, pneumatic tire equipment (For 5.50 x 16 or 6.00 x 16 tire) (Will work for 48981DA)

2шт.

2

48548D

WASHER

FRONT WHEEL FELT WASHER RETAINER

2шт.

3

13822V

BEARING

FRONT WHEEL INNER BEARING CUP

1шт.

4

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

FRONT WHEEL BEARING GREASE RETAINER, inner (S/N 123110 up)

2шт.

5

6762DFXA

FRONT WHEEL, complete

2шт.

6

60289D

WASHER

FRONT WHEEL BEARING GREASE RETAINER, outer (S/N 123110 up)

2шт.

7

13417D

BEARING, CUP,56.92mm OD x 16mm W

FRONT WHEEL OUTER BEARING CUP

2шт.

8

48547D

GASKET

FRONT WHEEL HUB CAP GASKET

2шт.

9

354223R1

WHEEL

FRONT WHEEL RIM (4.25 KA x 16 D.C. for 5.50 x 16 or 6.00 x 16 tire) (Will work for 45406D) (S/N, Serial Range: 501-254258)

2шт.

9

354244R91

RIM

FRONT WHEEL RIM (4.25 KA x 16 D.C. for 5.50 x 16 or 6.00 x 16 tire) (Will work for 351509R92) (S/N 254259 up)

2шт.

10

48976DA

CLAMP

FRONT WHEEL RIM CLAMP

6шт.

13399R1

BOLT

MACHINE BOLT, 1/2 x 2-3/4" N.C. (Order bolt 351510R1 and nut, 120371) (S/N, Serial Range: 501-254258)

6шт.

114774

HEX NUT, 1/2" N.C. (S/N 501 to 254258)

6шт.

11

355019R92

ADJUSTABLE TREAD FRON WHEELS, complete (For 5.50 x 16 or 6.00 x 16 tires) (Two will work for 52664DA)

2шт.

12

354246R91

RIM

FRONT WHEEL RIM (4.25 KA x 16 DC) (For 5.50 x 16 or 6.00 x 16 tires) (Will work for 52635DA) (S/N 160638 up)

2шт.

181783

CAP SCREW, 5/8 x 2-3/4" N.F. (Cadmium plated)

6шт.

352777R1

NUT

HEX NUT, 5/8" N.F. (Cadmium)

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

STEEL WASHER, 21/32" I.D. x 1-5/16" O.D. x no. 13 ga.

6шт.

12

65220DA

FRONT WHEEL RIM (4.25 KA x 16 DC) (Will work for 52635D) (S/N, Serial Range: 501-160637)

2шт.

13

48548D

WASHER

FRONT WHEEL FELT WASHER RETAINER

2шт.

14

13822V

BEARING

FRONT WHEEL INNER BEARING CUP

1шт.

15

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

FRONT WHEEL BEARING GREASE RETAINER, inner (S/N 123110 up)

2шт.

16

8274DBX

FRONT WHEEL HUB, complete

2шт.

17

60289D

WASHER

FRONT WHEEL BEARING GREASE RETAINER, outer (S/N 123110 up)

2шт.

18

13417D

BEARING, CUP,56.92mm OD x 16mm W

FRONT WHEEL OUTER BEARING CUP

2шт.

19

48547D

GASKET

FRONT WHEEL HUB CAP GASKET

2шт.

20

48541D

SHIELD

FRONT WHEEL DUST SHIELD

2шт.

21

43828D

WASHER,49.21mm ID x 70.64mm OD x 4.76mm Thk

FRONT WHEEL FELT WASHER

2шт.

22

48539D

FRONT WHEEL OIL SEAL (Optional with 358778R91 and 358817R91)

2шт.

22

358778R91

OIL SEAL

FRONT WHEEL OIL SEAL (Optional with 48539D and 358817R91)

2шт.

22

358817R91

OIL SEAL

FRONT WHEEL OIL SEAL (Optional with 48539D and 358778R91)

2шт.

23

10880K

BEARING

FRONT WHEEL INNER BEARING CONE

2шт.

24

48548D

WASHER

FRONT WHEEL FELT WASHER RETAINER

2шт.

25

13822V

BEARING

FRONT WHEEL INNER BEARING CUP

2шт.

26

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

FRONT WHEEL BEARING GREASE RETAINER, inner (S/N 123110 up)

2шт.

27

6694DCXA

FRONT WHEEL, complete (Steel)

2шт.

27

6694DCYA

FRONT WHEEL, complete with skid ring

2шт.

27

354134R91

FRONT WHEEL ATTACHMENT (Steel) (Consists of two 6694DCXA wheels)

1шт.

29

354087R92

FRONT WHEEL SKID RING ATTACHMENT (2" high) (Consists of two skid rings, 48565DA)

1шт.

29

48565DA

FRONT WHEEL SKID RING, 2" high (Standard)

2шт.

13293R1

BOLT

MACHINE BOLT, 1/2 x 1-1/2" N.C. square head

12шт.

114774

HEX NUT, 1/2" N.C.

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

29

53015DA

FRONT WHEEL SKID RING ATTACHMENT (2-1/2" high) (Consists of two skid rings, 53014DA or 67893DA)

1шт.

29

53014DA

FRONT WHEEL SKID RING, 2-1/2" high (Special) (Optional with 67893DA)

2шт.

29

67893DA

FRONT WHEEL SKID RING, 2-1/2" high (Special) (Optional with 53014DA)

2шт.

13293R1

BOLT

MACHINE BOLT, 1/2 x 1-1/2" N.C.

12шт.

114774

HEX NUT, 1/2" N.C.

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

30

60289D

WASHER

FRONT WHEEL BEARING GREASE RETAINER, outer (S/N 123110 up)

2шт.

31

13417D

BEARING, CUP,56.92mm OD x 16mm W

FRONT WHEEL OUTER BEARING CUP

2шт.

32

13321DA

TAPERED BEARING,23.81mm ID x 19.91mm W

FRONT WHEEL OUTER BEARING CONE

2шт.

33

353838R1

WASHER

FRONT WHEEL OUTER BEARING RETAINER WASHER (S/N 307710 up)

2шт.

34

6245D

NUT

FRONT WHEEL OUTER BEARING RETAINER NUT (Order nut, 427642 and washer, 353838R1) (S/N, Serial Range: 501-307709)

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

34

427642

SLOTTED NUT,7/8"-9, G5

SLOTTED HEX NUT, 7/8" N.C. (With washer, 353838R1) (Will work for 6245D) (S/N 501 to 307709)

2шт.

34

361138R1

NUT

SLOTTED HEX NUT, 7/8" N.F. (S/N 307710 up)

2шт.

35

48547D

GASKET

FRONT WHEEL HUB CAP GASKET

2шт.

36

48546DA

FRONT WHEEL HUB CAP

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

68451DB

FIELD CHANGE-OVER PACKAGE (Set of four pneumatic tire type front and rear wheels)

1шт.

351510R1

BOLT

FRONT WHEEL RIM CLAMP BOLT WITH NUT, 120371 (Will work for 13399R1) (S/N 254259 up)

6шт.

120371

NUT,1/2"-20, G5

6шт.
