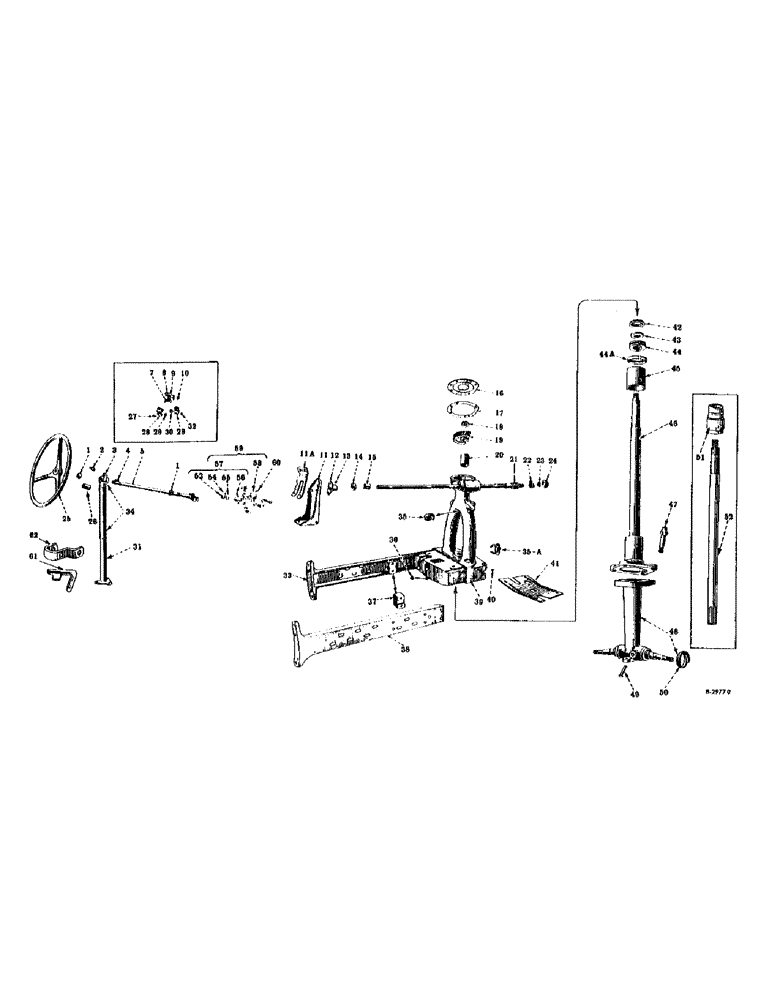

Запчасти Case IH FARMALL H (122) - CHASSIS, STEERING MECHANISM, UPPER AND LOWER BOLSTERS AND FRONT FRAME CHANNELS (12) - CHASSIS

1

51444DA

COLLAR

STEERING SHAFT REAR BEARING SPACER

2шт.

139042

BAR

HOLLOW SET SCREW, 5/16 x 5/16" N.F. (Cup point)

4шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STEERING SHAFT REAR BEARING LUBRICATOR (Optional with 109461) (Same as 14186DA) (S/N 15698 up)

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STEERING SHAFT REAR BEARING LUBRICATOR (Optional with 119512) (Same as Q3615) (S/N 15698 up)

1шт.

3

8561DX

STEERING SHAFT REAR BEARING WITH RIVET, 104091 (S/N 15698 up)

1шт.

3

8561DY

STEERING SHAFT REAR BEARING WITH RIVET, 104091 AND LUBRICATOR, Q3615 (Will work for 8098D) (S/N, Serial Range: 501-15697)

1шт.

3

352962R11

STEERING SHAFT REAR BEARING WITH RIVET, 104091 (S/N 275971 up)

1шт.

4

7235T

KEY

STEERING WHEEL KEY (Woodruff no. A - 1/4 x 7/8")

1шт.

5

50049DXA

STEERING SHAFT REAR (Order 63098DA) (S/N, Serial Range: 501-100034)

1шт.

5

63087D

STEERING SHAFT REAR - complete (S/N 100035 to)

1шт.

114499

HEX JAM NUT, 3/4" N.F.

1шт.

5

350357R91

STEERING SHAFT AND YOKE, rear, complete (S/N up)

1шт.

114499

HEX JAM NUT, 3/4" N.F.

1шт.

7

48606DA

STEERING UNIVERSAL JOINT PIN (S/N, Serial Range: 501-24414)

3шт.

8

52895DA

STEERING UNIVERSAL JOINT LUBRICATOR PIN (S/N, Serial Range: 501-24414)

1шт.

8

66584D

FITTING

STEERING UNIVERSAL JOINT LUBRICATOR (S/N 100035 to)

1шт.

9

6944DAXE

STEERING UNIVERSAL JOINT FORK - front (Order 63098DA) (S/N, Serial Range: 501-100034)

1шт.

9

9318DX

STEERING UNIVERSAL JOINT FORK - front, with pin and lubricator 66584D (S/N 100035 to)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCREW, 3/8 x 1-3/4" N.C. hex head

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

41116D

KEY

STEERING UNIVERSAL JOINT FORK - front - key (S/N 501 to)

1шт.

11

51128DA

STEERING SHAFT CENTER BEARING SUPPORT

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCREW 7/16 x 3/4" N.C. hex head

4шт.

114773

HEX NUT, 7/16" N.C.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

11a

67854DA

STEERING SHAFT CENTER BEARING SUPPORT STIFFENER (S/N 125291 up)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCREW, 7/16 x 3/4" N.C. hex head

1шт.

179858

SUPPORT

CAP SCREW, 7/16 x 1" N.C. hex head

2шт.

114773

HEX NUT, 7/16" N.C.

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

12

8097D

SUPPORT

STEERING SHAFT CENTER BEARING

1шт.

NLS

NO LONGER SERVICED

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STEERING SHAFT CENTER BEARING LUBRICATOR (Optional with 109461) (Same as 14186DA)

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STEERING SHAFT CENTER BEARING LUBRICATOR (Optional with 119512) (Same as Q3615)

1шт.

14

43800DA

SEAL

STEERING WORM OIL SEAL (Optional with 359042R91 and 359257R91)

1шт.

14

359042R91

OIL SEAL

STEERING WORM OIL SEAL (Optional with 43800Da and 359257R91)

1шт.

14

359257R91

OIL SEAL

STEERING WORM OIL SEAL (Optional with 43800DA and 359042R91)

1шт.

15

41096DBR

BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L

STEERING WORM BUSHING

1шт.

16

43798DB

STEERING WORM GEAR HOUSING COVER

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

43799D

STEERING WORM GEAR HOUSING COVER GASKET

1шт.

18

70121D

NUT

UPPER BOLSTER PIVOT SHAFT NUT (Will work for 218445)

1шт.

18

218445

NUT,Jam, 1"-8, G5

FOLLOWS REFERENCE NO. 46

1шт.

19

50038DA

STEERING WORM GEAR SECTOR (19 teeth) (Order 50038DB)

1шт.

19

50038DB

GEAR

STEERING WORM GEAR (32 teeth) (Will work for 50038DA)

1шт.

20

43805DR

BUSHING,31.74mm ID x 35.03mm OD

UPPER BOLSTER BUSHING - top

1шт.

21

50047DB

SHAFT

STEERING WORM WITH SHAFT

1шт.

69942D

SLOTTED HEX JAM NUT, 3/4" N.F. (Order 69442D)

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

22

ST225BT

BALL BEARING

STEERING WORM BALL BEARING (Will work for ST225Y)

1шт.

23

69942D

FOLLOWS REFERENCE NO. 21

1шт.

23

69442D

NUT

STEERING WORM NUT (Slotted hex jam nut, 3/4")

1шт.

24

6660DA

BEARING CAP

STEERING WORM BEARING RETAINER

1шт.

25

29118DC

WHEEL

STEERING WHEEL (18" diameter) (Optional with 60070D)

1шт.

25

60070D

STEERING WHEEL

STEERING WHEEL (18" diameter) (Optional with 29118DC)

1шт.

26

51131D

STEERING SHAFT REAR BEARING BUSHING (S/N, Serial Range: 501-15697)

1шт.

27

48608D

STEERING UNIVERSAL JOINT BOLT

4шт.

102644

SLOTTED NUT,5/16"-24, G5

SLOTTED HEX NUT, 5/16" N.F.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

NLS

NO LONGER SERVICED

COTTER PIN, 1/16 x 1/2"

4шт.

28

48607D

STEERING UNIVERSAL JOINT PLATE (S/N, Serial Range: 501-100034)

2шт.

28

63085D

STEERING UNIVERSAL JOINT PLATE (S/N 10035 to)

2шт.

29

52894D

STEERING UNIVERSAL JOINT WASHER

20шт.

30

48609DA

STEERING UNIVERSAL JOINT KEY (S/N, Serial Range: 501-100034)

1шт.

31

54506DCX

STEERING POST WITH BASE AND RIVET (Order 352964R91) (S/N, Serial Range: 15698-275970)

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

CAP SCREW, 7/16 x 1-3/8" N.C. hex head

2шт.

179929

BOLT,Hex, 5/18" - 11 x 1 3/4"

CAP SCREW, 5/8 x 1-3/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

104091

RIVET,But Hd, 1/4" x 1 3/4"

1/4 x 1-3/4" round head

1шт.

31

352963R91

STEERING POST WITH BASE (S/N 275971 up)

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

CAP SCREW, 7/16 x 1-3/8" N.C. hex head

2шт.

179929

BOLT,Hex, 5/18" - 11 x 1 3/4"

CAP SCREW, 5/8 x 1-3/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

32

102644

SLOTTED NUT,5/16"-24, G5

FOLLOWS REFERENCE NO. 27

1шт.

33

58245DBX

FRONT FRAME CHANNEL WITH BRACKET - L.H. (Will work for 50993DA) (S/N, Serial Range: 501-96812)

1шт.

33

63469DD

FRONT FRAME CHANNEL WITH BRACKET - L.H. (S/N 96813 up)

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

CAP SCREW, 1/2 x 1-3/8" N.C. hex head

4шт.

179931

BOLT,Hex, 5/18" - 11 x 2"

CAP SCREW, 5/8 x 2" N.C. hex head ("H" tractors)

4шт.

2 Required on "HV"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (External tooth) ("H" tractors) 5/8"

4шт.

2 Required on "HV"

1шт.

34

51129DXA

STEERING POST, complete (S/N, Serial Range: 501-15697)

1шт.

34

54517DB

STEERING POST, complete (Order 352964R91) (S/N, Serial Range: 15698-275970)

1шт.

34

352964R91

STEERING POST, 352963R11 and bearing, 352962R11 (Will work for 54506DCX and 54517DB) (S/N 275971 up)

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

CAP SCREW, 7/16 x 1-3/8" N.C. hex head

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.

179929

BOLT,Hex, 5/18" - 11 x 1 3/4"

CAP SCREW, 5/8 x 1-3/4" N.c. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

35

42183DA

SEAL

UPPER BOLSTER PIVOT SHAFT OIL SEAL

1шт.

SUBS TO 389445R91 SEAL SVP 12/19/97

1шт.

35

358766R91

OIL SEAL

UPPER BOLSTER PIVOT SHAFT OIL SEAL (Optional with 42183D and 358880R91)

1шт.

35

358880R91

UPPER BOLSTER PIVOT SHAFT OIL SEAL (Optional with 42183D and 358766R91)

1шт.

35a

57563DX

UPPER BOLSTER PLUG, spring and 2 rivets (S/N 106830 up)

2шт.

110638

RIVET

3/16 x 5/16" (Round head)

2шт.

36

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STARTING CRANK RATCHET LUBRICATOR (Optional with 119512) ("H" only) (Same as Q3615)

1шт.

36

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STARTING CRANK RATCHET LUBRICATOR (Optional with 109461) ("H" only) (Same as 14186DA)

1шт.

36

67957D

FITTING

STARTING CRANK RATCHET LUBRICATOR (For tractors equipped with short wheel base)

1шт.

37

9362D

ENGINE FRONT SUPPORT (S/N 96813 up)

2шт.

355117R1

BOLT, 1/2 x 4" N.C. hex head (Special)

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

37

51343DA

ENGINE FRONT SUPPORT - complete (S/N, Serial Range: 501-96812)

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4" N.C. hex

4шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

4шт.

114774

HEX NUT, 1/2" N.C.

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

38

58246DBX

FRONT FRAME CHANNEL WITH BRACKET - R.H. (Will work for 50994DA (S/N, Serial Range: 501-96812)

1шт.

38

63470DD

FRONT FRAME CHANNEL WITH BRACKET - R.H. (S/N 96813 up)

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

CAP SCREW, 1/2 x 1-3/8" N.C. hex head

4шт.

179929

BOLT,Hex, 5/18" - 11 x 1 3/4"

CAP SCREW, 5/8 x 1-3/4" N.C. hex head

1шт.

179931

BOLT,Hex, 5/18" - 11 x 2"

CAP SCREW, 5/8 x 2" N.C. hex head ("H" tractors)

3шт.

1 Required on "HV"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, ("H" tractors) 5/8"

4шт.

2 Required on "HV"

1шт.

39

6706DJX

UPPER BOLSTER, complete ("H" only) (S/N, Serial Range: 501-167993)

1шт.

39

69063DC

UPPER BOLSTER, complete ("H" only) (S/N 167994 up)

1шт.

39

65166DC

UPPER BOLSTER, complete ("HV" only)

1шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

UPPER BOLSTER PIVOT SHAFT LUBRICATOR (Optional with 119512) (Same as Q3615)

1шт.

40

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

UPPER BOLSTER PIVOT SHAFT LUBRICATOR (Optional with 109461) (Same as 14186DA)

1шт.

41

48689DD

FAN DRIVE PULLEY DUST SHIELD

1шт.

179814

SPACER

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

42

49657D

WASHER

UPPER BOLSTER FELT WASHER RETAINER ("H" only) (S/N, Serial Range: 501-167993)

1шт.

42

68963D

WASHER

UPPER BOLSTER FELT WASHER RETAINER ("H" only) (S/N 167994 up)

1шт.

42

65163D

UPPER BOLSTER FELT WASHER, complete ("HV" only)

1шт.

43

49656D

UPPER BOLSTER FELT WASHER ("H" only) (S/N, Serial Range: 501-167993)

1шт.

43

350000R1

WASHER

UPPER BOLSTER FELT WASHER ("H" only) (S/N 167994 up)

1шт.

44

49659D

THRUST BEARING

UPPER BOLSTER PIVOT SHAFT THRUST BEARING (Will work for 67911D) (S/N, Serial Range: 501-122950)

1шт.

44

354676R91

THRUST BEARING,41.4mm ID x 65.09mm OD x 19.05mm W

UPPER BOLSTER PIVOT SHAFT THRUST BEARING ("H" only) (S/N 122951 up)

1шт.

44a

67836D

SPACER,44.37mm ID x 65.1mm OD x 6.35mm L

UPPER BOLSTER PIVOT SHAFT THRUST BEARING SPACER ("H" only) (S/N 122961 up)

1шт.

45

49658DAR

BUSHING,65.53mm ID x 70.42mm OD x 79.38mm L

UPPER BOLSTER BUSHING - bottom ("H" only)

1шт.

46

50039DC

UPPER BOLSTER PIVOT SHAFT (Order 67837DB) ("H" only) (S/N, Serial Range: 501-122950)

1шт.

218445

NUT,Jam, 1"-8, G5

SLOTTED HEX JAM NUT, 1" N.F. (Order 70121D)

1шт.

181486

CAP SCREW, 5/8 x 2-1/2" N.F. hex head

3шт.

352535R1

HEX NUT, 5/8" N.F.

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

46

67835DB

UPPER BOLSTER PIVOT SHAFT (Order 69062D) ("H" only) (S/N, Serial Range: 122951-167993)

1шт.

46

69060D

SHAFT

UPPER BOLSTER PIVOT SHAFT ("H" only) (S/N 167994 up)

1шт.

218445

NUT,Jam, 1"-8, G5

SLOTTED HEX JAM NUT, 1" N.F. (Order 70121D)

1шт.

181486

CAP SCREW, 5/8 x 2-1/2" N.F., hex head

3шт.

352535R1

HEX NUT, 5/8" N.F.

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

46

67837DB

UPPER BOLSTER PIVOT SHAFT, complete (Will work for 50039DC) ("H" only) (S/N, Serial Range: 501-122950)

1шт.

46

69062D

RETAINER

UPPER BOLSTER PIVOT SHAFT, complete (Will work for 67835DB) ("H" only) (S/N, Serial Range: 122951-167993)

1шт.

47

48964DA

BOLT,Stop, 5/8" - 18 x 2 9/16"

STEERING STOP BOLT ("H" only)

1шт.

352535R1

HEX NUT, 5/8" N.F.

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

48

6688DDX

LOWER BOLSTER WITH AXLE, complete ("H" only) (Together with washer, 353838R1 and nut, 102652 will work for 6688DCXD) (S/N 307710 up)

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

49

14542R1

RIVET, 5/8 x 3-1/2" (Round head) (Will work for 43826D and 138072)

1шт.

49

43826D

FRONT AXLE PIN (Order 14542R1)

1шт.

50

48541D

SHIELD

FRONT WHEEL DUST SEAL ("H" only)

1шт.

51

9503D

UPPER BOLSTER PIVOT SHAFT BUSHING ("HV" only)

1шт.

52

65165D

UPPER BOLSTER PIVOT SHAFT ("HV" only)

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

53

M32995

RETAINER

STEERING UNIVERSAL JOINT BEARING (Order 350254R91 or 357439R91)

4шт.

54

M32991

STEERING UNIVERSAL JOINT BEARING SNAP RING (Order 350254R91 or 357439R91)

4шт.

55

M32994

STEERING UNIVERSAL JOINT BEARING WASHER (Cork) (Order 350254R91 or 357439R91)

4шт.

56

69236D

STEERING UNIVERSAL JOINT SPIDER (Order 350254R91 or 357439R91)

1шт.

57

350254R91

U-JOINT SPIDER

STEERING UNIVERSAL JOINT BEARING AND SPIDER, complete (Optional with 357439R91)

1шт.

57

357439R91

STEERING UNIVERSAL JOINT BEARING AND SPIDER, complete (Optional with 350254R91)

1шт.

58

350361R2

YOKE

STEERING UNIVERSAL JOINT YOKE

1шт.

181377

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

CAP SCREW, 3/8 x 1-3/4" N.F. hex head

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

59

350333R92

STEERING SHAFT, 350357R91 with yoke, bearing and spider

1шт.

60

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

STEERING SHAFT UNIVERSAL JOINT KEY (Woodruff no. 11, 3/16 x 7/8" MD-2330) (Same as 60071D)

1шт.

61

351922R11

LEVER

STARTING SWITCH ACTUATING LEVER

1шт.

103373

COTTER PIN,3/32" x 3/4"

3/32 x 1/2"

2шт.

62

351924R1

STARTING SWITCH ACTUATOR LEVER BRACKET

1шт.

63098DA

STEERING UNIVERSAL JOINT FIELD CHANGE PACKAGE (Will work for 6944DAXB and 50049DXA) (S/N, Serial Range: 501-100034)

1шт.

63485D

GREY IRON ENGINE FRONT SUPPORTS FIELD CHANGE PACKAGE (S/N, Serial Range: 501-96812)

1шт.

3066T

STEERING SHAFT REAR BEARING PIN (Order 104091) (S/N, Serial Range: 501-50728)

1шт.
