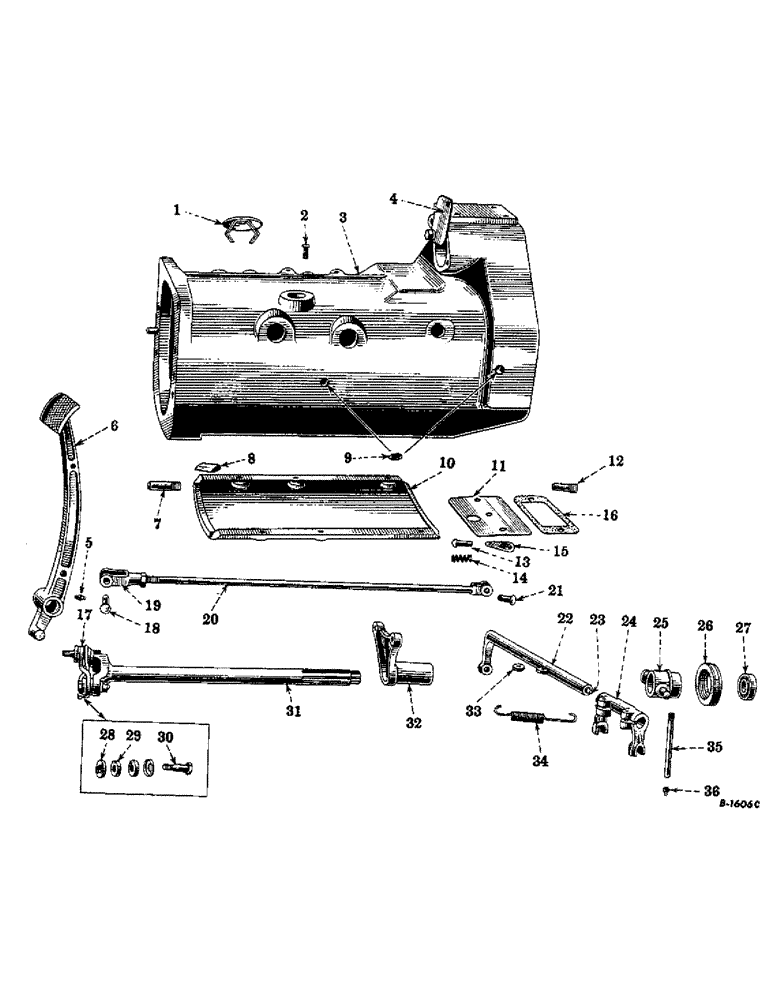

Запчасти Case IH FARMALL H (107) - CHASSIS, CLUTCH CONNECTIONS (12) - CHASSIS

1

57563DX

CLUTCH HOUSING PLUG WITH SPRING AND RIVET (S/N 38311 up)

5шт.

110638

RIVET

3/16 x 5/16" round head

5шт.

2

48556D

CLUTCH RELEASE FORK RETURN SPRING PIN

1шт.

3

8024DEY

CLUTCH HOUSING, complete (Will work for 8024DX, DAX, DBX, DBXA, DCY and DDY) (S/N, Serial Range: 501-52890)

1шт.

3

8024DEX

CLUTCH HOUSING, with dust seal plug, 64881D (Will work for 8024DCX and DDX) (S/N 52891 up)

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

CAP SCREW, 1/2 x 2" N.C. hex head

1шт.

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

CAP SCREW, 1/2 x 7" N.C. hex head

1шт.

179931

BOLT,Hex, 5/18" - 11 x 2"

CAP SCREW, 5/8 x 2" N.C. hex head

6шт.

179944

BELT,0.66" W

CAP SCREW, 3/4 x 1" N.C. hex head (Order 64881D) (S/N, Serial Range: 501-94814)

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

4

48554D

CRANKING MOTOR OPENING COVER (For tractors not equipped with starting and lighting) (S/N, Serial Range: 501-340953)

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

66584D

FITTING

CLUTCH PEDAL LUBRICATION FITTING, drive type, 3/16" (S/N 391358 up)

1шт.

6

358215R92

CLUTCH PEDAL, 358042R21 with fitting, 66584D and spacer, 355887R1 (Will work for 6699DC and 358412R91)

1шт.

6

358042R21

CLUTCH PEDAL WITH FITTING, 66584D (S/N 391358 up)

1шт.

7

28172D

CLUTCH HOUSING TO MAIN FRAME DOWEL

2шт.

8

57562D

CLUTCH HOUSING COVER, corner felt (S/N 38311 up)

4шт.

9

64881D

CLUTCH HOUSING DUST SEAL PLUG (Will work for 179944) (s/N 94815 up)

4шт.

10

8025D

CLUTCH HOUSING COVER

1шт.

NLS

NO LONGER SERVICED

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

11

53871DA

CLUTCH HOUSING HAND HOLE COVER (S/N, Serial Range: 501-52890)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

60180D

CLUTCH HOUSING HAND HOLE COVER (S/N 52891 up)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

45979D

STUD

ENGINE REAR SUPPORT DOWEL (Will work for 18585DA)

2шт.

13

57560D

CLUTCH HOUSING GREASE HOLE COVER PIN (S/N 38311 up)

1шт.

Q102

WASHER

STEEL WASHER, 13/64" I.D. x 1/2" O.D. x no. 18 ga.

1шт.

103361

PIN, SPLIT (COTTER)

COTTER PIN, 1/16 x 1/2"

1шт.

14

57561D

VALVE SPRING

CLUTCH HOUSING GREASE HOLE COVER SPRING (S/N 38311 up)

1шт.

15

57559D

CLUTCH HOUSING GREASE HOLE COVER (S/N 38311 up)

1шт.

16

60181D

CLUTCH HOUSING HAND HOLD COVER GASKET (S/N 52891 up)

1шт.

17

43769DA

RETAINER

CLUTCH JOINT RING

1шт.

18

4226S

PIN

CLUTCH OPERATING ROD ADJUSTABLE YOKE PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

19

6692D

CLUTCH OPERATING ROD ADJUSTABLE YOKE

1шт.

20

48552DX

CLUTCH OPERATING ROD WITH YOKE

1шт.

218442

HEX JAM NUT, 5/8" N.C.

1шт.

21

352131R1

PIN

CLUTCH OPERATING ROD YOKE PIN (Will work for no. 6640 and Q5137)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22

48582DX

CLUTCH RELEASE SHAFT WITH LEVER

1шт.

23

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

CLUTCH RELEASE SHAFT LUBRICATOR (Optional with 109461) (Same as 14186DA)

2шт.

23

109461

LUBE NIPPLE,1/8"-27 x .66 lg

CLUTCH RELEASE SHAFT LUBRICATOR (Optional with 119512) (Same as Q3615)

2шт.

24

6141DA

CLUTCH RELEASE FORK

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

CAP SCREW, 3/8 x 1-3/8" N.C. hex head

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

6691DA

TRANSMISSION SLEEVE

CLUTCH RELEASE SLEEVE

1шт.

26

18567D

THRUST BEARING,52.39mm ID x 83.95mm OD x 20.45mm W

CLUTCH RELEASE BALL BEARING (Optional with 55212D and 361292R91) (Will work for 55211D)

1шт.

26

361292R91

BALL BEARING,52.39mm ID x 84.15mm OD x 19.05mm W

CLUTCH RELEASE BALL BEARING (Optional with 18567D) (Will work for 55212D)

1шт.

26

55212D

BEARING

CLUTCH RELEASE BALL BEARING (Optional with 18567D and 361292R91) (Will work for 55211D)

1шт.

27

ST208B

BALL BEARING,25mm ID x 52mm OD x 15mm W

CLUTCH ILOT BALL BEARING (S/N 501 to 391357)

1шт.

27

ST544

BEARING, BALL,25mm ID x 52mm OD x 15mm W

CLUTCH PILOT BALL BEARING (S/N 391358 up)

1шт.

28

7579T

CUP WASHER

CLUTCH JOINT RUBBER WASHER RETAINER

8шт.

29

6161H

WASHER,14.68mm ID x 28.57mm OD x 6.75mm Thk

CLUTCH JOINT RUBBER WASHER

8шт.

30

15393DAX

SCREW

CLUTCH JOINT SCREW WITH NUT, 103027 and washer, 103322

4шт.

103027

HEX NUT, 7/16" N.F.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

31

48551DA

CLUTCH SHAFT

1шт.

32

6690D

CARRIER

CLUTCH RELEASE SLEEVE CARRIER (Optional with 9304D)

1шт.

32

9304D

CLUTCH RELEASE SLEEVE CARRIER (Optional with 6690D)

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

CAP SCREW, 7/16 x 1-3/8" N.C. hex head

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

33

41116D

KEY

CLUTCH RELEASE FORK KEY

2шт.

34

49444DA

VALVE SPRING

CLUTCH RELEASE FORK RETURN SPRING

1шт.

35

48581D

CLUTCH RELEASE BEARING GREASE PIPE

1шт.

36

18220DA

FITTING

CLUTCH RELEASE BEARING LUBRICATOR (Optional with Q3618)

1шт.

36

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

CLUTCH RELEASE BEARING LUBRICATOR (Optional with 18220DA)

1шт.

48580D

CLUTCH HOUSING STUD (S/N, Serial Range: 501-41090)

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

57548D

SEAL

CLUTCH HOUSING DUST SEAL FIELD CHANGE PACKAGE (Not for tractors with hydraulic lift) (S/N, Serial Range: 501-38310)

1шт.

57753D

CLUTCH HOUSING DUST SEAL FIELD CHANGE PACKAGE (For tractors with hydraulic lift only) (S/N, Serial Range: 501-38310)

1шт.

355887R1

CLUTCH PEDAL SPACER (Part of 358215R92) (S/N 391358 up)

1шт.
