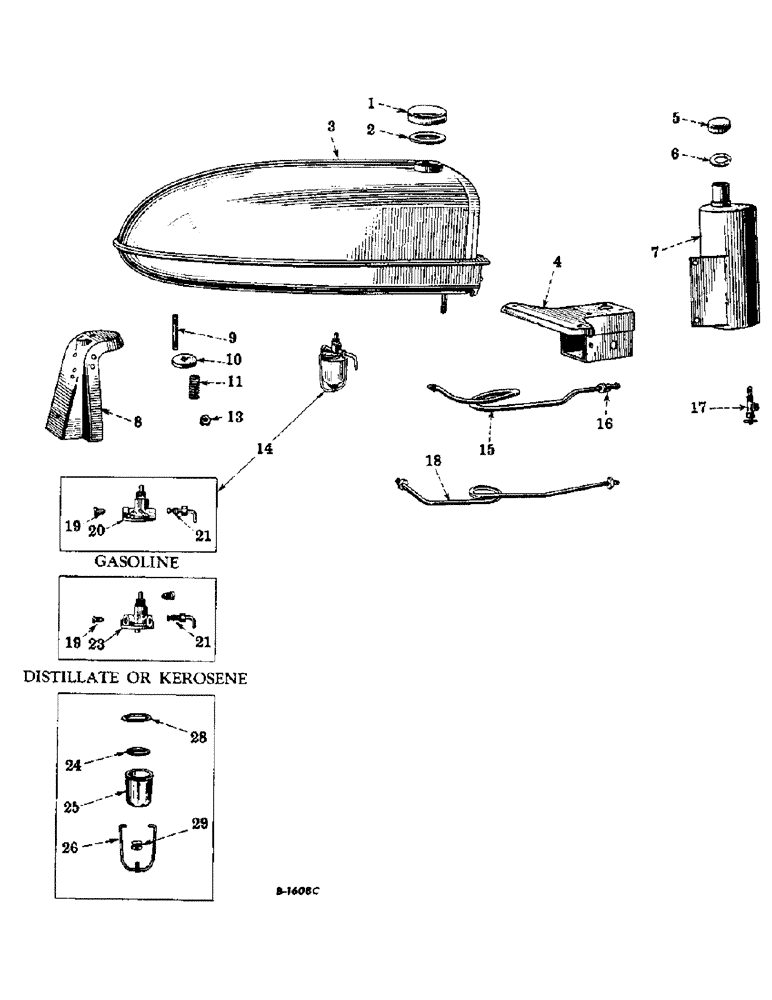

Запчасти Case IH FARMALL H (100) - CHASSIS, FUEL TANK, GASOLINE TANK, SUPPORTS, PIPING AND FUEL STRAINER (12) - CHASSIS

1

23995DC

FILLER CAP

FUEL TANK FILLER CAP WITH GASKET, 23977DA, replaces 23995DB

1шт.

2

23977DA

GASKET

FUEL TANK FILLER CAP GASKET

1шт.

3

49639DEX

FUEL TANK WITH FILLER CAP, 23995DB (S/N 15744 up)

1шт.

3

49639DCYA

FUEL TANK REPLACEMENT PACKAGE, complete (Will work for 49639DX) (S/N, Serial Range: 501-15743)

1шт.

12331R1

TINNED RIVETS, 3/16 x 5/8" (Countersunk head)

18шт.

4

51117DA

FUEL TANK SUPPORT, front

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

CAP SCREW, 7/16 x 3/4" N.c. hex head

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

5

40756D

FILLER CAP

GASOLINE TANK FILLER CAP (Distillate or kerosene)

1шт.

6

40752D

GASKET

GASOLINE TANK FILLER CAP GASKET (Distillate or kerosene)

1шт.

7

48633DX

GASOLINE TANK, with filler cap, 40756D, complete (Distillate or kerosene) (S/N, Serial Range: 501-50865)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

495-21044

WASHER,3/8"

(13/32" I.D. x 1" O.D. x 16 ga.) 3/8"

2шт.

7

58364DBX

GASOLINE TANK WITH FILLER CAP, 40756D (Distillate or kerosene) (S/N 50866 up)

1шт.

8

51125DAX

FUEL TANK SUPPORT, rear (S/N, Serial Range: 501-43874)

1шт.

8

56680DA

FUEL TANK SUPPORT, rear (S/N 43875 to 70409) (Also S/N, Serial Range: 74403-76850)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

8

60836DAX

FUEL TANK SUPPORT, rear with bottom (Will work for 63418DX) (S/N 70410 to 74402, also S/N 76851 to)

1шт.

8

354256R21

FUEL TANK SUPPORT, rear (S/N 340954 up)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

62583D

FUEL TANK SUPPORT REAR (For tractors equipped with Magneto grounding switch attachment 62586D) (S/N 74403 to 340953 and S/N, Serial Range: 501-43874)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

51122DA

FUEL TANK STUD, rear

1шт.

102646

PULLEY

HEX SLOTTED NUT, 7/16" N.F.

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

9

51122DA

FUEL TANK STUD, front

2шт.

102646

PULLEY

HEX SLOTTED NUT, 7/16" N.F.

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

10

51121D

WASHER

FUEL TANK PAD

3шт.

11

51124D

FUEL TANK HOLD DOWN SPRING

3шт.

13

102646

PULLEY

FOLLOWS REFERENCE NO. 9

1шт.

15

52644DX

FUEL PIPE - strainer to carburetor with 2 nuts, 29899D (Distillate or kerosene) (S/N, Serial Range: 501-50865)

1шт.

15

56451DX

FUEL PIPE - strainer to carburetor with 2 nuts, 29899D (Gasoline)

1шт.

15

58366DX

FUEL PIPE - strainer to carburetor with 2 nuts, 29899D (Distillate or kerosene) (S/N 50866 up)

1шт.

16

222-503

TUBE NUT,1/2"-20

FUEL PIPE COUPLING NUT (Carburetor end)

1шт.

17

49654DX

FUEL TANK NEEDLE VALVE WITH NUT 29899D (Distillate or kerosene) (S/N, Serial Range: 501-15743)

1шт.

17

55474DX

VALVE

GASOLINE OR FUEL TANK NEEDLE VALVE 55474D WITH NUT, 29899D (Distillate or kerosene) (S/N 15744 up)

1шт.

17

55474D

GASOLINE OR FUEL TANK NEEDLE VALVE (Distillate or kerosene) (S/N 15744 up)

1шт.

18

58367DAX

FUEL PIPE - gasoline tank to strainer with 2 nuts, 29899D (Distillate or kerosene) (S/N 50866 up)

1шт.

222-503

TUBE NUT,1/2"-20

FUEL TANK NEEDLE VALVE COUPLING NUT (Distillate or kerosene)

1шт.

52643DX

FUEL PIPE - fuel tank to strainer with 2 nuts, 29899D (Distillate or kerosene) (S/N, Serial Range: 501-15743)

1шт.

55475DX

FUEL PIPE - fuel tank to strainer with 2 nuts, 29899D (Distillate or kerosene) (S/N, Serial Range: 15744-50865)

1шт.

58368D

GASOLINE TANK, fuel tank, pipes and strainer field change package (To overcome vapor lock when tractor is equipped with corn picker) (Distillate or kerosene) (S/N, Serial Range: 501-15743)

1шт.

58369D

GASOLINE TANK, pipes and strainer field change package (To overcome vapor lock when tractor is equipped with corn picker) (Distillate or kerosene) (s/N, Serial Range: 15744-50865)

1шт.

14

49653DC

FUEL STRAINER WITH 2 NUTS, 29899D (S/N, Serial Range: 501-50865)

1шт.

14

358245R91

STRAINER ASSY.

FUEL STRAINER WITH NUT, 29899D (Will work for 51066DCX) (Gasoline)

1шт.

14

58361DB

STRAINER ASSY.

FUEL STRAINER WITH 2 NUTS, 29899D (Distillate or kerosene) (S/N 50866 up)

1шт.

14

58372DX

FUEL STRAINER WITH 2 NUTS, 29899D (Metal bowl type) (Distillate or kerosene) (Field change only) (S/N, Serial Range: 501-50865)

1шт.

19

222-503

TUBE NUT,1/2"-20

COUPLING NUT (Distillate or kerosene)

2шт.

19

222-503

TUBE NUT,1/2"-20

COUPLING NUTS (Gasoline)

1шт.

20

54486D

STRAINER BODY (Gasoline) (S/N 501 to)

1шт.

20

259402R91

STRAINER BODY (Gasoline)

1шт.

21

52855D

VALVE

STEM, assembly (S/N 501 to)

1шт.

21

259403R91

COCK

STEM, assembly

1шт.

23

55210D

STRAINER BODY (Distillate or kerosene) (S/N, Serial Range: 501-50865)

1шт.

23

58838D

BODY

STRAINER BODY (Distillate or kerosene) (Optional with 64968D) (S/N 50866 to)

1шт.

23

35144R91

STRAINER BODY (Distillate or kerosene)

1шт.

24

13194D

STRAINER ASSY.

STRAINER SCREEN

1шт.

25

58839D

BOWL

STRAINER BOWL (Metal) (Field change) (S/N, Serial Range: 501-50865)

1шт.

25

357957R1

BOWL

STRAINER BOWL (Heat resisting glass)

1шт.

26

17564D

HOLDER

BAIL, assembly

1шт.

28

355888R2

GASKET

STRAINER GASKET (Will work for 13193D)

1шт.

29

17565DA

CUP

NUT

1шт.

224839C92

CAP

new style "thicker" triple baffle gas cap

1шт.
