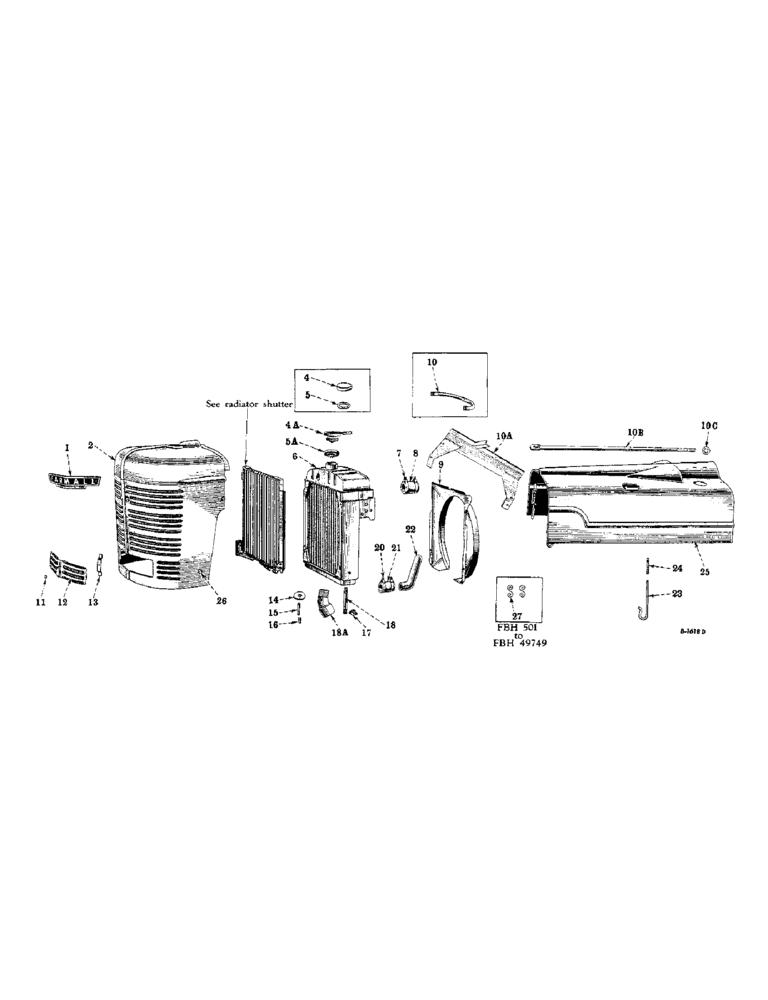

Запчасти Case IH FARMALL H (093) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD (12) - CHASSIS

1

49404D

DECAL

NAME PLATE (Farmall)

1шт.

.

141888

SPACER

SCREW, no. 7 x 1/2" long flat head (Parkerized)

2шт.

1

61105D

NAME PLATE (International)

1шт.

.

141888

SPACER

SCREW, no. 7 x 1/2" long flat head (Parkerized)

2шт.

2

50184DC

RADIATOR GRILLE (S/N, Serial Range: 501-49749)

1шт.

2

59515DD

RADIATOR GRILLE (S/N 49750 up)

1шт.

4

43983D

CAP

RADIATOR CAP WITH GASKET, 43984D (S/N, Serial Range: 501-115029)

1шт.

4

43983DGV

RADIATOR CAP

Value, Radiator Cap

1шт.

4a

67448DD

CYLINDER END CAP

RADIATOR FILLER CAP (Optional with 356710R91) (S/N 115030 up)

1шт.

4a

356710R91

RADIATOR CAP

RADIATOR FILLER CAP (Optional with 67448DD) (S/N 115030 up)

1шт.

5

43984D

GASKET

RADIATOR CAP GASKET (S/N, Serial Range: 501-115029)

1шт.

5

67088D

RADIATOR FILLER CAP GASKET (Used on cap, 67448DD) (S/N, Serial Range: 115030-170293)

1шт.

5a

352639R91

GASKET

RADIATOR FILLER CAP GASKET (Used on cap, 67448DD) (S/N 170294 to)

1шт.

6

352628R92

RADIATOR, complete with cap, 67448DD and two studs, 48225DB

1шт.

7

357870R91

CLAMP

RADIATOR INLET HOSE CLAMP (Will work for 91406HA)

2шт.

8

351703R1

HOSE

RADIATOR INLET HOSE, 1-3/4" I.d. x 3-1/4" long, 3 ply

1шт.

9

50208DBY

FAN HOUSING AND EXTENSION (Will work for 50208DAX) (S/N, Serial Range: 501-261551)

2шт.

9

50208DBX

FAN HOUSING AND EXTENSION (S/N 261552 up)

1шт.

.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

CAP SCREW, 5/16 x 1/2" N.c. hex head (S/N, Serial Range: 125251-261551)

2шт.

.

13539R1

BOLT,Sq Hd, 1/4" - 20 x 4 3/4"

MACHINE BOLT, 1/4 x 4-3/4" N.C.

2шт.

.

(S/N, Serial Range: 501-125250)

4шт.

.

13000R1

HEX NUT, 1/4" N.C.

2шт.

.

(S/N, Serial Range: 501-125250)

4шт.

.

9635082

NUT,5/16" - 18, Gr 5

(S/N 125251 to 261551) 5/16"-18, G5

2шт.

.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

.

(S/N, Serial Range: 501-125250)

4шт.

.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (S/N 125251 to 261551) 5/16"

2шт.

10

50206DA

RADIATOR BRACE (S/N, Serial Range: 501-125250)

1шт.

.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8" N.C. hex hd

1шт.

.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

.

9635082

NUT,5/16" - 18, Gr 5

2шт.

.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10a

67849D

RADIATOR BRACE TIE PLATE (S/N 125251 UP)

1шт.

.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

.

13000R1

HEX NUT, 1/4" N.C.

4шт.

.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10b

67853D

RADIATOR TIE ROD (S/N 125251 up)

1шт.

.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

.

280136

NUT,3/8"-16, G8

1шт.

.

103027

HEX NUT, 7/16" N.F.

2шт.

.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

10c

19588D

WASHER

RADIATOR TIE ROD LOCKWASHER (Shakeproof internal 1222)

1шт.

11

114614

WASHER

RADIATOR GRILLE INSERT LOCKWASHER, no. 10, external teeth, countersunk (Same as 24791D)

1шт.

12

48963DXA

RADIATOR GRILLE INSERT, screen and four hooks

1шт.

.

110534

SCREW

SLOTTED SCREW, no. 10-24 x 7/8" (Flat head)

1шт.

13

41273D

RADIATOR GRILLE INSERT LOCK PLATE

1шт.

14

18464D

RADIATOR PAD

2шт.

15

48825DB

STUD

RADIATOR MOUNTING STUD

2шт.

.

125357

HEX NUT, 7/16" N.F. (Castellated)

2шт.

.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

.

Q1515

WASHER

1/2" I.D. x 7/8" O.D. x no. 14 ga.

2шт.

16

48826D

SPRING

RADIATOR HOLD DOWN SPRING (S/N, Serial Range: 501-122291)

2шт.

16

67205D

SPRING

RADIATOR HOLD DOWN SPRING (S/N 122292 UP)

2шт.

17

13047DA

PLUG

RADIATOR DRAIN PIPE CAP

1шт.

18

219326

LUBE NIPPLE,Nipple, 3/8" NPT x 5"

RADIATOR DRAIN PIPE, 3/8 x 5" long

1шт.

18

12579R1

NIPPLE, LUBE

RADIATOR DRAIN PIPE, 3/8 x 6-1/2" long (See note A)

1шт.

18a

120702

ELBOW,45 Degree, 3/8" NPT Street

RADIATOR DRAIN PIPE CONNECTION (3/8" - 45 degree street elbow) (See note A)

1шт.

20

357870R91

CLAMP

RADIATOR OUTLET HOSE CLAMP (Will work for 91406HA)

4шт.

21

48827D

RADIATOR OUTLET HOSE, 1-1/2" I.D. x 2-1/2" long, 3 ply

2шт.

22

48828D

TUBE

RADIATOR OUTLET PIPE (Optional with 353852R1)

1шт.

22

353852R1

HOSE

RADIATOR OUTLET PIPE (Optional with 48828D)

1шт.

23

50997D

HOOK

HOOD CLAMP HOOK

4шт.

.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

4шт.

24

48707DA

SPRING

HOOD CLAMP HOOK SPRING

4шт.

25

49632DAX

HOOD, complete (Distillate or kerosene)

1шт.

25

56452DAX

HOOD, complete (gasoline)

1шт.

26

56668D

SCREW

RADIATOR GRILLE FASTENING SCREW (S/N 49750 up)

4шт.

.

61106D

FIELD CHANGE PACKAGE (Consisting of one "International" name plate, 61105D and two "International" decalcomanias, CL-786) (Used when industrial equipment is applied to Farmall "H" tractors)

1шт.

27

50958D

SPRING

RADIATOR GRILLE FASTENER SPRING (S/N, Serial Range: 501-49749)

4шт.

.

191715

ADAPTER

RIVET, 1/8" dia. x 9/32" head x 7/32" long (Tubular)

8шт.

.

51506D

RADIATOR OVERFLOW PIPE TUBE (S/N, Serial Range: 501-115029)

1шт.

.

67866D

RADIATOR MOUNTING IMPROVEMENT PACKAGE (Less radiator) (S/N, Serial Range: 501-125250)

1шт.

.

67867DA

RADIATOR MOUNTING IMPROVEMENT PACKAGE (With radiator) (See note B) (S/N, Serial Range: 501-125250)

1шт.

.

656830R92

EXHAUST PIPE OPENING COVER (Used with exhaust pipe attachment, 355205R92 and 355206R92)

1шт.
