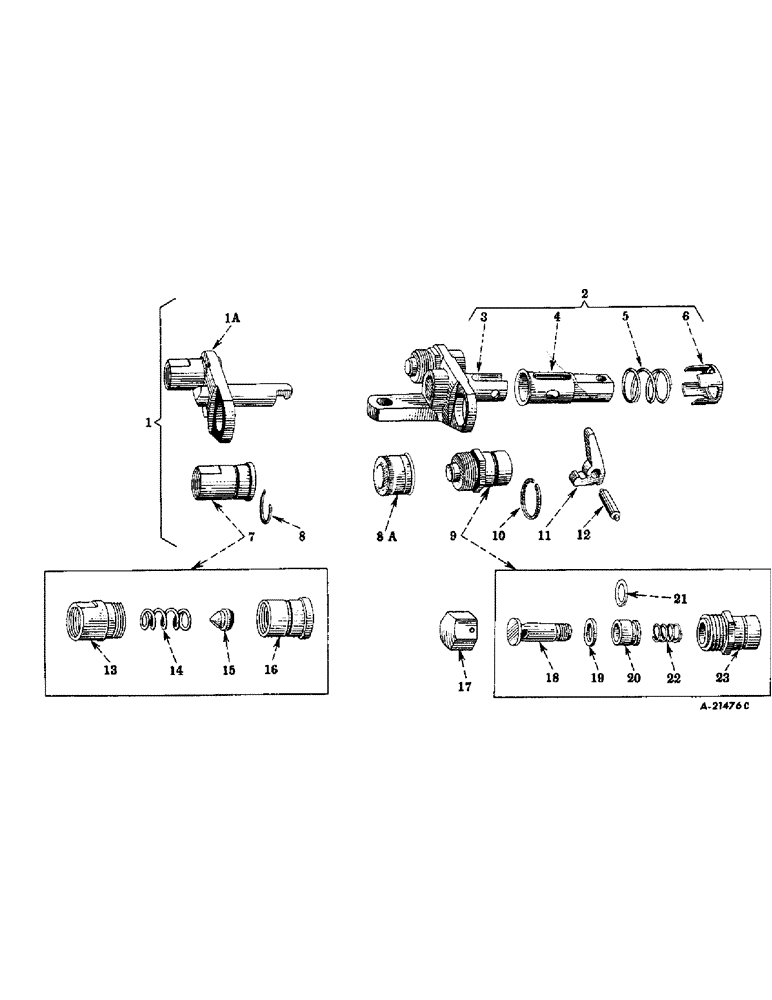

Запчасти Case IH FARMALL H (206) - HYDRAULIC SYSTEM, BREAK-AWAY COUPLING, SPECIAL (07) - HYDRAULIC SYSTEM

353086R91

COUPLING

BREAK-AWAY COUPLING, complete

1шт.

1

353216R91

COUPLING

BREAK-AWAY COUPLING REAR SECTION, complete

1шт.

1a

353220R1

BREAK-AWAY FRAME REAR (Less reference nos. 7 and 8) (Optional with 357137R91)

1шт.

1a

357137R91

BREAK-AWAY S-2 FRAME, rear (Less reference nos. 7 and 8) (Optional with 353220R1)

1шт.

2

353215R91

BREAK-AWAY COUPLING FRONT SECTION, complete

1шт.

2

353219R91

BREAK-AWAY FRAME, assembly, front (Less reference nos. 9 and 10)

1шт.

3

353221R1

BREAK-AWAY FRAME, front (Less reference no. 9)

1шт.

4

353222R1

BREAK-AWAY FRAME DRAWBAR (Optional with 357138R91)

1шт.

4

357138R91

BREAK-AWAY FRAME DRAWBAR (Optional with 353222R1)

1шт.

5

353224R1

BREAK-AWAY FRAME LATCH SPRING

1шт.

6

353223RA

BREAK-AWAY FRAME LATCH SPRING COVER

1шт.

7

353218R91

COUPLING

BREAK-AWAY COUPLING HALF, rear

2шт.

8

353228R1

BREAK-AWAY COUPLING SNAP RING, rear

2шт.

8a

355190R3

BREAK-AWAY COUPLING HALF, front, dust cap (Not part of attachment)

2шт.

9

353217R91

BREAK-AWAY COUPLING HALF, front

2шт.

10

353227R1

BREAK-AWAY COUPLING SNAP RING, front

2шт.

11

353225R1

BREAK-AWAY FRAME LATCH

1шт.

12

353226R1

BREAK-AWAY FRAME LATCH PIN

1шт.

13

357129R1

BREAK-AWAY COUPLING ADAPTER

2шт.

14

357128R1

SPRING

BREAK-AWAY COUPLING POPPET VALVE SPRING

2шт.

15

357127R1

BREAK-AWAY COUPLING POPPET VALVE

2шт.

16

357130R1

BREAK-AWAY COUPLING HALF, rear body

2шт.

17

357136R1

BREAK-AWAY COUPLING TUBULAR VALVE EXTRACTOR

1шт.

18

357132R1

VALVE

BREAK-AWAY COUPLING TUBULAR VALVE

2шт.

19

357134R91

BREAK-AWAY COUPLING WASHER SEAL

2шт.

20

357133R1

BREAK-AWAY COUPLING SLEEVE INSERT

2шт.

21

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

BREAK-AWAY COUPLING TUBULAR VALVE SEAL RING

2шт.

22

357135R1

SPRING

BREAK-AWAY COUPLING TUBULAR VALVE SPRING

2шт.

23

357131R1

BREAK-AWAY COUPLING HALF, front body

2шт.

357963R92

BREAK-AWAY COUPLING HALF, front, 353217R91 and break-away coupling half, rear 357964R92

4шт.

357964R92

COUPLING

BREAK-AWAY COUPLING HALF, rear, 353218R91 with nut, 357965R2 and ring, 353228R1

4шт.

357965R2

NUT

BREAK-AWAY COUPLING HALF, rear union nut

4шт.

141504

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE, 1/2 x 1-1/2"

2шт.
