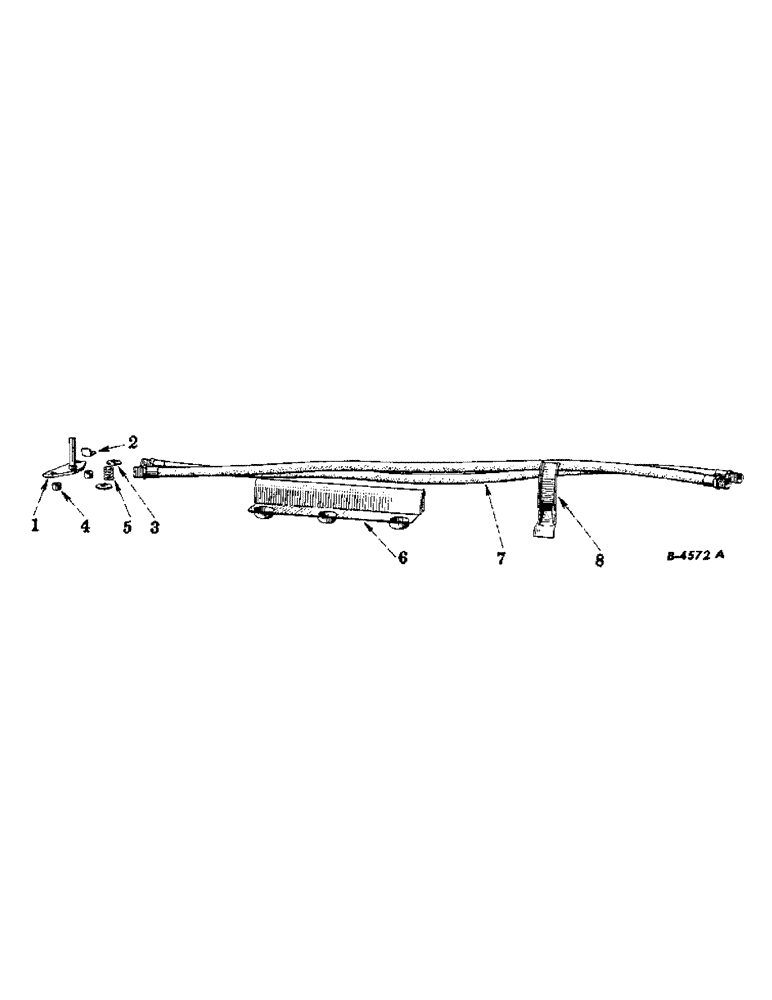

Запчасти Case IH FARMALL H (205) - HYDRAULIC SYSTEM, REMOTE CONTROL ATTACH., SPECIAL, BREAK-AWAY COUPLING BRACKET, HOSES & HOSE GUIDES (07) - HYDRAULIC SYSTEM

1

353208R91

BREAK-AWAY COUPLING BRACKET

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

19849H

WASHER, 33/64" I.D. x 1-3/8" O.D. x no. 11 ga.

3шт.

2

353211R1

BREAK-AWAY COUPLING STOP

1шт.

3

19849H

FOLLOWS REFERENCE NO. 1

1шт.

4

353212R1

BREAK-AWAY COUPLING BRACKET SPACER

2шт.

5

353213R2

SPRING

BREAK-AWAY COUPLING BRACKET SPRING

1шт.

6

353113R1

CONTROL VALVE HOSE SHIELD

1шт.

7

354039R91

VALVE TO COUPLING HOSE, 3/8" I.D. x 47" long (Optional with 361079R91)

2шт.

7

361079R91

VALVE TO COUPLING HOSE, 3/8" I.D. x 47" long (Optional with 354039R91)

2шт.

8

352337R1

CONTROL VALVE HOSE BRACKET

1шт.
