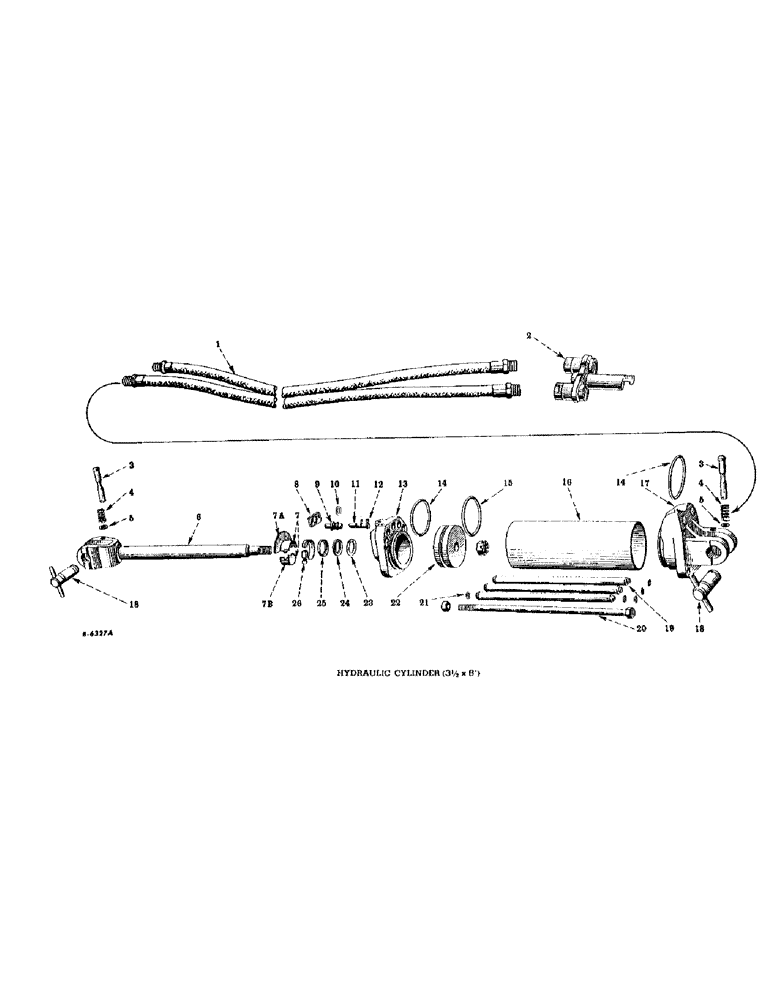

Запчасти Case IH FARMALL H (202) - HYDRAULIC SYSTEM, REMOTE CONTROL CYLINDER PACKAGE, SPECIAL, HYDRAULIC CYLINDER, 3-1/2 X 8 INCHES (07) - HYDRAULIC SYSTEM

357482R92

REMOTE CONTROL CYLINDER PACKAGE (Special)

1шт.

354037R95

HYDRAULIC CYLINDER, complete (3-1/2 x 8") (Includes reference nos. 3 thru 26)

1шт.

1

354038R91

CYLINDER HOSE (100") (Optional with 361078R91)

2шт.

1

361078R91

CYLINDER HOSE (100") (Optional with 354038R91)

2шт.

2

353216R91

COUPLING

BREAK-AWAY COUPLING, rear section, complete (See break-away coupling for service parts)

1шт.

3

352369R2

PIN

LOCK PIN

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

4

352370R1

SPRING

PIVOT PIN LOCK PIN SPRING

2шт.

5

354837R1

WASHER

LOCK PIN WASHER

2шт.

6

354045R31

ROD

PISTON ROD

1шт.

102651

SLOTTED NUT

SLOTTED HEX NUT, 3/4" N.F.

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

7

360380R91

STROKE LIMIT COLLAR, w/collar, 360372R1, and collar, 360373R1 (Will work for 354055R2)

1шт.

7a

360373R1

STROKE LIMIT COLLAR, flanged half

1шт.

7b

360372R1

COLLAR

STROKE LIMIT COLLAR, plain half

1шт.

8

354044R1

PLATE

RETAINER PLATE

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

9

354043R2

RETAINER

STOP VALVE RETAINER

1шт.

10

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

STOP VALVE RETAINER SEAL RING

1шт.

11

354042R2

VALVE

LIMIT STOP VALVE

1шт.

12

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

STOP VALVE SEAL RING

2шт.

13

354041R3

CYLINDER HEAD, front

1шт.

50410DA

PLUG

PIPE PLUG, 1/8" Holo Krome

3шт.

14

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

CYLINDER SEAL RING

2шт.

15

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

PISTON SEAL RING

1шт.

16

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

CYLINDER TUBE

1шт.

17

354053R2

HEAD

CYLINDER HEAD, rear

1шт.

50410DA

PLUG

PIPE PLUG, 1/8" Holo Krome

1шт.

18

352231R11

PIN

CYLINDER PIVOT PIN

2шт.

19

354834R11

SLEEVE

CYLINDER RETURN TUBE

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

20

354054R2

CYLINDER TIE BOLTS

4шт.

25-118

NUT,1/2"-20, G5

HEX NUT, 1/2" N.F.

4шт.

21

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

CYLINDER RETURN TUBE SEAL RING

6шт.

22

354050R3

PISTON HEAD

1шт.

23

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

CYLINDER GLAND RING

1шт.

24

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

PISTON ROD DUST SEAL

1шт.

25

354049R1

RETAINER

PISTON ROD DUST SEAL RETAINER

1шт.

26

361085R91

CLAMP

PISTON ROD STOP COLLAR CLAMP (Optional with 361087R91) (Will work for 354056R91 and 360382R91)

1шт.

26

361087R91

PISTON ROD STOP COLLAR CLAMP (Optional with 361085R91) (Will work for 354056R91 and 360382R91)

1шт.

357959R91

HYDRAULIC HOSE EXTENSION ATTACHMENT (5 ft.) (Consists of four couplings, 357963R91, two hoses, 357961R91 and two nipples, 144504)

1шт.

357960R91

HYDRAULIC HOSE EXTENSION ATTACHMENT (8 ft.) (Consists of four couplings, 357963R91, two hoses, 357962R91, and two nipples, 141504)

1шт.

357961R91

HOSE

CYLINDER HOSE (5 ft.) (Optional with 359629R91)

2шт.

359629R91

HOSE

CYLINDER HOSE (5 ft.) (Optional with 357961R91)

2шт.

357962R91

HOSE

CYLINDER HOSE (8 ft.) (Optional with 359630R91)

2шт.

359630R91

HOSE

CYLINDER HOSE (8 ft.) (Optional with 357962R91)

2шт.
