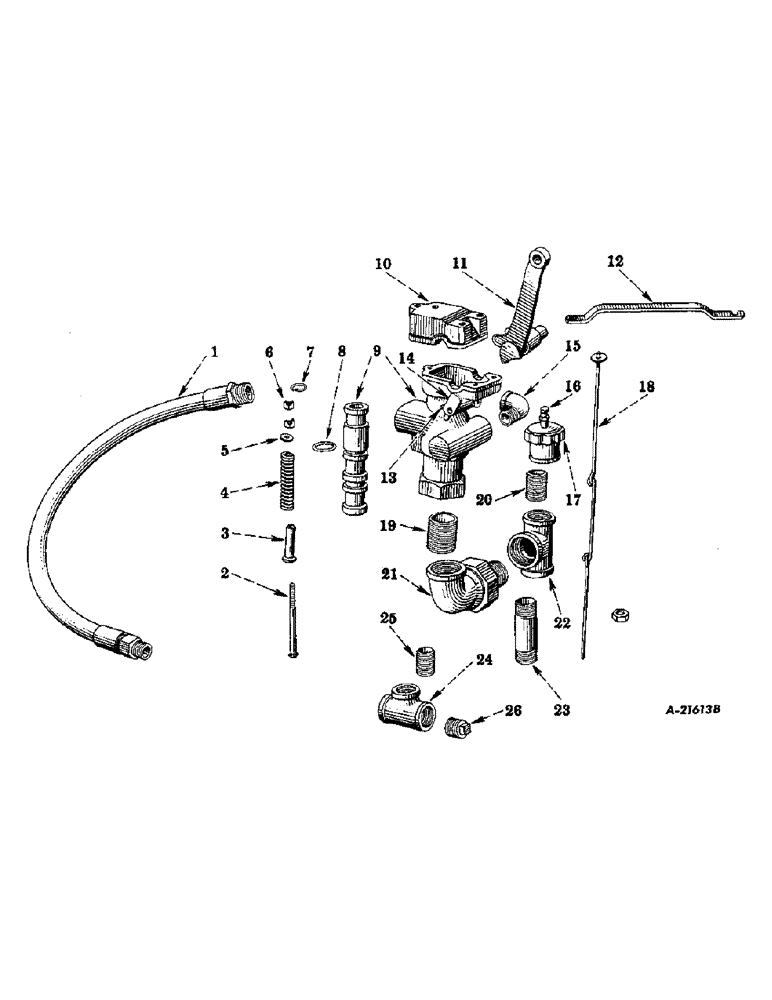

Запчасти Case IH FARMALL H (200) - HYDRAULIC SYSTEM, REMOTE CONTROL ATTACHMENT, SPECIAL, AUXILIARY CONTROL VALVE AND CONNECTIONS (07) - HYDRAULIC SYSTEM

35097R94

AUXILIARY CONTROL VALVE, complete

1шт.

1

353110R91

HOSE

LIFT-ALL TO VALVE HOSE, 1/2" I.D. x 25" long (Optional with 359345R91)

1шт.

1

359345R91

HOSE

LIFT-ALL TO VALVE HOSE, 1/2" I.D. x 25 " long (Optional with 353110R91)

1шт.

2

3522000R21

AUXILIARY CONTROL VALVE CENTERING SPRING ROD, w/pin

1шт.

220064

NUT

HEX NUT, 1/4" N.C.

1шт.

3

352198R1

AUXILIARY CONTROL VALVE CENTERING SPRING SLEEVE

1шт.

4

352199R1

SPRING

AUXILIARY CONTROL VALVE CENTERING SPRING

1шт.

5

352201R2

AUXILIARY CONTROL VALVE CENTERING SPRING WASHER

1шт.

6

352203R1

AUXILIARY CONTROL VALVE CENTERING SPRING SPACER

2шт.

7

352202R1

AUXILIARY CONTROL VALVE CENTERING SPRING LOCK

1шт.

8

352024R2

O-RING,0.551" ID x 0.07" Width

AUXILIARY CONTROL VALVE SEAL

1шт.

9

352196R31

AUXILIARY CONTROL VALVE BODY WITH VALVE (Order 353097R94)

1шт.

103874

VALVE SPRING

PIPE PLUG, 1/2" countersunk head (Optional with 116566 and 444703) (Used with 352196R31)

1шт.

116566

PLUG

PIPE PLUG, 1/2" countersunk square head (Optional with 103874 and 444703) (Used with 352196R31)

1шт.

444703

PLUG,Hex Soc, 1/2"-14

PIPE PLUG, 1/2" countersunk hex head (Optional with 103874 and 116566) (Used with 352196R31)

1шт.

10

352208R3

AUXILIARY CONTROL VALVE BODY COVER (Order 353097R94)

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

353098R92

LEVER, shaft and yoke

1шт.

142359

GROOVED PIN

CONTROL VALVE LEVER YOKE PIN (3/16 x 1" groove pin)

1шт.

12

353106R1

CONTROL VALVE SUPPORT BRACKET

1шт.

13

17183R1

LOCK PIN,Sl Spring, 5/32" x 5/8"

PIN, , Hand lever latch stop 5/32" x 5/8", Slotted

1шт.

14

352210R11

HAND LEVER LATCH

1шт.

15

108686

ELBOW,90 Degree, 1/2" NPT Street

STREET ELBOW, 1/2" (90 degrees)

1шт.

16

39677DA

VALVE

DIESEL PUMP BLEEDER VALVE

1шт.

17

353124R11

BREATHER CAP

1шт.

18

353120R91

OIL STICK

1шт.

19

127874

PIPE,Nipple, 1" NPT x 1 1/2"

CLOSE PIPE NIPPLE, 1"

1шт.

20

144613

LINE

CLOSE PIPE NIPPLE, 3/4"

1шт.

21

356757R91

MALE UNION, 90 degrees

1шт.

22

218244

PIPE TEE, 3/4" run, 1" side outlet

1шт.

23

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE, 3/4 x 3" long

1шт.

24

138105

TEE,1/2" NPT, Fem

PIPE TEE, 1/2"

1шт.

25

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

CLOSE PIPE NIPPLE, 1/2"

1шт.

26

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.
