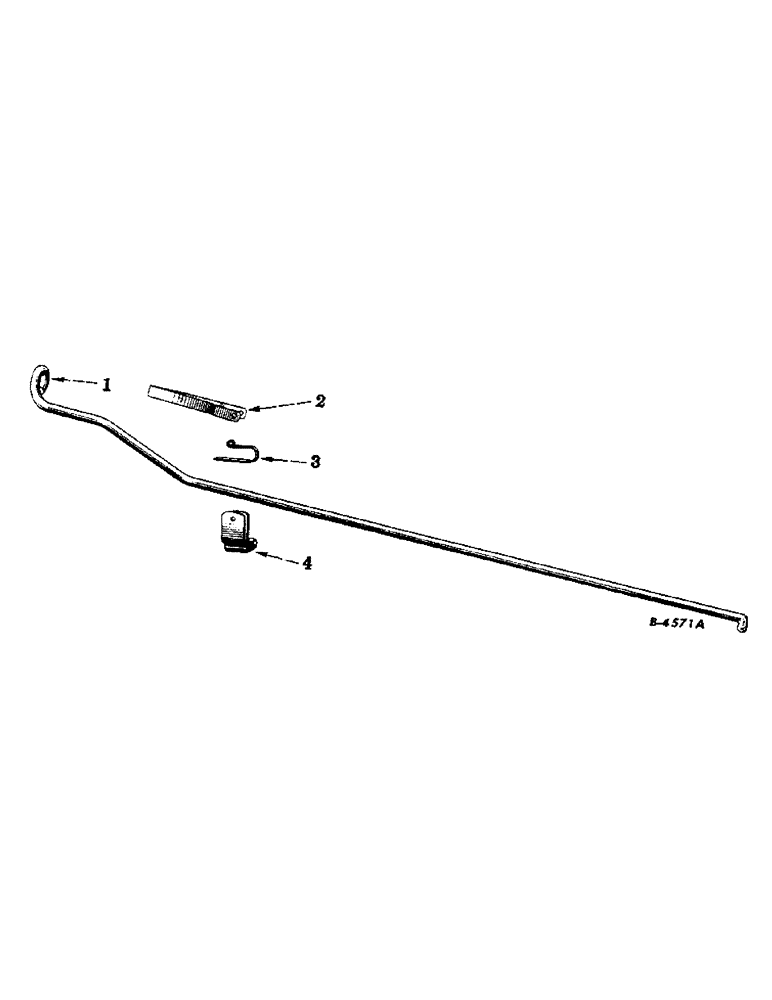

Запчасти Case IH FARMALL H (199) - HYDRAULIC SYSTEM, REMOTE CONTROL ATTACHMENT, SPECIAL, CONTROL ROD AND CONNECTIONS (07) - HYDRAULIC SYSTEM

357481R91

REMOTE CONTROL ATTACHMENT, complete

1шт.

353215R91

BREAK-AWAY COUPLING, front section, assembly

1шт.

353097R94

AUXILIARY CONTROL VALVE, complete

1шт.

354037R95

HYDRAULIC CYLINDER, complete (3-1/2 x 8")

1шт.

357485R92

HYDRAULIC REMOTE CONTROL CYLINDER PACKAGE

1шт.

1

353115R2

CONTROL ROD

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

1шт.

2

352237R1

CONTROL ROD LATCH

1шт.

105088

RIVET,But Hd, 3/16" x 2 1/4"

3/16 x 2-1/4" round head

1шт.

3

15137E

SPRING

CONTROL ROD SPRING

1шт.

4

353117R91

CONTROL ROD SUPPORT

1шт.

110506

SLOTTED SCREW, no. 10-24 x 1-1/4" round head Slotted Rd Hd, #10-24 x 1 1/4"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.
