Запчасти Case IH FARMALL H (198) - HYDRAULIC SYSTEM, HYDRAULIC "LIFT-ALL" ATTACHMENT, SPECIAL, DELAYED LIFT VALVE (07) - HYDRAULIC SYSTEM

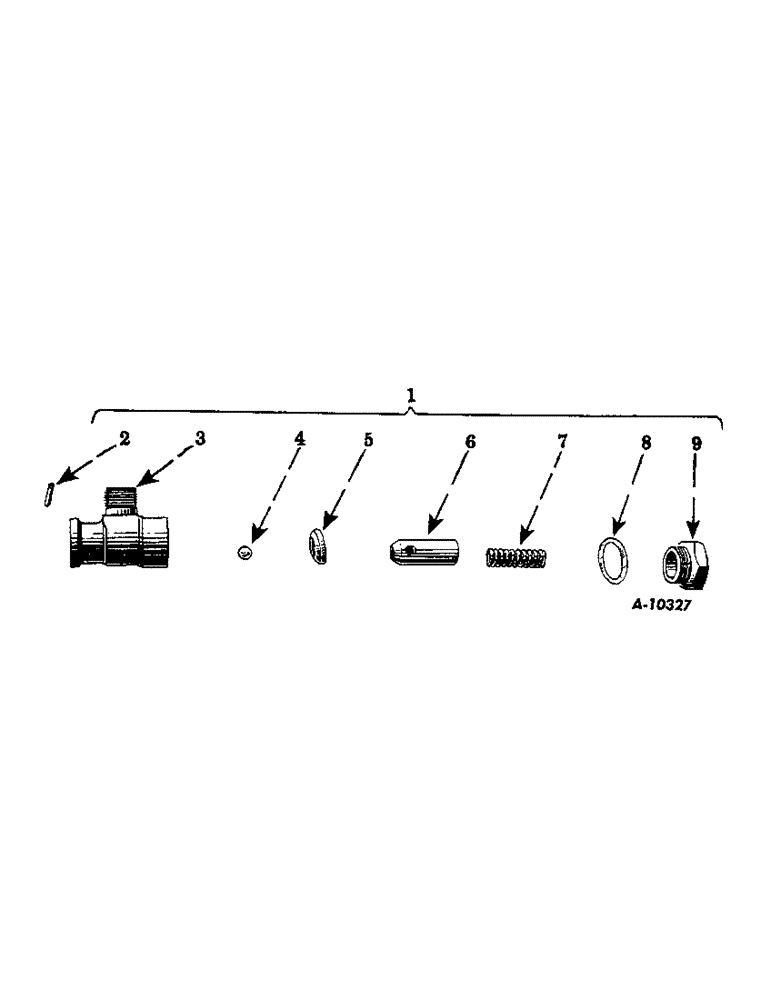

Схема запчастей Case IH FARMALL H - (198) - HYDRAULIC SYSTEM, HYDRAULIC "LIFT-ALL" ATTACHMENT, SPECIAL, DELAYED LIFT VALVE (07) - HYDRAULIC SYSTEM
8
4
2
5
3
1
9
6
7

Артикул

Название

Примечание

Количество

1

15120EX

DELAYED LIFT VALVE, complete (Releases at 275 pounds to 300 pounds pressure. To be used with pump unit having 450 pounds to 500 pounds pressure) (A)

1шт.

1

15120EBX

DELAYED LIFT VALVE, complete (Releases at 475 pounds to 500 pounds pressure. To be used with pump unit stenciled "8" having 800 pounds to 850 pounds pressure) (B)

1шт.

2

15141E

BALL RETAINING PIN (Order 103575) (A)

1шт.

2

103575

PIN,#1 x 1 1/4", Tapered

BALL RETAINING PIN (Will work for 15141E) (B)

1шт.

2

NLS

NO LONGER SERVICED

BALL RETAINING PIN (Used with 15120EBX) (B)

1шт.

3

5041EB

VALVE HOUSING (Order 15120EBX)

1шт.

4

D2615

BALL

STEEL BALL, 3/8" diameter

1шт.

5

15119E

RUBBER SEAL

1шт.

6

15116E

VALVE PISTON (B)

1шт.

7

15118EA

PISTON PRESSURE SPRING (Order 494031R1 if increased pressure is desired) (A)

1шт.

7

494031R1

PISTON PRESSURE SPRING (Will work for 15118EA in 15120EX if increased pressure is desired. Can only be used if pump unit has "8" stenciled on it) (B)

1шт.

8

15122EA

VALVE HOUSING GASKET (Fishpaper) (Optional with 365097R1)

1шт.

8

365097R1

VALVE HOUSING GASKET (Optional with 15122EA)

1шт.

9

15117E

VALVE PLUG

1шт.

15142E

ADJUSTING SHIM

1шт.

Выбрано товаров: 15
