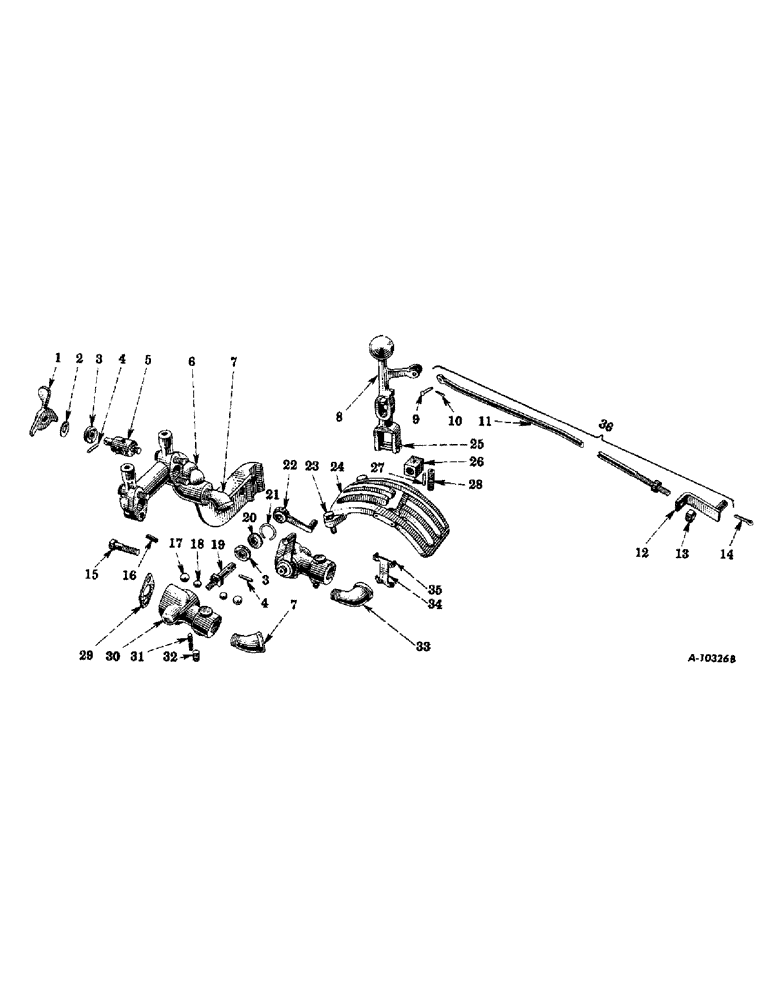

Запчасти Case IH FARMALL H (196) - HYDRAULIC SYSTEM, HYDRAULIC "LIFT-ALL" ATTACHMENT, SPECIAL, SELECTIVE LIFT CONTROL, 15300EX (07) - HYDRAULIC SYSTEM

1

5077E

ADJUSTMENT VALVE LEVER

1шт.

2

15289E

ADJUSTMENT VALVE WASHER, 1-1/32 x 31/64" x 28 ga. (Order 351905R91) (S/N 501 to)

1шт.

2

15289EA

ADJUSTMENT VALVE WASHER, 1-1/32 x 31/64" x 13 ga. (S/N up)

1шт.

3

13944L

SEAL

OIL SEAL

1шт.

4

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

GROOVE PIN, 3/16 x 1-1/4"

1шт.

5

15287EA

ADJUSTMENT VALVE (S/N up)

1шт.

6

5074E

VALVE HOUSING MANIFOLD

1шт.

7

137894

ELBOW,45 Degree, 1/2" NPT Street

STREET ELBOW, 1/2" (45 degrees)

2шт.

8

5076E

SELECTOR LEVER

1шт.

9

15295E

CONTROL ROD PIN, 3/16 x 1" (Drilled)

1шт.

10

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

11

15297E

CONTROL ROD

1шт.

12

15301EX

CONTROL ROD ADJUSTING END, complete

1шт.

13

280136

NUT,3/8"-16, G8

2шт.

14

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

15

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

HEXAGON BOLT, 7/16 x 1-3/4"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

15291E

MANIFOLD BALL STOP

2шт.

17

2617

LAMP

STEEL BALL, 5/8" diameter

4шт.

18

9915T

BALL,7/16 Dia

STEEL BALL, 7/16" diameter

4шт.

19

15284E

VALVE SHAFT, right

1шт.

19

15285E

VALVE SHAFT, left

1шт.

20

15286E

VALVE SHAFT BEARING

2шт.

21

15288E

VALVE HOUSING SNAP RING

2шт.

22

5078E

VALVE LEVER

2шт.

23

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

5073E

SELECTOR LEVER QUADRANT

1шт.

25

107164

X

TRUSS HEAD RIVET, 3/16 x 1-3/8"

2шт.

26

15283E

SELECTOR LEVER PIVOT BLOCK

1шт.

27

142507

GROOVED PIN

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

28

15293E

SELECTOR LEVER SPRING

1шт.

29

15292E

VALVE HOUSING GASKET

2шт.

30

5075E

VALVE HOUSING

2шт.

31

15294E

VALVE HOUSING BALL STOP

2шт.

32

103865

PIPE PLUG, 1/8"

2шт.

33

108686

ELBOW,90 Degree, 1/2" NPT Street

STREET ELBOW, 1/2" (90 degrees)

1шт.

34

15290E

VALVE LEVER STOP SPRING

2шт.

35

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

SLOTTED BOLT, 10-24 x 3/8" (Round head)

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

36

15296EX

CONTROL ROD, complete

1шт.

13415R1

MACHINE BOLT, 7/16 x 3"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

114773

HEX NUT, 7/16"

1шт.

351905R91

ADJUSTMENT VALVE, 15287EA and adjustment valve washer, 15289EA (Will work for 15287E) (S/N 501 to)

1шт.

15113E

SELECTIVE LIFT VALVE EXTENSION LEVER, (15115E), replaced by 15300EX selective lift control

1шт.

15114E

SELECTIVE LIFT VALVE STEAM COCK, (15115E), replaced by 15300EX selective lift control

1шт.

15115E

SELECTIVE LIFT VALVE, complete, (15115E), replaced by 15300EX selective lift control

1шт.

191362

HYD CONNECTOR

PIPE NIPPLE, 1/2 x 2-1/4", (15115E), replaced by 15300EX selective lift control

1шт.
