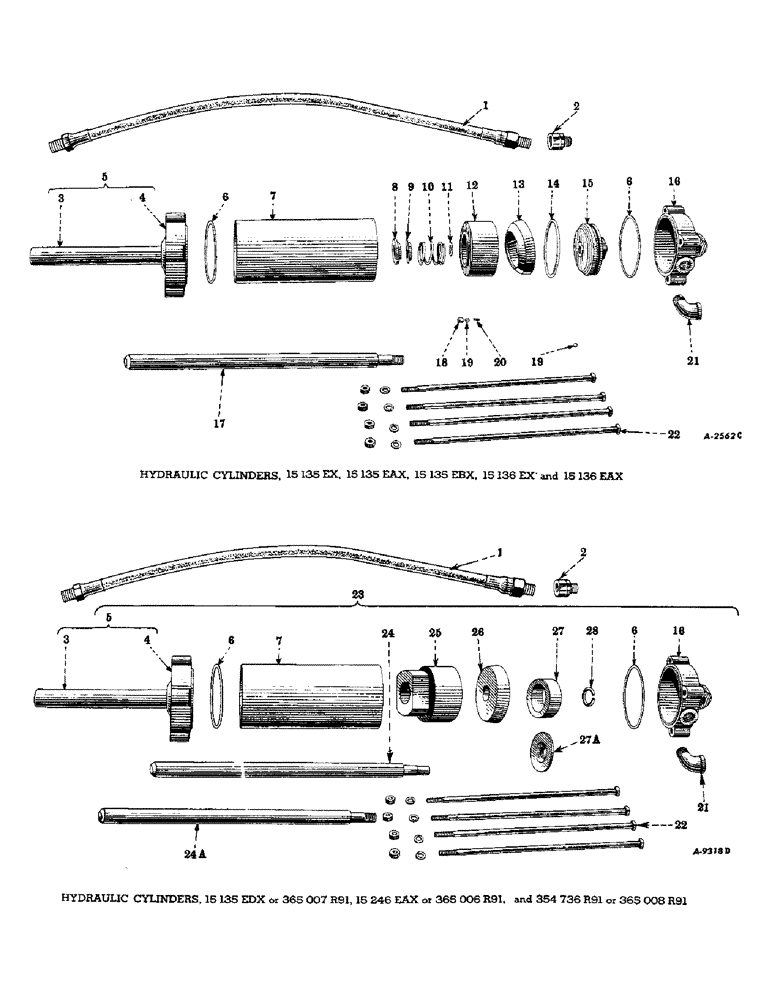

Запчасти Case IH FARMALL H (192) - HYDRAULIC SYSTEM, HYDRAULIC "LIFT-ALL" ATTACHMENT, SPECIAL, HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

1

351130R92

HYDRAULIC HOSE (Will work for 15111EAX) (Optional with 360114R91)

1шт.

1

360114R91

HYDRAULIC HOSE (Will work for 15111EAX) (Optional with 351130R92)

1шт.

2

15132EAX

ADAPTER

SWIVEL UNION ADAPTER, 1/2", male and female (S/N 501 to)

1шт.

3

15095EA

GUIDE

PISTON ROD GUIDE

1шт.

4

5035EA

CYLINDER HEAD, front (A, B, C, D)

1шт.

4

5039EA

CYLINDER HEAD, front (E, F, G)

1шт.

4

5066EB

CYLINDER HEAD, front (H)

1шт.

5

15139EAX

CYLINDER HEAD, front, 5035EA with guide, 15095EA (A, B, C, D)

1шт.

5

15140EAX

CYLINDER HEAD, front, 5039EA with guide, 15095EA (E, F, G)

1шт.

5

15256EAX

CYLINDER HEAD, front, 5066EB with guide, 15095EA (H)

1шт.

6

15100EA

O-RING

CYLINDER HEAD GASKET (Optional with 365096R1) (A, B, C, D)

2шт.

6

365096R1

GASKET

CYLINDER HEAD GASKET (Optional with 15100EA) (A, B, C, D)

2шт.

6

15109EA

SHIM

CYLINDER HEAD GASKET (Optional with 365100R1) (E, F, G)

2шт.

6

365100R1

GASKET

CYLINDER HEAD GASKET (Optional with 15109EA) (E, F, G)

2шт.

6

15247EA

SHIM

CYLINDER HEAD GASKET (Optional with 365071R1) (H)

2шт.

6

365071R1

CYLINDER HEAD GASKET (Optional with 15247EA) (H)

2шт.

7

15096E

CYLINDER SLEEVE (Steel) (Optional with 5111E) (Order 365009R91) (A, B, C, D)

1шт.

7

5111E

CYLINDER SLEEVE (Gray iron) (Optional with 15096E) (Order 365010R91) (A, B, C, D)

1шт.

7

15107E

CYLINDER SLEEVE (Steel) (Optional with 5112E) (Order 365012R91) (E, F, G)

1шт.

7

5112E

CYLINDER SLEEVE (Gray iron) (Optional with 15107E) (Order 365011R91) (E, F, G)

1шт.

7

15248E

SLEEVE

CYLINDER SLEEVE (Steel) (Optional with 5069EB) (H)

1шт.

7

5069EB

CYLINDER SLEEVE (Gray iron) (Optional with 15248E) (H)

1шт.

8

15097E

RUBBER FLOATING SEAL (A, B, C, E, F)

1шт.

9

15105E

FLOATING SEAL CUP (A, B, C, E, F)

1шт.

10

15104E

FLOATING SEAL SPRING (A, B, C, E, F)

1шт.

11

15099E

PISTON ROD GASKET (Optional with 365095R1) (A, B, C, E, F)

1шт.

11

365095R1

PISTON ROD GASKET (Optional with 15099E) (A, B, C, E, F)

1шт.

12

5034E

PISTON, hollow (A, B)

1шт.

12

5071E

PISTON, solid (C)

1шт.

12

5038E

PISTON, hollow (E, F)

1шт.

13

15098E

PISTON DISK, leather (Order 15147E) (A)

1шт.

13

15147E

CUP

PISTON CUP, rubber (Will work for 15098E) (B, C)

1шт.

13

15108E

PISTON DISK, leather (order 15148E) (E)

1шт.

13

15148E

PISTON CUP (Will work for 15108E) (F)

1шт.

14

15102E

PISTON CUP PRESSURE SPRING (A, B, C)

1шт.

14

15110E

PISTON CUP PRESSURE SPRING (E, F)

1шт.

15

5033E

PISTON DISK NUT (A)

1шт.

15

5045EA

PISTON DISK NUT (B, C)

1шт.

15

5037E

PISTON DISK NUT (E)

1шт.

15

5046E

PISTON DISK NUT (F)

1шт.

16

5036EA

CYLINDER HEAD, rear (A, B, C, D)

1шт.

16

5040E

CYLINDER HEAD, rear (E, F, G)

1шт.

16

5067E

CYLINDER HEAD, rear (H)

1шт.

17

15094E

PISTON ROD (A, B, E, F)

1шт.

17

15269E

PISTON ROD (C)

1шт.

18

15101E

PISTON CHECK VALVE SEAT (A, B, C, E, F)

1шт.

19

16010R1

BALL

STEEL BALL, 5/16" diameter (A, B, C, E, F)

2шт.

20

15103E

PISTON BALL SPRING (A, B, C, E, F)

1шт.

21

108686

ELBOW,90 Degree, 1/2" NPT Street

STREET ELBOW, 1/2" (90 degrees)

1шт.

22

13789R1

MACHINE BOLT, 3/8 x 13-1/4" (A, B, C, D, E, F, G)

4шт.

MACHINE BOLT, 3/8 x 13-1/4" (H)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A, B, C, D, E, F, G) 3/8"

4шт.

LOCKWASHER, 3/8" (H)

3шт.

280136

NUT,3/8"-16, G8

(A, B, C, D, E, F, G) 3/8"-16, G8

4шт.

HEX NUT, 3/8" (H)

3шт.

22

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCREW, 3/8 x 1-3/4" N.C. hex head (Used with gray iron sleeve) (A, B, C, D, E, F, G)

4шт.

22

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Used with gray iron sleeve) (A, B, C, D, E, F, G) Hex, 3/8"-16 x 2", G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A, B, C, D, E, F, G) 3/8"

4шт.

23

15135EDX

HYDRAULIC CYLINDER, complete (2-1/4 x 8", less hose (A, B, C, D)

1шт.

23

15136ECX

HYDRAULIC CYLINDER, complete, 3 x 8", less hose (E, F, G)

1шт.

23

15246EAX

HYDRAULIC CYLINDER, complete, 1-3/4 x 8", less hose (H)

1шт.

24

15379E

PISTON ROD (Plain end) (Order 354757R91) (G)

1шт.

24

15379E

PISTON ROD (D, H)

1шт.

24

15252E

PISTON ROD (For piston, 5068E) (H)

1шт.

24a

354737R1

PISTON ROD (Threaded end) (G)

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, (G) 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), (G) 3/32" x 1"

1шт.

25

5192E

PISTON (D)

1шт.

25

5193E

PISTON (For plain end piston rod, Order 354757R91) (G)

1шт.

25

5193E

PISTON (For threaded end piston rod) (G)

1шт.

25

15249E

PISTON (Order 5068E) (H)

1шт.

25

5068E

PISTON (For use with piston rod, 15252E) (H)

1шт.

25

5113E

PISTON (H)

1шт.

26

15750E

CUP

PISTON CUP (D)

1шт.

26

15752E

CUP

PISTON CUP (G)

1шт.

26

15253E

CUP

PISTON CUP (H)

1шт.

27

15749E

PISTON CUP RETAINER (D)

1шт.

27

15751E

PISTON CUP RETAINER (Used with plain end piston rod) (G)

1шт.

27

15251E

PISTON CUP RETAINER (H)

1шт.

27a

354738R1

PISTON CUP RETAINER (Used with threaded end piston rod) (G)

1шт.

28

15254E

RING

SNAP RING (D, H)

1шт.

28

15254E

RING

SNAP RING (Used with plain end piston rod) (G)

1шт.

NLS

NO LONGER SERVICED

COTTER, 3/16 x 1-3/8" (In 5033E, 5037E or 5046E) (A, E, F)

1шт.

15380EX

PISTON 5113E with rod, 15379E (H)

1шт.

15754EX

PISTON, 5193E with rod, 15379E (D)

1шт.

354737R11

PISTON, 5193E with rod, 354737R1 (G)

1шт.

354757R91

PISTON ROD, complete (Will work for 15755EX) (G)

1шт.

494032R91

PISTON ROD, complete assembly (H)

1шт.

494033R91

PISTON ROD, complete assembly (A, B, C, D)

1шт.

494034R91

PISTON ROD, complete assembly (E, F)

1шт.

365009R91

CYLINDER SLEEVE SERVICE PACKAGE (Gray iron) (Will work for 15096E) (A, B, C, D)

1шт.

365010R91

CYLINDER SLEEVE SERVICE PACKAGE (Steel) (Will work for 5111E) (A, B, C, D)

1шт.

365011R91

CYLINDER SLEEVE SERVICE PACKAGE (Steel) (Will work for 5112E) (E, F, G)

1шт.

365012R91

CYLINDER SLEEVE SERVICE PACKAGE (Gray iron) (Will work for 15107E) (E, F, G)

1шт.
