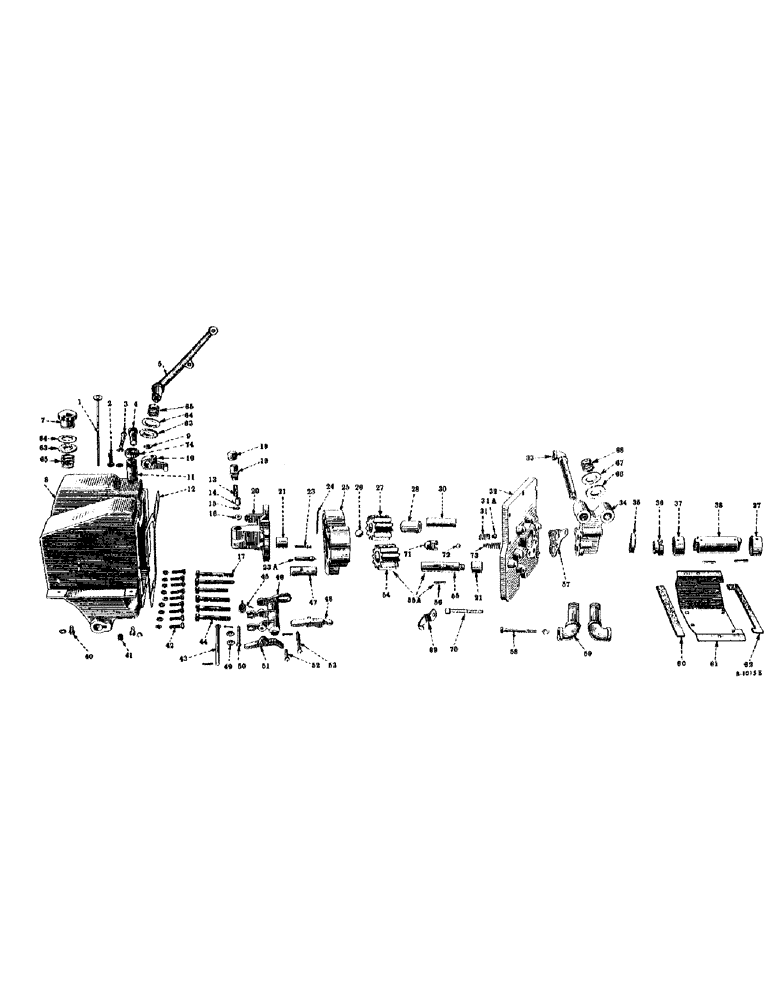

Запчасти Case IH FARMALL H (188) - HYDRAULIC SYSTEM, HYDRAULIC "LIFT-ALL" ATTACHMENT, SPECIAL (07) - HYDRAULIC SYSTEM

1

15158EX

GAUGE

OIL STICK (For use with breather cap, 5047EX)

1шт.

2

NLS

NO LONGER SERVICED

CAP SCREW, 7/16 x 1-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

15089EA

CONTROL SHAFT

1шт.

5

5023EB

CONTROL SHAFT LEVER, outer

1шт.

7

5047EX

CAP

BREATHER CUP (Use oil stick, 15158EX)

1шт.

8

5014EB

OIL RESERVOIR

1шт.

9

15010E

CONTROL SHAFT KEY

1шт.

10

5022E

CONTROL SHAFT LEVER, inner

1шт.

11

16067R1

PIPE NIPPLE, 3/4 x 3-1/4", in oil reservoir

1шт.

12

15069E

GASKET

FOR OIL RESERVOIR

1шт.

13

15258E

SPRING

RELIEF VALVE SPRING

1шт.

14

358358R1

SLEEVE

RELIEF VALVE SPRING SLEEVE (Will work for 15160EA)

1шт.

15

16012R1

BALL

STEEL BALL, 3/8" diameter

1шт.

16

15073E

WASHER

BALL PRESSURE SEAT

1шт.

17

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

CAP SCREW, 1/2 x 4"

2шт.

18

15063EC

RELIEF VALVE CAP

1шт.

19

15062E

RELIEF VALVE BODY

1шт.

19

358356R91

VALVE

RELIEF VALVE, complete (Will work for 15062EX)

1шт.

20

5018ECX

PUMP COVER, complete (S/N below 267057)

1шт.

20

352421R11

PUMP COVER, with bearing, 550850R91 (S/N 267057 up)

1шт.

355116R1

BOLT, 1/2 x 3-1/4" N.C. hex head (Special)

4шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAP SCREW, 1/2 x 3-1/2" N.C. hex head

1шт.

355117R1

BOLT, 1/2 x 4" N.C. hex head (Special)

2шт.

21

15054E

BUSHING

PUMP DRIVE SHAFT BUSHING (S/N below 267057)

2шт.

21

550850R91

NEEDLE BEARING

PUMP DRIVE SHAFT BEARING (S/N 267057 up)

2шт.

23

15066E

HOLD-UP BALL LIFT PIN

1шт.

(S/N, Serial Range: 501-391363)

2шт.

23a

356683R1

DIFFERENTIAL CHECK VALVE LIFT PIN (S/N 391364 up)

1шт.

24

15257E

SPRING

LOCKING CLIP SPRING

1шт.

25

5017EA

PUMP BODY (Order 352436R91) (S/N below 267057)

1шт.

25

5017EB

PUMP BODY (S/N 267057 up)

1шт.

25

352436R91

PUMP BODY, 5017EB with shim package, 352424R91 (Will work for 5017EA)

1шт.

26

31408D

BALL

STEEL BALL, 3/4" diameter

1шт.

(S/N, Serial Range: 501-391363)

2шт.

27

352419R92

GEAR

PUMP DRIVEN GEAR (11 teeth) WITH BUSHING, 357883R1 (S/N below 267057)

1шт.

27

SPARE PART

PUMP DRIVEN GEAR (11 teeth) (Order 352428R93) (S/N 26707 up)

1шт.

28

357883R1

BUSHING

PUMP DRIVEN GEAR BUSHING (Will work for 2 bushing, 15053E or 2 bearing, 550839R91)

1шт.

30

15055E

PUMP DRIVEN GEAR STUD (.9980/.9985 O.D.) (S/N below 267057)

1шт.

30

352423R1

PIN

PUMP DRIVEN GEAR STUD (.9995/1.000 O.D.) (S/N 267057 up)

1шт.

31

15056E

SPRING

HOLD-UP BALL SPRING, 8 coils

1шт.

(S/N, Serial Range: 501-391363)

2шт.

31a

352783R1

STOP

HOLD-UP BALL STOP

1шт.

(S/N, Serial Range: 501-391363)

2шт.

32

5015EBX

BACK PLATE, complete with bushing (S/N below 267057)

1шт.

32

352422R11

BACK PLATE, complete (S/N 267057 up)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

33

15077EAX

OIL OUTLET ELBOW, complete (Welded)

1шт.

34

5016EA

BACK PLATED MANIFOLD

1шт.

35

43509D

OIL SEAL

OIL SEAL

1шт.

36

15060EA

COUPLING

PUMP SHAFT FEMALE COUPLING

1шт.

37

15057E

BUSHING

DRIVING DOG SLEEVE

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

38

15065EA

DRIVING DOG

1шт.

40

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

41

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

42

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

43

Q671

PIN, 3/8 x 5-3/4" (Drilled)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

44

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

45

15068EB

SPRING

VALVE CAM AND PISTON LEVER SPRING

1шт.

46

5019EB

CAM AND PISTON VALVE LEVER

1шт.

47

15061EA

PISTON

1шт.

48

5024EA

LOCKING CLIP

1шт.

49

Q101

WASHER

5/16 x 3/4" x 18 ga.

2шт.

50

Q3533

HEADED PIN,5/16" x 3"

PIN, 5/16 x 3" (Drilled)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

51

5020E

CAM PLATE

1шт.

52

15074E

CAM PLATE PIN, 5/16 x 1-1/2" (Slotted)

1шт.

53

PO14564

AXLE PIN

PIN, 5/16 x 2-3/4" (Drilled)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

54

15051EA

PUMP DRIVE GEAR (11 teeth) (S/N below 267057)

1шт.

54

PUMP DRIVE GEAR (11 teeth) (Order 352428R93) (S/N 267057 up)

1шт.

55

15058EA

PUMP DRIVE SHAFT (Has .9970/.9975 O.D. bearing surfaces) (S/N below 267057)

1шт.

55

352420R2

SHAFT

PUMP DRIVE SHAFT (Has .9990/.9995 O.D. bearing surfaces) (S/N 267057 up)

1шт.

55a

15058EAX

PUMP DRIVE SHAFT, 15058EA with gear, 15051EA and key, 144542 (S/N below 267057)

1шт.

55a

PUMP DRIVE SHAFT WITH GEAR (Order 352428R93) (S/N 267057 up)

1шт.

56

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

no. 126, 3/16 x 2-1/8"

1шт.

57

15070E

MANIFOLD GASKET

MANIFOLD GASKET

1шт.

58

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

CAP SCREW, 3/8 x 3-1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

59

15078EB

OIL OUTLET ELBOW, complete (Welded)

2шт.

60

15176EA

REAR COVER PLATE FELT STRIP, rear

1шт.

61

15079EA

REAR COVER PLATE

1шт.

62

15177EA

REAR COVER PLATE FELT STRIP, front

1шт.

63

15163E

WASHER,1.03" ID x 2" OD x 0.125" Thk

FILLER PIPE AND OPERATOR'S CONTROL ROD FELT WASHER (1-1/32" I.D. x 2" O.D. x 1/8" thick)

2шт.

64

Q357

WASHER, 1-1/32 x 2" x 18 ga.

2шт.

65

15240E

SPRING

FILLER PIPE AND OPERATOR'S CONTROL ROD DUST SEAL SPRING (4 coils)

2шт.

66

15162E

SEALING WASHER

OIL OUTLET ELBOW FELT WASHER (13/16" I.D. x 2" O.D. x 1/8" thick)

3шт.

67

Q3691

WASHER, 29/32" I.D. x 2" O.D. x 22 ga.

3шт.

68

15164EA

OIL OUTLET ELBOW DUST SEAL SPRING (3-1/2 coils)

3шт.

69

15265E

BEARING RETAINER BRACKET

1шт.

70

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAP SCREW, 1/2 x 3-1/2"

1шт.

71

356683R1

DIFFERENTIAL CHECK VALVE (S/N 391364 up)

1шт.

72

16013R1

BALL

DIFFERENTIAL CHECK VALVE BALL (S/N 391364 up)

1шт.

73

356684R1

SPRING

DIFFERENTIAL CHECK VALVE SPRING (S/N 391364 up)

1шт.

74

19812D

CONTROL SHAFT OIL SEAL (Used with shaft, 15089E)

1шт.

74

494027R1

CONTROL SHAFT OIL SEAL (Used with shaft, 15089EA)

1шт.

15174EX

IMPROVEMENT PACKAGE FOR DUST SEALING (Farmall - H tractors not so equipped)

1шт.

15259E

GASKET

RELIEF VALVE GASKET (1/64" Vellumoid Hytex)

1шт.

15261EX

IMPROVEMENT PACKAGE FOR INCREASING PUMP PRESSURE FROM 500 TO 800 POUNDS FOR "LIFT-ALL" ATTACHMENT

1шт.

Q3817

WASHER

RELIEF VALVE WASHER, 11/32 x 21/32" x 24 ga. (Use as required)

1шт.

352428R93

GEAR

PUMP GEAR PACKAGE (S/N 267057 up)

1шт.

352424R91

PACKAGE

PUMP BODY SHIM PACKAGE

1шт.

494023R1

WASHER, 1/2 x 25/32" x 22 ga. (Between relief valve, 15062E and ball pressure seat, 15073E) (Use as required)

1шт.

494028R91

CONTROL SHAFT SEALING IMPROVEMENT PACKAGE (Includes shaft, 15089EA and seal 494027R1) (S/N below 210940)

1шт.
