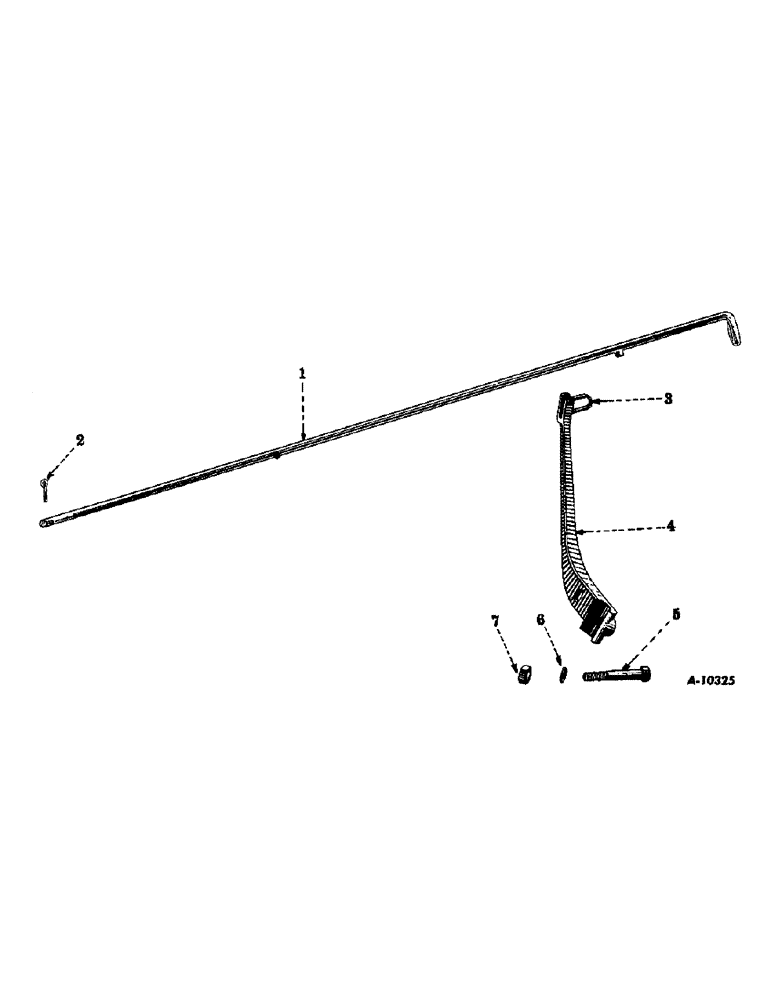

Запчасти Case IH FARMALL H (187) - HYDRAULIC SYSTEM, HYDRAULIC "LIFT-ALL" ATTACHMENT, SPECIAL, CONTROL ROD AND BRACKET (07) - HYDRAULIC SYSTEM

1

15091EX

CONTROL ROD

1шт.

2

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

3

15137E

SPRING

CONTROL ROD SPRING

1шт.

4

5013EAX

CONTROL ROD BRACKET, with spring, 15137E and rivet, 107162

1шт.

107162

WASHER

RIVET, 3/16 x 1-1/8" (Truss head)

1шт.

5

12406R1

BOLT, 7/16 x 2-7/8" with hex nut, 114773 and lockwasher, 103322

1шт.

6

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

7

114773

HEX NUT, 7/16"

1шт.
