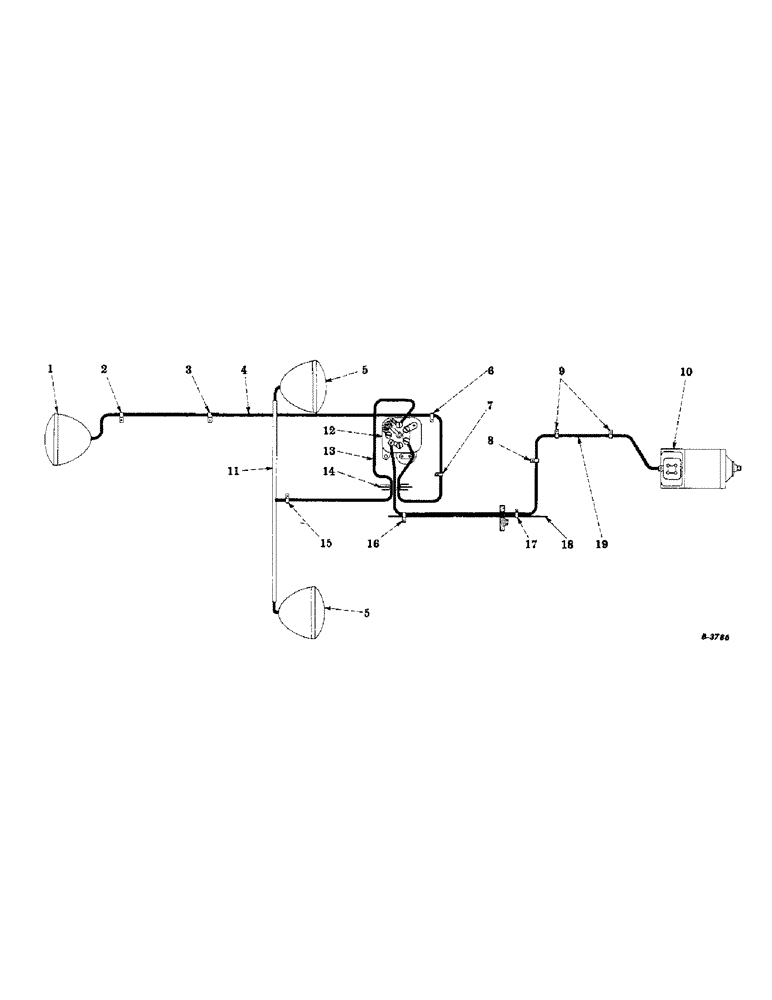

Запчасти Case IH FARMALL H (084) - ELECTRICAL SYSTEM, WIRING DIAGRAM, ELECTRIC LIGHTING, SPECIAL, BOSCH NO-BATTERY GENERATOR (06) - ELECTRICAL SYSTEMS

1

45640DB

LAMP

REAR LIGHT

1шт.

2

60938D

CLIP, on rear frame cover

1шт.

3

351794R1

CLIP, on upper brake housing mounting bolt

1шт.

4

358311R91

CABLE

(Switch to rear light) (Will work for 61886D)

1шт.

5

45640DB

LAMP

HEADLIGHT

1шт.

6

56276D

CLIP, on rear frame cover mounting bolt (Second bolt from front)

1шт.

7

56276D

CLIP, on steering post mounting bolt

1шт.

8

60938D

CLIP, under head of bolt holding air cleaner to support bracket (Top bolt)

1шт.

9

60938D

CLIP, on front and rear valve cover studs

1шт.

10

61875D

GENERATOR (No longer supplied for service)

1шт.

11

HEADLIGHT SUPPORT

1шт.

12

LIGHTING SWITCH (Delco-Remy 1994036)

1шт.

13

52973DA

HARNESS

headlight cable (Optional with 365022R91)

1шт.

13

365022R91

HARNESS, headlight cable (Optional with 52973DA)

1шт.

14

52062D

GROMMET

in instrument panel cover

1шт.

14

42865D

GROMMET, in instrument panel cover

1шт.

15

60938D

CLIP, on lower U-bolt of headlight support bracket

1шт.

16

60937D

CLIP, on fuel tank support (Rear)

1шт.

17

60937D

CLIP, on bolt in fuel tank support that holds radiator shutter

1шт.

18

MAGNETO IGNITION CABLE

1шт.

19

61519DX

CABLE, Serial Range: generator-switch

1шт.
