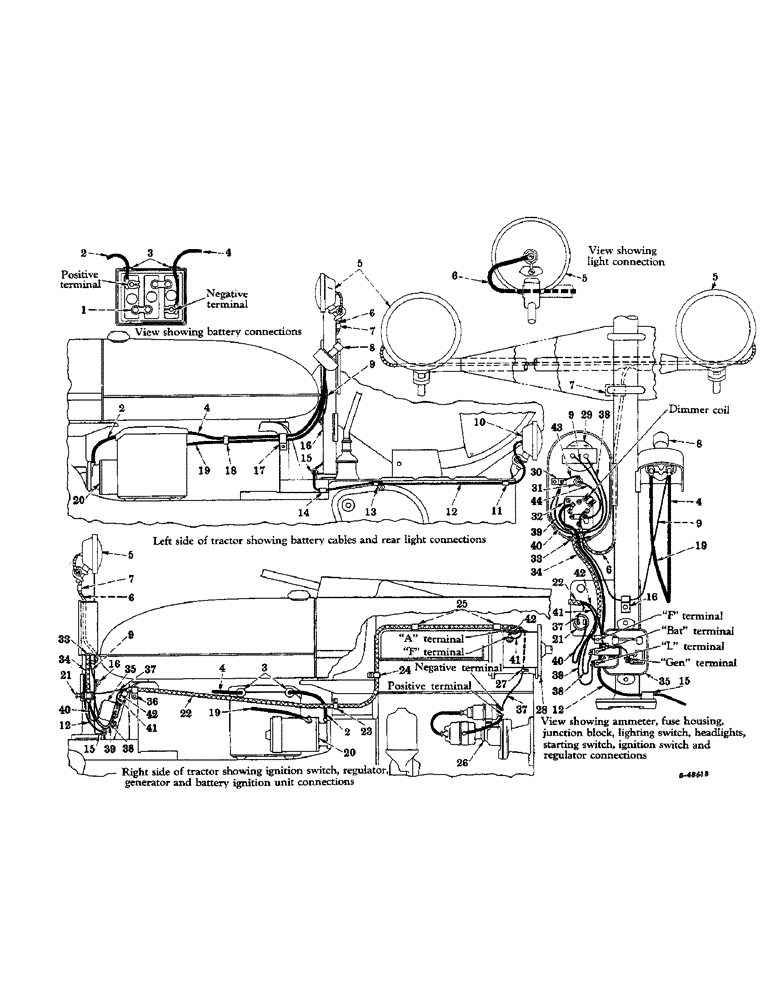

Запчасти Case IH FARMALL H (072) - ELECTRICAL SYSTEM, LIGHTING AND STARTING, BATTERY IGNITION, TRACTORS NO. 501 TO 19233 (06) - ELECTRICAL SYSTEMS

1

355196R92

BATTERY (Auto-Lite) (See note A)

1шт.

1

354210R91

SPARE PART BATTERY (Globe union) (See note A)

1шт.

2

52971DA

CABLE

CABLE, battery to ground (S/N, Serial Range: 501-391357)

1шт.

2

358990R91

CABLE

CABLE, battery to ground (S/N 391358 up)

1шт.

3

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

GROMMET, battery box

2шт.

4

63422DA

CABLE

CABLE, battery to starting switch (S/N, Serial Range: 501-391357)

1шт.

4

358163R91

CABLE

CABLE, battery to starting switch (S/N 391358 up)

1шт.

5

45640DB

LAMP

HEADLIGHT (Conventional) (For components see detail list of parts under "Headlight or Rear Light" unit)

2шт.

5

357884R91

HEADLIGHT (Sealed beam) (For components see detail list of parts under "Headlight or Rear Light" unit)

2шт.

6

52973DA

HARNESS

HARNESS (Headlight cable) (Optional with 365022R91)

1шт.

6

365022R91

SPARE PART HARNESS (Headlight cable) (Optional with 52973DA)

1шт.

7

350742R1

SPARE PART CLIP, on lower "U" bolt of headlight support bracket

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

356913R91

SWITCH

STARTING SWITCH (Will work for 64931H)

1шт.

113960

SIDE RAIL

SLOTTED MACHINE SCREW, 1/4 x 1-1/8" N.C. round head

2шт.

13000R1

HEX NUT, 1/4" N.C.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

358314R91

SPARE PART CABLE (Switch to ammeter) (Optional with 365023R91) (Will work for 354259R11)

1шт.

9

365023R91

SPARE PART CABLE (Switch to ammeter) (Optional with 358314R91)

1шт.

10

45640DB

LAMP

REAR LIGHT (Conventional) (For components see detail list of parts under "Headlight or Rear Light" unit)

1шт.

10

357884R91

REAR LIGHT (Sealed beam) (For components see detail list of parts under "Headlight or Rear Light" unit)

1шт.

11

355097R1

SPARE PART CLIP, on rear frame cover

1шт.

12

358311R91

CABLE

CABLE (Switch to rear light) (Will work for 61886D) (S/N, Serial Range: 501-391357)

1шт.

12

358991R91

SPARE PART CABLE (Switch to rear light) (S/N 391358 up)

1шт.

13

351794R1

SPARE PART CLIP, on upper brake housing mounting bolt

1шт.

14

355098R1

SPARE PART CLIP, on rear frame cover mounting bolt

1шт.

15

355098R1

SPARE PART CLIP, on left hand steering post mounting bolt

1шт.

16

61387D

SPARE PART CLIP, on control bracket mounting bolt through steering post

1шт.

17

61059D

SPARE PART CLIP, on left side of rear fuel tank support

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

27383D

SPARE PART WRAPPING STRAP (Around battery cables)

1шт.

19

63423DA

CABLE

CABLE, starting switch to crank motor

1шт.

20

63608D

SPARE PART CRANKING MOTOR (Delco-Remy 1107448) (For components see detail list of parts under cranking motor) (S/N, Serial Range: 501-391357)

1шт.

20

358160R91

CRANKING MOTOR (Delco-Remy 1108016) (S/N 391358 up)

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT, 1/2-13 x 1-1/4" N.C. hex

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

62801DC

SWITCH

BATTERY IGNITION SWITCH (For components see detail list of parts under "Battery Ignition Switch" unit)

1шт.

22

354257R91

HARNESS

CABLE HARNESS (Optional with 365020R91) (S/N, Serial Range: 501-391357)

1шт.

22

365020R91

CABLE

CABLE HARNESS (Optional with 354257R91) (S/N, Serial Range: 501-391357)

1шт.

22

358161R91

HARNESS

CABLE HARNESS (S/N 391358 up)

1шт.

23

60937D

SPARE PART CLIP, on fuel tank support

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

13000R1

HEX NUT, 1/4" N.C.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

56275D

SPARE PART CLIP, cable harness (On lower steering shaft support mounting bolt)

1шт.

25

355097R1

SPARE PART CLIP, on valve cover studs

2шт.

26

353870R91

BATTERY IGNITION UNIT

1шт.

27

61387D

SPARE PART CLIP, on generator bracket front mounting bolt

1шт.

28

354237R91

SPARE PART GENERATOR (Delco-Remy 1100501) (For components see detail list of parts under generator)

1шт.

29

42383DC

AMMETER

AMMETER (A.C.) (Optional with 354473R91)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

29

354473R91

AMMETER

AMMETER (Rochester) (Optional with 42383DB)

1шт.

29

360053R91

INDICATOR

CHARGE INDICATOR (Includes clamp, 360054R91, four nuts, 120614, two washers, 120217, and two washers, 352265R1)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

30

42915D

BLOCK

INSTRUMENT PANEL JUNCTION BLOCK

1шт.

110503

SLOTTED SCREW, no. 10-24 x 7/8" round head

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

NUT, #10-24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

31

354232R91

BOX

FUSE HOUSING WITH KNOB, 356445R91 (Will work for 354233R91)

1шт.

32

LIGHTING SWITCH, complete (Delco-Remy 1994038) (For components see detail list of parts under "Lighting Switch" unit)

1шт.

33

42865D

SPARE PART GROMMET, electrical instrument mounting panel cover (Optional with 52062D)

1шт.

33

52062D

GROMMET

GROMMET, electrical instrument mounting panel cover (Optional with 42865D)

1шт.

34

354297R91

HARNESS

HARNESS (Regulator cable) (Optional with 365021R91)

1шт.

34

365021R91

HARNESS

HARNESS (Regulator cable) (Optional with 354297R91)

1шт.

35

360898R91

REGULATOR

VOLTAGE REGULATOR (Delco-Remy 1118780) (Will work for 354234R91)

1шт.

36

60937D

SPARE PART CLIP, on right side of rear fuel tank support

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

13000R1

HEX NUT, 1/4" N.C.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

CABLE, ignition switch to coil (Black) (Order 354257R91)

1шт.

38

CABLE, regulator "BAT" to ammeter (Order 354297R91)

1шт.

39

CABLE, regulator "L" terminal to junction block (Order 354297R91)

1шт.

40

CABLE, junction block to ignition switch (Order 354297R91)

1шт.

41

CABLE, regulator "F" terminal to generator "F" terminal (Order 354257R91)

1шт.

42

CABLE, regulator "GEN" terminal to generator "A" terminal (Order 354257R91)

1шт.

43

CABLE, fuse housing to junction block

1шт.

44

CABLE, fuse housing to lighting switch

1шт.

9357D

SPARE PART STARTING SWITCH BOX

1шт.

51063DA

SCREW

ELECTRICAL INSTRUMENT MOUNTING PANEL SCREW

2шт.

225-10108

NUT,#8-32

NUT, #8-32

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

51765DAX

SPARE PART ELECTRICAL INSTRUMENT MOUNTING PANEL COVER

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

250466R92

SPARE PART AMMETER CLAMP (A.C.)

1шт.

352154R91

SPARE PART AMMETER CLAMP (Rochester)

1шт.

352265R1

SPARE PART AMMETER CLAMP MOUNTING WASHER (Rochester)

2шт.

354260R1

SPACER,1/8" Pipe x 7/16"

JUNCTION BLOCK SPACER

1шт.

354262R1

SPARE PART ELECTRICAL INSTRUMENT MOUNTING PANEL

1шт.

356062R91

BOLT

TERMINAL BOLT ASSEMBLY (For service on battery cables)

1шт.

356445R91

KNOB

FUSE HOUSING KNOB

1шт.

106653

FUSE

FUSE (Cartridge type SFE-20) (6 volt, 20 amps.)

1шт.
