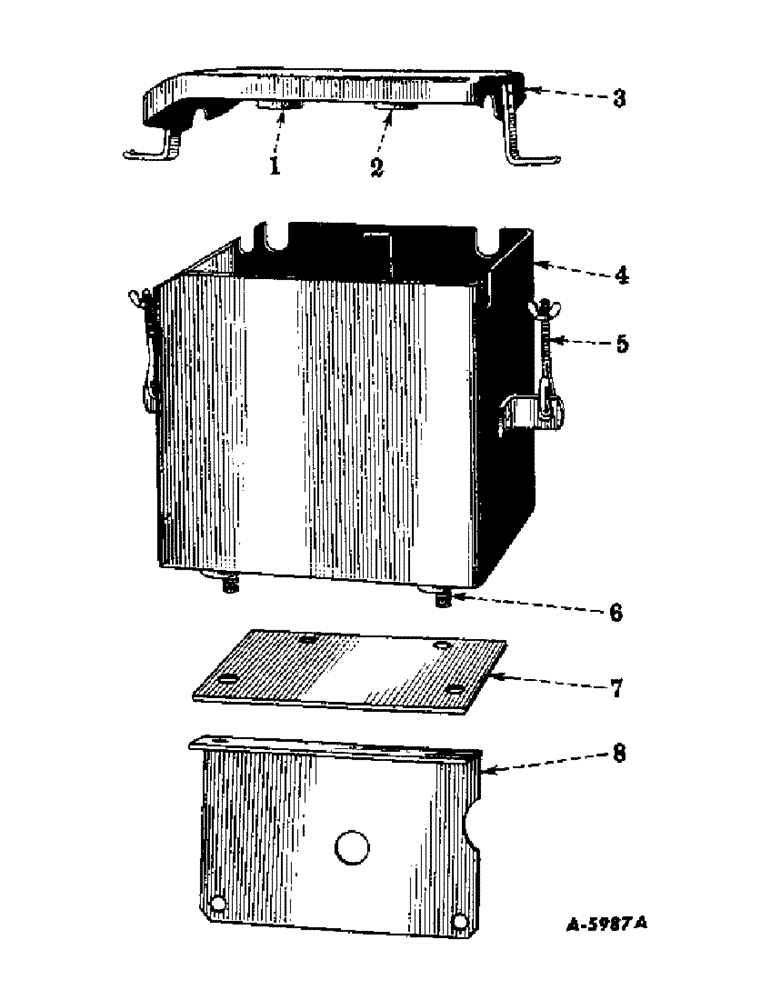

Запчасти Case IH FARMALL H (071) - ELECTRICAL SYSTEM, BATTERY BOX (06) - ELECTRICAL SYSTEMS

1

51690D

BATTERY HOLD-DOWN RUBBER, short

2шт.

2

51689D

BATTERY HOLD-DOWN RUBBER, long

2шт.

3

51686DBX

COVER ASSY

BATTERY BOX COVER, complete

1шт.

4

51680DB

HOUSING

BATTERY BOX, with 2 bolts, 51684DX (Less cover)

1шт.

5

51684DX

BATTERY BOX EYE BOLT WITH WING NUT, 103127

2шт.

6

52898D

BOLT,7/16" - 20 x 7/8", Full Thd

BATTERY SUPPORT LOCK BOLT

2шт.

103027

HEX NUT, 7/16" N.F.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

7

51685D

BATTERY BOX SUPPORT PLATE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

48882DA

BATTERY BOX SUPPORT BRACKET

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

BATTERY BOX GROMMET (Will work for 52118D)

2шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.
