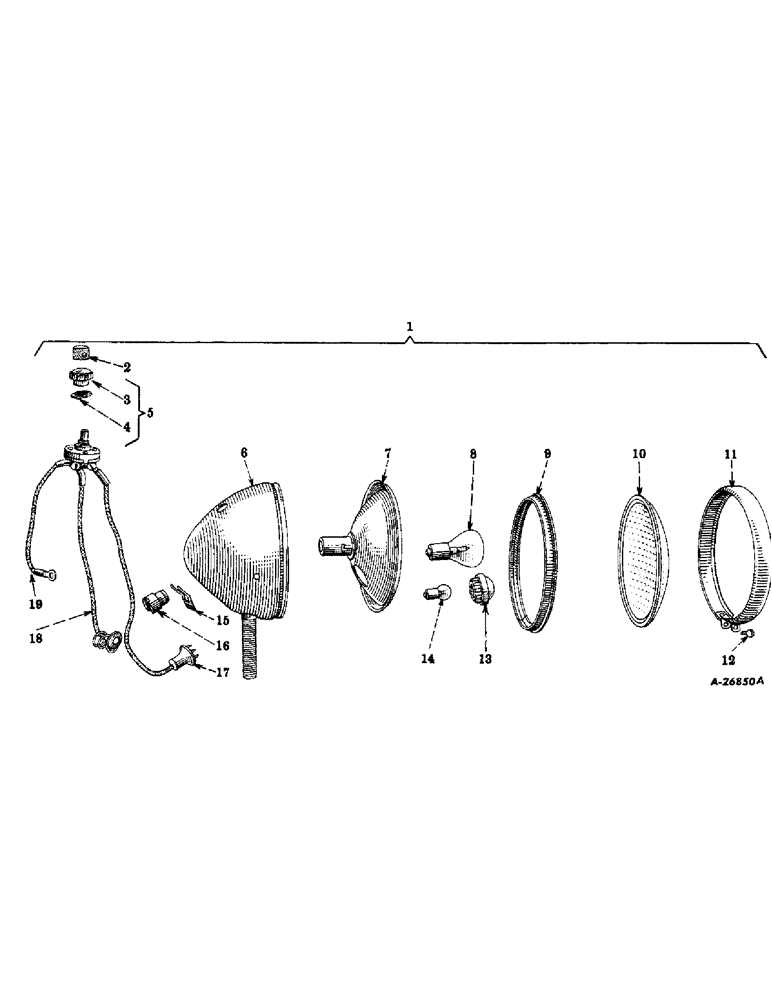

Запчасти Case IH FARMALL H (069) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT ATTACHMENT (06) - ELECTRICAL SYSTEMS

355914R91

COMBINATION REAR LIGHT AND TAIL LIGHT ATTACHMENT (6-volt) (Will work for 353268R92)

1шт.

1

355910R91

LIGHT

COMBINATION REAR LIGHT AND TAIL LIGHT

1шт.

2

355423R91

SWITCH KNOB WITH SCREW (Metal) (Used with 354309R91)

1шт.

3

359773R91

SWITCH KNOB (Plastic) (used only with 359682R91)

1шт.

4

355425R1

SWITCH RETAINING NUT

1шт.

5

359682R91

SWITCH

LIGHT SWITCH WITH KNOB, 359773R91 and nut, 355425R1 (Will work for 354309R91) (Mfr. no. 5945020)

1шт.

6

REAR LIGHT BODY (Order 355910R91)

1шт.

7

356590R91

REAR LIGHT REFLECTOR

1шт.

8

B50206

LAMP

REAR LAMP (SC-6-8 volt, 32 candle power)

1шт.

9

53527D

GASKET

REAR LIGHT GASKET

1шт.

10

350478R1

LENS

REAR LIGHT LENS

1шт.

11

53525DA

MOLDING

REAR LIGHT MOULDING

1шт.

12

53526D

SCREW

REAR LIGHT DOOR SCREW

1шт.

13

356592R91

JEWEL

1шт.

14

115273

TAIL LIGHT LAMP (SC-6-8 volt, 3 candle power)

1шт.

15

79408H

TERMINAL RETAINING SPRING

1шт.

16

79407H

PLATE

TERMINAL PLATE

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SLOTTED SCREW, no. 8-32 x 5/16", round head (Cadmium plated)

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

17

356591R91

SOCKET AND WIRING (Switch to red light)

1шт.

18

354304R91

SOCKET TO SWITCH CABLE WITH SPRING

1шт.

19

354303R91

SWITCH TO TERMINAL PLATE CABLE

1шт.

TERMINAL PLATE PACKAGE, complete

1шт.
