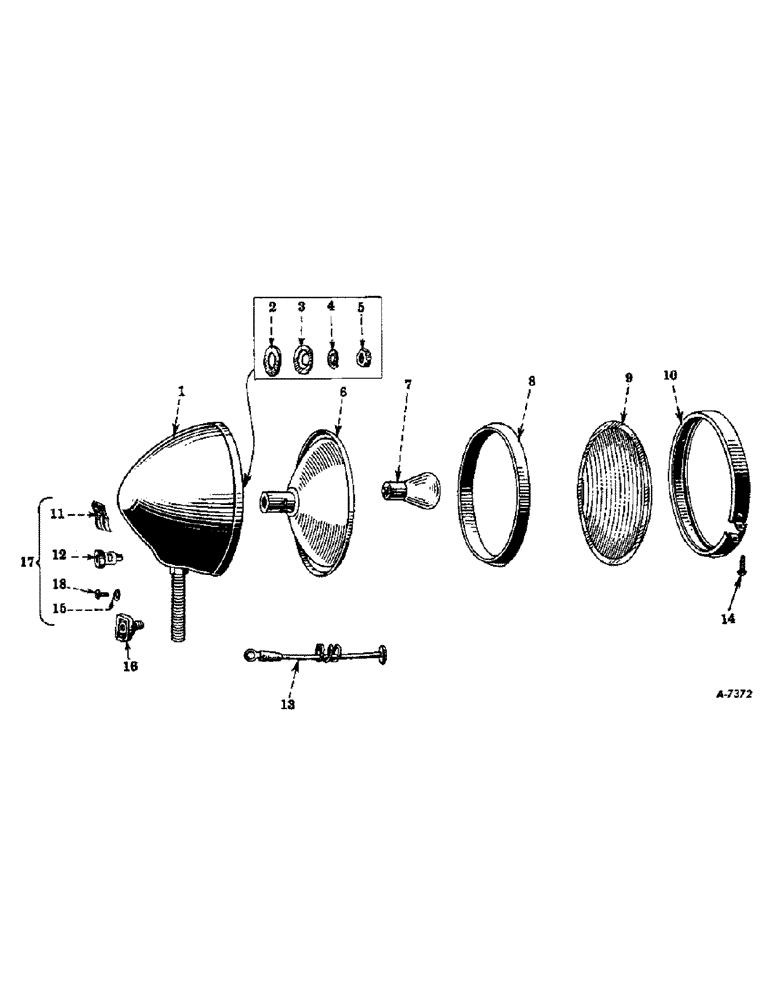

Запчасти Case IH FARMALL H (066) - ELECTRICAL SYSTEM, HEADLIGHTS OR REAR LIGHTS, CONVENTIONAL (06) - ELECTRICAL SYSTEMS

45640DB

LAMP

HEADLIGHT AND REAR LIGHT, complete

1шт.

220068

HEX NUT, 1/2" N.C.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

1

53522DA

HEADLIGHT AND REAR LIGHT BODY

1шт.

2

37075D

TERMINAL INSULATING WASHER

1шт.

3

37072D

WASHER

TERMINAL CUP WASHER

1шт.

4

112723

LOCK WASHER,5/16"

WASHER, LOCK, , Follows Ref No. 16 5/16"

1шт.

5

37063D

NUT

TERMINAL NUT

1шт.

6

53523D

REFLECTOR

1шт.

7

B50206

LAMP

(32 candle power, 6-8 volt) (Will work for 27369D)

1шт.

8

53527D

GASKET

1шт.

9

350478R1

LENS

(Will work for 53521D)

1шт.

10

53525DA

MOLDING

MOULDING

1шт.

11

79408H

TERINAL PLATE SPRING

1шт.

12

79407H

PLATE

TERMINAL PLATE

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, (Same as 37077D) Int Tooth, #8

2шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SLOTTED SCREW, no. 8-32 x 5/16" round head (Cadmium plated) (Same as 37536H)

2шт.

13

53524D

WIRE

1шт.

14

53526D

SCREW

MOULDING SCREW

1шт.

15

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Follows reference nos. 12 and 16 Int Tooth, #8

1шт.

16

37064D

TERMINAL CONNECTOR

TERMINAL PLATE (Order 68417D)

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, (Same as 37077D) Int Tooth, #8

2шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SLOTTED SCREW, no. 8-32 x 5/16" round head (Cadmium plated) (Same as 37536H)

2шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

68417D

INSULATOR

TERMINAL PLATE PACKAGE, complete (Will work for 37064D, 37067D, 79407H and 79408H)

1шт.

18

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

FOLLOWS REFERENCE NOS. 12 AND 16

1шт.
